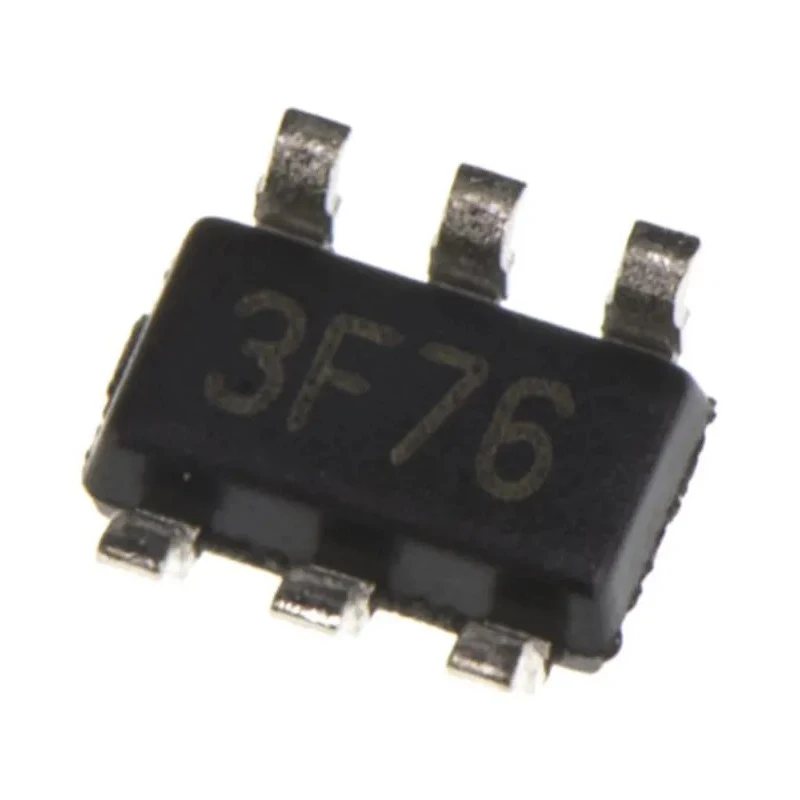

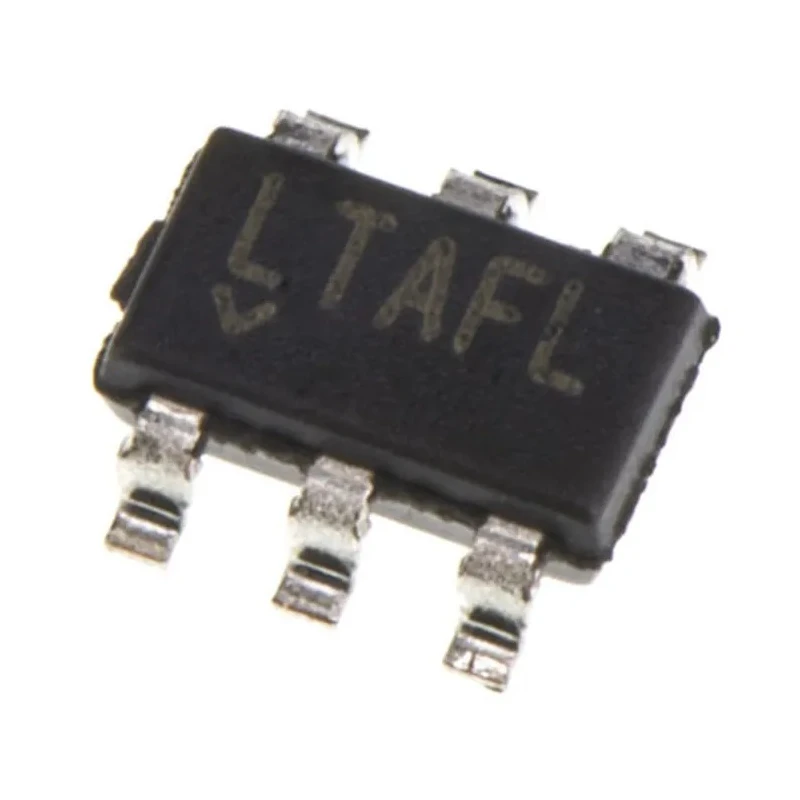

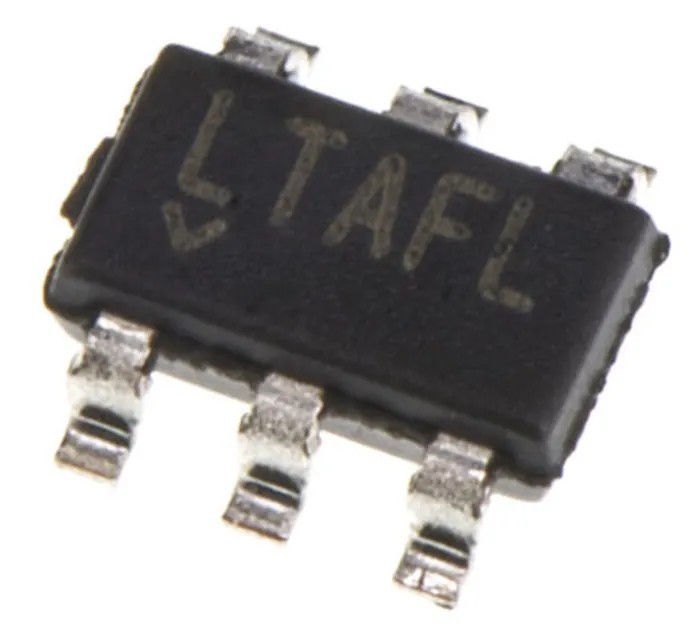

Monolithic Power Systems (MPS) LED Driver IC, 2.5V to 6V, 1.3A Output Current, 6-Pin TSOT-23 MP3202DJ-LF-P

Free Delivery in India | Lowest Global Shipping Charges

Monolithic Power Systems (MPS) LED Driver IC, 2.5V to 6V, 1.3A Output Current, 6-Pin TSOT-23 MP3202DJ-LF-P

Name: Monolithic Power Systems (MPS) LED Driver IC, 2.5V to 6V, 1.3A Output Current, 6-Pin TSOT-23 MP3202DJ-LF-P
Brand: Monolithic Power Systems (MPS)
SKU: 136650
Price: 2.89 USD
Availability: InStock



Category LED Driver IC Brand Monolithic Power Systems (MPS) Condition New

Specifications

Country of Origin	China
Brand	Monolithic Power Systems (MPS)
Length	2mm
Model	MP3202DJ-LF-P
Width	2mm
Mount Type	Through Hole
Series	MP3202
Output Current	1.3A
Maximum Operating Temperature	85°C
Package Type	TSOT-23
Minimum Operating Temperature	-40°C
Input Voltage	2.5, 6V
Maximum Output Voltage	28.5V
Number of Pins	6
Minimum Output Voltage	-0.5V
Dimming Operation	PWM

Key Features

Supports dimming operation using PWM control for precise brightness adjustment.
Compact 6-pin TSOT-23 package ensures easy through-hole mounting and space-saving PCB design.
Operates reliably within temperature range from -40°C to 85°C for industrial and commercial use.
Provides a maximum output voltage of 28.5V and a minimum output voltage of -0.5V for LED driving flexibility.
Ideal for applications in LED lighting components, displays, and optoelectronics.
Offers a small footprint with 2mm width and length for versatile circuit integration.

Product Description

Monolithic Power Systems (MPS) MP3202DJ-LF-P LED Driver IC delivers efficient and reliable LED backlighting control with input voltages ranging from 2.5V to 6V and output current capability of 1.3A. This 6-pin TSOT-23 package device enables through-hole mounting, making it suitable for various PCB designs requiring compact dimensions of 2mm by 2mm. The MP3202DJ-LF-P operates across a wide temperature range from -40°C to 85°C, ensuring stable performance in both industrial and commercial electronic lighting applications.

Equipped with PWM dimming operation, it allows precise brightness modulation essential for backlight LED drivers, ideal for displays and other LED lighting components. The device supports a maximum output voltage of 28.5V and a minimum output voltage of -0.5V, offering versatility when driving different LED configurations.

This LED driver IC is widely used in electronics components sectors including LED displays, lighting components, and optoelectronic devices, catering to applications such as industrial lighting, signage, and consumer electronic backlighting. Its compact size and robust operation make it an excellent choice for designers aiming to optimize power management and LED efficiency.

Supports PWM dimming for adjustable LED brightness. Compact 6-pin TSOT-23 package for space-saving PCB layouts. Wide operating temperature range suitable for industrial environments. High maximum output voltage of 28.5V for versatile LED driving.

Small footprint of 2mm width and length enhances design integration. Reliable performance ensured by Monolithic Power Systems manufacturing quality. Suitable for backlight LED driving in displays and lighting components.

For engineers and designers seeking reliable LED driver ICs, the MP3202DJ-LF-P provides a high-quality solution optimized for power efficiency and compact electronic assembly. Explore our broad selection of LED Driver ICs and components at EnvMart for your next technical project or production run.
