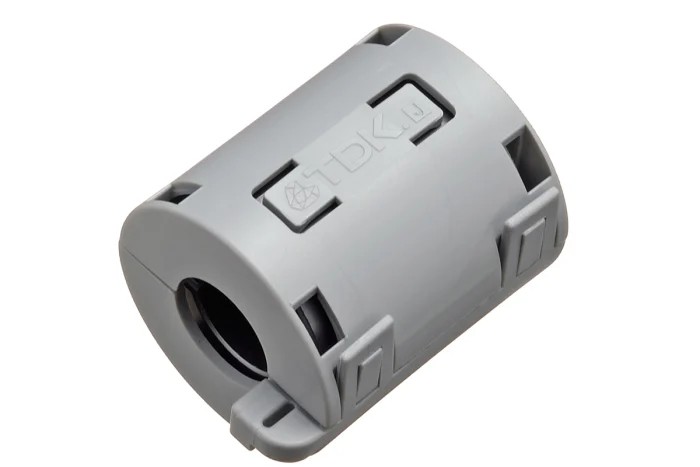

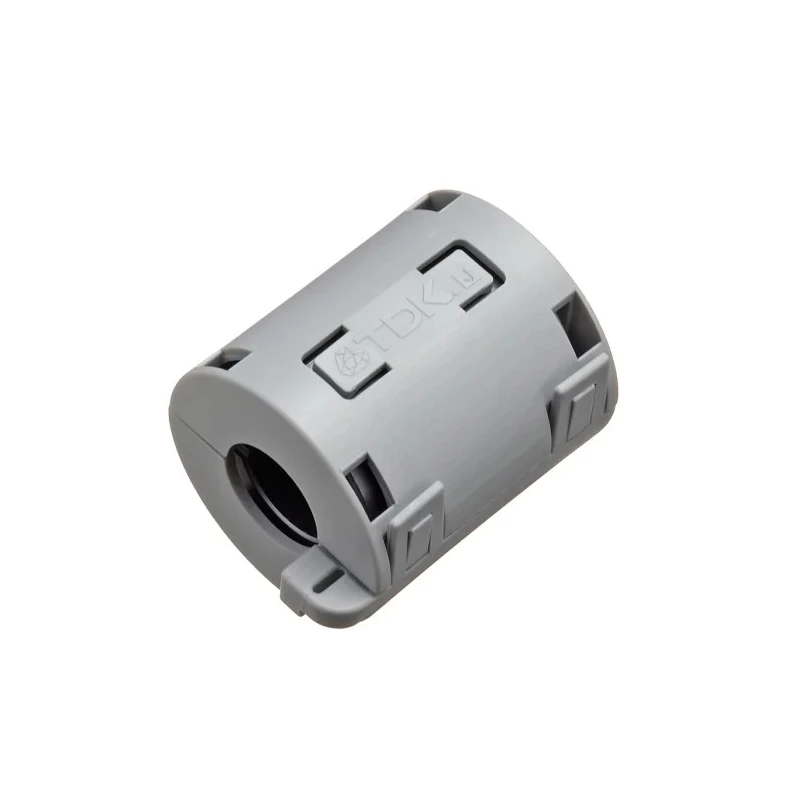

TDK Openable Diameter 13 mm Ferrite Clamp with 1 Aperture 39x30 mm ZCAT3035-1330-BK

Free Delivery in India | Lowest Global Shipping Charges

TDK Openable Diameter 13 mm Ferrite Clamp with 1 Aperture 39x30 mm ZCAT3035-1330-BK



Category Ferrite Sleeves Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Material	30 Material
Model	ZCAT3035-1330-BK
Series	ZCAT
Aperture diameter	13mm
Sub Type	Clamp Filter
External Width	30mm
External Height	39mm
Standards/Approvals	REACH, RoHS
Impedance at 100 MHz	150Ω
Impedance at 25 MHz	80Ω
Number of Apertures	1
TDK Openable, Diameter 13 mm Ferrite Clamp, Apertures	1 39 mm 30 mm

Key Features

The clamp is constructed with a unique plastic case for simple installation and a self-holding mechanism to prevent slippage on cables.
It offers high impedance values of 80Ω at 25 MHz and 150Ω at 100 MHz for effective high-frequency electromagnetic compatibility absorption.
The openable design facilitates easy assembly on cables already fitted with connectors without disassembly.
Suitable for use in a wide range of electronic equipment including personal computers, monitors, digital telephones, audio devices, and office machines.
Compact external dimensions of 39 mm height and 30 mm width ensure compatibility with various cable diameters.
Provides excellent attenuation of common mode noise without degrading signal quality.
Complies with REACH and RoHS standards ensuring environmental safety.
The clamp’s plastic housing protects ferrite core halves from breakage and secures the clamp firmly on the cable.

Product Description

The TDK ZCAT3035-1330-BK is an openable ferrite clamp designed for high-frequency electromagnetic interference suppression in cables with a 13 mm aperture diameter and overall external dimensions of 39 mm height by 30 mm width.

This clamp filter belongs to the ZCAT series featuring a durable plastic case that ensures simple and convenient installation around cables already fitted with connectors. The self-holding mechanism prevents any slippage, maintaining a stable position during operation.

Constructed with a ferrite core, the clamp provides excellent absorption of EMC at various frequencies, including impedances of 80Ω at 25 MHz and 150Ω at 100 MHz and above, making it highly effective against common mode disturbances without negatively impacting signal integrity.

The robust plastic housing safeguards the core halves from damage and facilitates easy assembly by allowing the clamp to snap firmly closed on cables. This feature is particularly useful in applications where cables cannot be easily disconnected.

Typical industrial and commercial uses include personal computers, monitors, digital telephone systems, audio devices, electronic musical instruments, video games, copiers, facsimiles, industrial controllers, medical equipment, and office machines, where EMI mitigation is critical.

The clamp complies with environmental standards REACH and RoHS, ensuring it meets current regulatory requirements for safety and chemical use. The plastic casing allows for a secure snap-fit installation on cables. High impedance performance ensures effective EMC noise reduction.

Openable design allows assembly on both new and existing cable installations. Compact size fits a range of cable diameters. Meets industry standards for environmental compliance. Protects sensitive electronic equipment from EMI disturbances.

Widely applicable in industrial, laboratory, medical, and commercial electronic systems. For detailed specifications and additional information, explore the Ferrite Sleeves category and related TDK products on EnvMart for comprehensive electronic component solutions.
