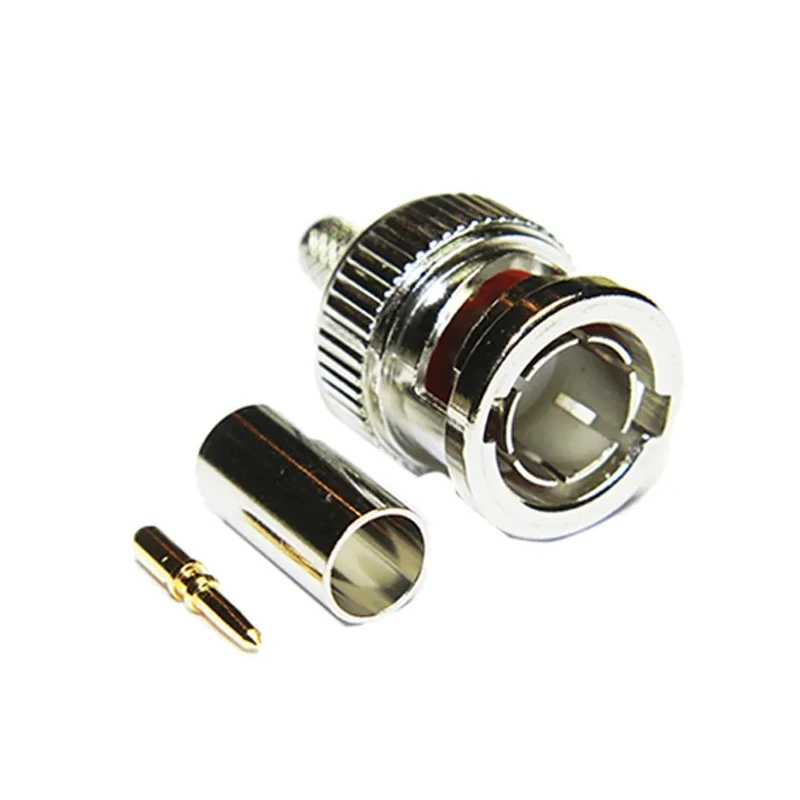

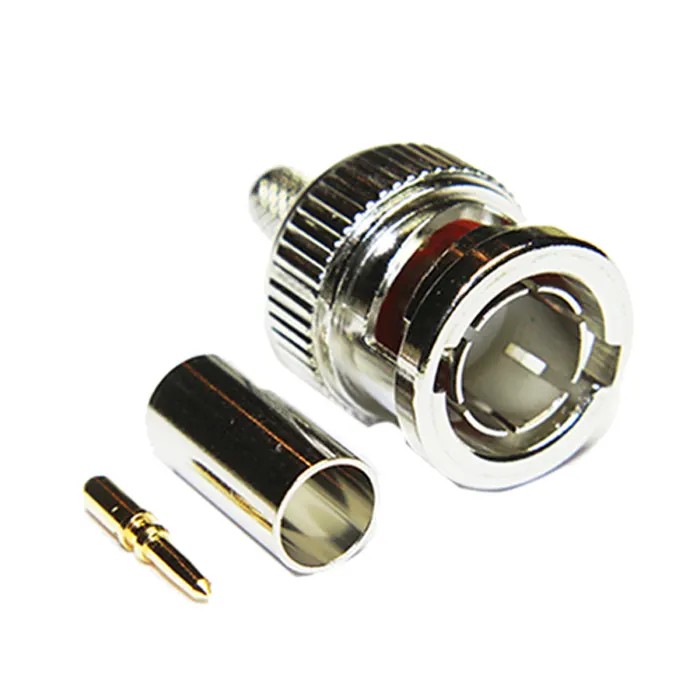

RS PRO BNC Series Coaxial Connector Cable Male BNC, 75 Ω, Straight Body Crimp 10-005-B36-FE
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 10-005-B36-FE |
| Mount Type | Cable |
| Operating Frequency | 4.5GHz |
| Contact Material | Brass |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| RS PRO Coaxial Connector Cable Male BNC, 75 Ω, Straight Body CrimpBrand | RS PRO |
Key Features
- The connector features a straight body with nickel plating for enhanced durability.
- It has a brass contact with gold plating for excellent conductivity.
- Designed for cable mount type with normal polarity and male connector gender.
- Operates in a temperature range from -55°C to 155°C, ensuring reliability in varied environments.
- Termination type is crimp, providing secure and stable connections.
- Meets standards SMPTE 292M and 424M version 1.1 for broadcast and telecom use.
- Typical applications include Ultra High Definition (4K) broadcast, telecom, instrumentation, and security systems.
- Manufactured in Taiwan, Province Of China with high quality machining.
Product Description
COAX Connectors brand's 10-005-B36-FE model is a BNC Series Coaxial Connector Cable Male BNC, featuring 75 Ω impedance and a straight body crimp design. This high definition BNC connector is constructed with a nickel-plated brass body and a gold-plated brass centre contact to ensure superior conductivity and resistance to corrosion.
This connector is engineered for high-frequency operation up to 4.5 GHz, suitable for demanding industrial, broadcast, telecommunications, and instrumentation applications. It operates reliably across a broad temperature range from -55°C to 155°C, making it versatile for multiple environments.
The termination type is crimp, facilitating secure cable attachment in applications requiring dependable signal integrity. The connector follows standards SMPTE 292M and 424M version 1.1, assuring compliance with industry broadcast technology requirements.
Typical use cases for the 10-005-B36-FE include Ultra High Definition (4K) video broadcast systems, telecom networks, instrumentation setups, and security systems where precision coaxial connectivity is critical.
The connector features a straight nickel-plated brass body for strength and durability. Gold-plated brass contacts ensure enhanced electrical performance and durability. Supports cable mount type with crimp termination for secure connections.
Male connector gender and normal polarity align with common industry standards. Operates effectively across a wide temperature range from -55°C to 155°C. Impedance is precisely 75 Ω, suitable for high-frequency signal transmission.
Manufactured in Taiwan, Province Of China under controlled quality standards.
This product is categorized under Electronics & Electricals > Electronics Components > Coaxial Connectors in the EnvMart catalog. It represents a reliable, durable solution for industrial and laboratory coaxial connection needs.
Explore the EnvMart collection for additional high-quality electronic connectors and components to support your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The impedance of this BNC connector is 75 Ω, making it suitable for high-frequency signal transmission.
This model operates effectively at a maximum frequency of 4.5 GHz, suitable for demanding applications.
It operates reliably across a temperature range from -55°C to 155°C, ensuring functionality in varied environments.
The connector features a crimp termination type, facilitating secure cable attachment for dependable signal integrity.
The connector has a nickel-plated brass body and gold-plated brass contacts, ensuring superior conductivity and corrosion resistance.
It meets the standards SMPTE 292M and 424M version 1.1, ensuring compliance with industry broadcast technology requirements.
This model features a male connector gender, aligning with common industry standards.
The orientation of this connector is straight, designed for cable mount applications.
This connector is manufactured in Taiwan, Province Of China under controlled quality standards.
Typical applications include Ultra High Definition (4K) broadcast, telecom networks, instrumentation setups, and security systems.
The contact material used in this connector is brass, providing excellent conductivity.
The body plating of this connector is nickel, enhancing its durability and resistance to wear.
