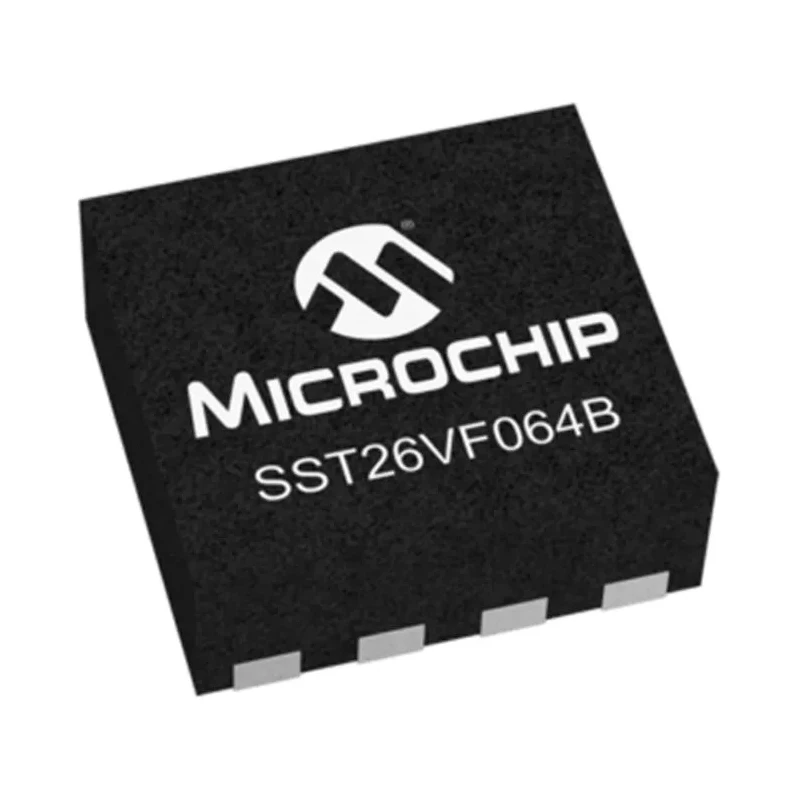

Microchip Split Gate 64 MB SPI Flash Memory 8-Pin WDFN Interface 104MHz SST26VF064B-104I/MN

Microchip SST26VF064B-104I/MN is a high-performance Split Gate 64 MB SPI Flash Memory IC packaged in an 8-pin WDFN surface mount configuration. It supports a maximum clock frequency of 104 MHz, enabling fast and efficient data communication via a Serial Peripheral Interface (SPI) with x1/x2/x4 protocol compatibility.

This device leverages Microchip's SuperFlash® technology offering excellent erase times with sector and block erase typically completed in 18 ms and a full chip erase in 35 ms. The memory has an organisation of 8M x 8 bits and operates on a supply voltage from 2.7 V to 3.6 V, suitable for various embedded systems.

Designed to meet the automotive AEC-Q100 standard, the SST26VF064B-104I/MN ensures reliability under extreme conditions with an operating temperature range from -40°C to 85°C. Its compact dimensions (8 mm width, 6 mm length, and 800 μm height) make it well-suited for space-constrained applications.

The device features low power consumption, including a typical active read current of 15 mA at the highest clock frequency and ultra-low standby current of 15 μA, optimizing power efficiency.

Additional specifications include a maximum random access time of 8 ns, enabling low-latency execute-in-place capability, which minimizes the need for processor buffer memory.

Typical applications for this flash memory chip include automotive electronics, industrial controls, communication systems, and embedded devices requiring durable and fast non-volatile storage.

This flash memory uses a Serial Peripheral Interface (SPI) compatible with x1/x2/x4 SPI protocols. Features low power consumption with active read current at 15 mA typical and standby current at 15 μA. Supports up to 8 M x 8 bit organisation with 64 MB memory size suitable for embedded applications.

Operates in a temperature range from -40°C to 85°C, ideal for automotive and industrial use. Compact 8-pin WDFN surface mount package measuring 8 mm by 6 mm and 800 μm height. Provides fast erase times with sector/block erase in 18 ms and full chip erase in 35 ms typical.

Includes automotive AEC-Q100 standard compliance for reliability in automotive applications. Supply voltage ranges from 2.7 V to 3.6 V ensuring compatibility with standard embedded systems. Maximum random access time is 8 ns ensuring quick data retrieval and execution-in-place capability.

Designed for use in industrial, automotive, communication, and embedded systems requiring reliable non-volatile storage. Explore more Microchip semiconductor components and Flash Memory solutions suited for advanced industrial and automotive applications on EnvMart.
