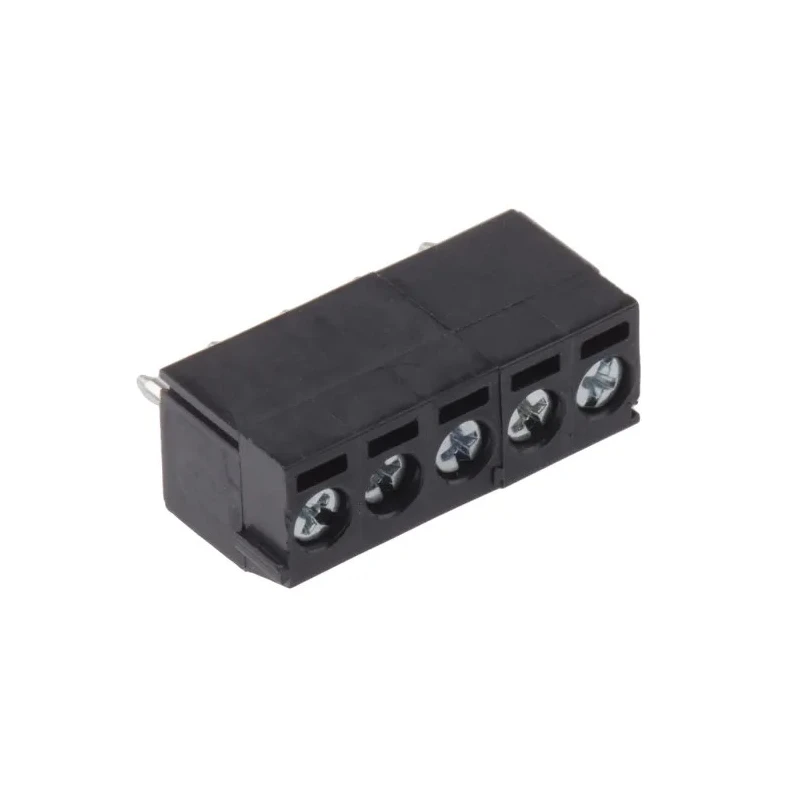

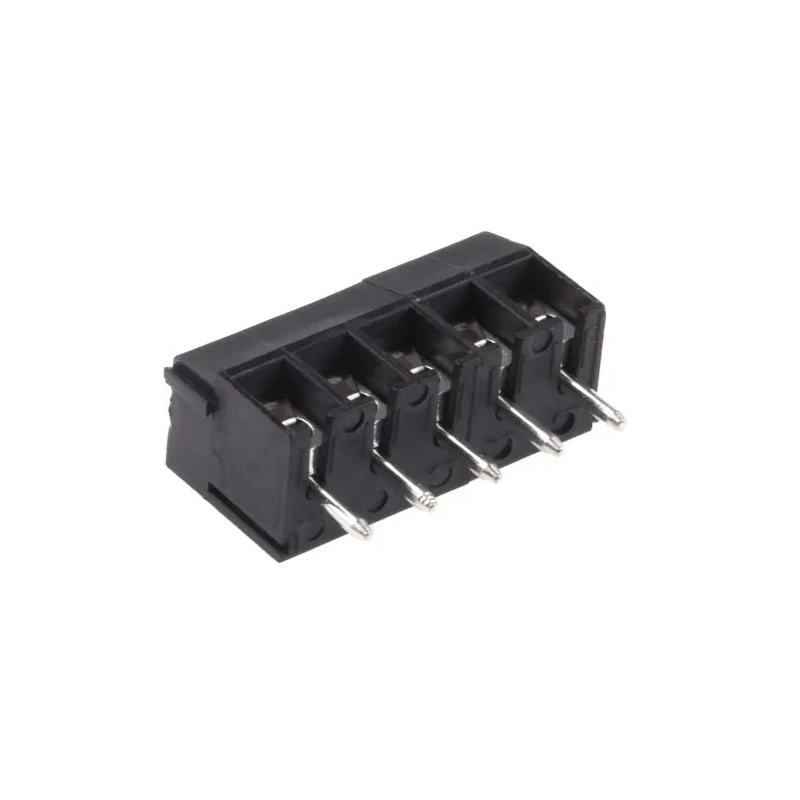

RS PRO PCB Terminal Block 5-Contact 3.5 mm Pitch 1 Row 300V Screw Connection Polyamide Housing 897-1348

Free Delivery in India | Lowest Global Shipping Charges

RS PRO PCB Terminal Block 5-Contact 3.5 mm Pitch 1 Row 300V Screw Connection Polyamide Housing 897-1348

Name: RS PRO PCB Terminal Block 5-Contact 3.5 mm Pitch 1 Row 300V Screw Connection Polyamide Housing 897-1348
Brand: RS PRO
SKU: 135939



Category Pluggable Terminal Blocks Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	300V
Brand	RS PRO
Colour	Black
Orientation	Straight
Current	10A
Length	10.5mm
Model	897-1348
Depth	8.5mm
Width	7mm
Housing Material	Polyamide
Series	RS PRO
Number of Rows	1
Pitch	3.5mm
Number of Contacts	5
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.8mm²
Minimum Wire Size AWG	18AWG
Maximum Wire Size AWG	24AWG
Wire Connection Method	Screw

Key Features

The terminal block features an ultra low profile design with 8.5 mm height for compact PCB mounting.
It supports a rated voltage of 300V and a maximum current capacity of 10A.
Constructed with black polyamide housing and stainless steel wire protector for durability and flame retardance.
Wire connection employs screw terminals with a double interlock method enhancing mechanical strength.
Suitable for wire sizes ranging from 0.2 mm² to 0.8 mm² (18 to 24 AWG).
Designed with guided pin alignment and anti-solder wicking terminals to facilitate secure mounting and soldering.
Compact dimensions measure 10.5 mm length, 7 mm width, and 8.5 mm depth.
Ideal for use in industrial, electronic, and electrical equipment applications requiring robust PCB terminal connectivity.

Product Description

RS PRO 897-1348 PCB Terminal Block is a compact and reliable 5-contact pluggable terminal block featuring a 3.5 mm pitch and a single-row configuration. The terminal block operates safely at 300V voltage and 10A current, suitable for use in various industrial and electronic applications.

The housing is manufactured from UL94-V0 flame retardant black polyamide, providing excellent resistance to heat and electrical insulation. Stainless steel wire protectors and M2 steel zinc-plated captive screws are incorporated for enhanced durability and corrosion resistance.

The screw terminal connection method utilizes a double interlock design that ensures superior mechanical strength and stability during operation. It accommodates wire sizes from 0.2 mm² (18 AWG) up to 0.8 mm² (24 AWG), providing flexible wiring options. The guided pin alignment aids in precise installation on printed circuit boards, while anti-solder wicking terminals prevent solder flow during wave soldering processes.

The compact dimensions (length: 10.5 mm, width: 7 mm, depth: 8.5 mm) enable space-saving layouts, especially in high-density PCB assemblies. This 3.5 mm ultra low profile terminal block is ideal for applications in industrial machinery, automation controls, instrumentation, and power equipment, where secure and durable electrical connections are critical.

The terminal block provides a robust and compact solution for PCB electrical connections. Flame retardant polyamide housing ensures safety and durability in various environments. Double interlock screw terminal connection offers enhanced mechanical stability.

Supports a broad range of wire sizes from 0.2 mm² to 0.8 mm². Anti-solder wicking terminals facilitate high-quality solder joints without contamination. Guided pin alignment assures precise and easy PCB mounting. Designed for applications in industrial, electronic, electrical, and automation equipment.

This product is part of the RS PRO series, known for quality and reliability in electrical components. Choose RS PRO 897-1348 PCB Terminal Block for your PCB connector needs to ensure secure and efficient terminal connectivity in your projects.
