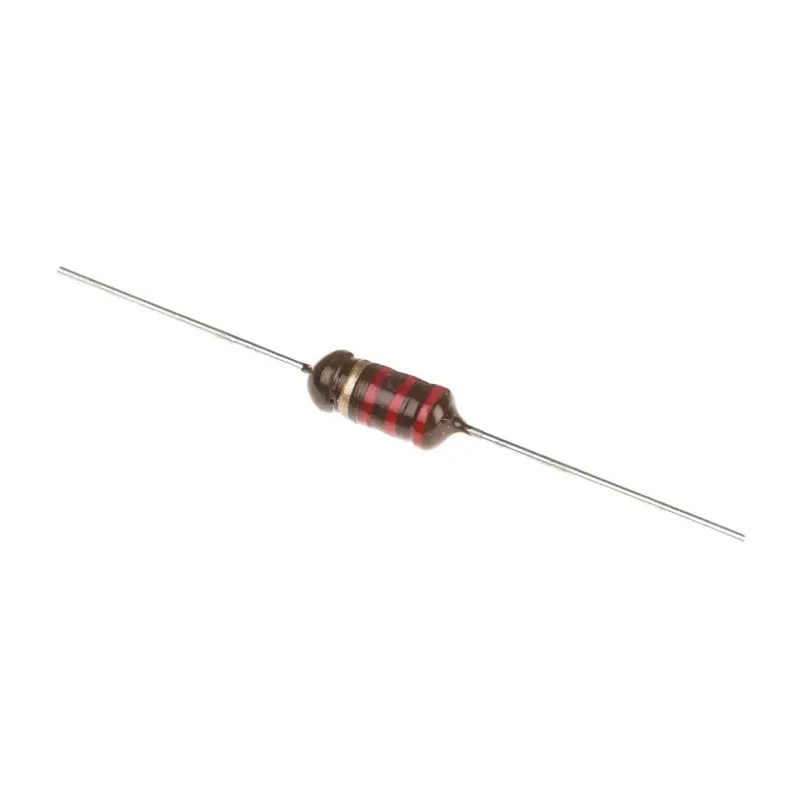

TDK 2.2 mH Ferrite Leaded Inductor Axial Mount Type Max SRF 800 kHz Q60 120 mA Idc 9 Ω Rdc LBC B82144A2225J000

Free Delivery in India | Lowest Global Shipping Charges

TDK 2.2 mH Ferrite Leaded Inductor Axial Mount Type Max SRF 800 kHz Q60 120 mA Idc 9 Ω Rdc LBC B82144A2225J000



Category Leaded Inductors Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	5.2mm
Brand	TDK
Height	5.2mm
Length	12mm
Model	B82144A2225J000
Depth	5.2mm
Packaging	Ammo Pack
Mount Type	Axial
Series	LBC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Test Frequency	0.25MHz
Core Material	Ferrite
Inductance	2.2mH
Standards/Approvals	IEC, RoHS
Maximum DC Current	120mA
Maximum DC Resistance	9Ω
Inductance Tolerance	±5 %
Termination Style	Axial
Maximum Self Resonant Frequency	800kHz
Minimum Quality Factor	60
Lead Pitch	15mm
Lead Diameter	0.8mm
TDK 2.2 mH Ferrite Leaded Inductor, Max SRF	800 kHz, Q:60, 120 mA Idc, 9 Ω Rdc, LBC

Key Features

Inductor features a ferrite core with a maximum self resonant frequency of 800 kHz.
Rated maximum DC current of 120 mA and DC resistance of 9 ohms.
Axial termination style with a lead diameter of 0.8 mm and lead pitch of 15 mm.
Operating temperature range from -55°C to 125°C suitable for harsh environments.
Compact dimensions with diameter, height, and depth each measuring 5.2 mm.
High quality factor (Q) of 60 ensuring low energy losses.
Complies with IEC and RoHS standards ensuring quality and environmental safety.
Packaging in ammo pack format for easy handling and insertion in manufacturing.

Product Description

TDK B82144A2225J000 ferrite leaded inductor with 2.2 mH inductance is designed for telecommunications, automotive electronics, energy saving lamps, and entertainment electronics. This axial mount inductor is optimized for RF blocking, filtering, and interference suppression with a maximum self resonant frequency of 800 kHz and high Q factor of 60.

The inductor incorporates a large ferrite drum core wound with enamel copper wire and coated with flame retardant lacquer to ensure durability and safe operation over a wide temperature range from -55°C to 125°C. It supports a maximum DC current of 120 mA with low DC resistance of 9 ohms, which contributes to efficient electrical performance.

This component has compact axial dimensions, including 5.2 mm diameter and height and a 15 mm lead pitch with 0.8 mm lead diameter terminals electroplated with nickel and pure tin for excellent solderability. Its compliance with IEC and RoHS standards guarantees quality and environmental compliance.

The packaging in ammo pack format allows for streamlined integration in automated assembly lines, improving production efficiency in industrial, telecommunications, automotive manufacturing, and electronics applications.

Inductor features a ferrite core with a maximum self resonant frequency of 800 kHz. Rated maximum DC current of 120 mA and DC resistance of 9 ohms. Axial termination style with a lead diameter of 0.8 mm and lead pitch of 15 mm.

Operating temperature range from -55°C to 125°C suitable for harsh environments. Compact dimensions with diameter, height, and depth each measuring 5.2 mm. High quality factor (Q) of 60 ensuring low energy losses. Complies with IEC and RoHS standards ensuring quality and environmental safety.

Packaging in ammo pack format for easy handling and insertion in manufacturing. Explore more Leaded Inductors and passive components for your electronics projects and industrial applications at EnvMart.
