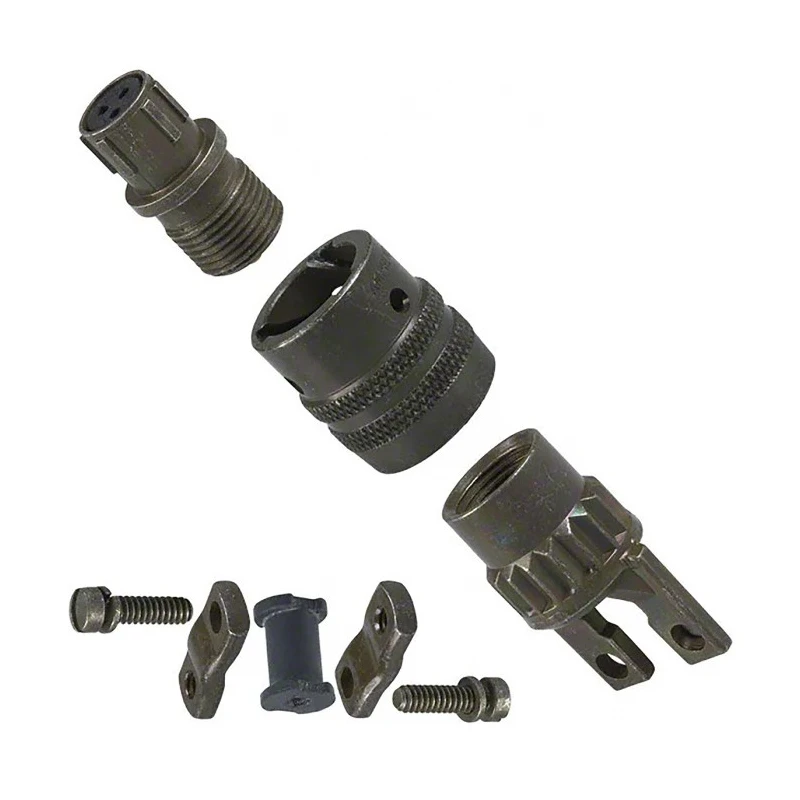

Amphenol Socapex MIL Spec Circular Connector, Copper Alloy Straight 12 Way Cable, 1kV AC, Aluminium Shell PT06E-14-12S(SR)
Specifications
| Country of Origin | accordance with MIL-DTL- |
|---|---|
| Voltage | 1kV ac |
| Brand | Amphenol Socapex |
| Colour | Green |
| Orientation | Straight |
| Model | PT06E-14-12S(SR) |
| Mount Type | Cable |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | PT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector Gender | Male |
| Shell Size | 14 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Connector Size | Miniature |
| Shell Plating | Cadmium |
Key Features
- This connector supports a voltage rating of 1kV AC ensuring reliable electrical performance.
- The aluminium shell with cadmium plating provides strong mechanical protection and corrosion resistance.
- Featuring a bayonet coupling mechanism, it allows quick connect and disconnect operations.
- The connector size is miniature with shell size 14 to suit compact applications.
- It operates reliably within a wide temperature range from -55°C to 125°C.
- Contact materials are copper alloy plated with gold for optimal conductivity and durability.
- The connector termination type is solder, ensuring secure contact connections.
- Strain relief is integrated to protect cable integrity during use.
Product Description
Amphenol Socapex PT06E-14-12S(SR) Mil Spec Circular Connector is a specialized copper alloy straight cable connector designed for demanding industrial, military, and aerospace applications requiring reliable power and signal transmission.
The connector features a robust aluminium shell with a cadmium plating finish providing excellent mechanical strength and corrosion resistance. The bayonet coupling system enables quick and secure mating with compatible components compliant with MIL-DTL-26482 standards.
With 12 female contacts arranged in a miniature shell size 14, this connector efficiently manages multiple circuits in a compact footprint. Its copper alloy contacts with gold plating ensure superior electrical conductivity and long-term durability even under harsh environmental conditions.
Designed for cable mounting, the solder termination method guarantees a secure electrical connection while integrated strain relief protects the cable assembly from mechanical stress and potential damage during operation.
This connector operates safely over a temperature range from -55°C to 125°C, suitable for extreme environments often encountered in military and industrial equipment.
Amphenol's PT series connectors are manufactured to meet MIL-DTL-26482 Series 1 specifications, providing interchangeability with other similar military circular connectors commonly used in electronic components, power supply systems, and communication devices.
This PT06E-14-12S(SR) connector offers high voltage tolerance of 1kV AC for multipurpose industrial and military electronic applications. The combination of aluminium shell, gold-plated copper alloy contacts, and cadmium plating ensures reliable performance against corrosion and wear.
The bayonet coupling mechanism allows swift and secure mating and unmating, enhancing maintenance efficiency. Its miniature size with 12 contacts in shell size 14 makes it ideal for compact, high-density wiring needs. Strain relief and solder termination maintain cable integrity and strong electrical connections.
Ideal for use in industrial electronics, aerospace, military communication equipment, and power connectors where reliability and durability are crucial. Explore a broad range of Amphenol circular connectors and accessories available for varied industrial and military applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a voltage rating of 1kV AC, ensuring reliable electrical performance.
It operates reliably within a temperature range from -55°C to 125°C, suitable for extreme environments.
This connector features 12 female contacts arranged in a miniature shell size 14.
The connector uses a solder termination type, ensuring secure contact connections.
The housing is made of aluminium with cadmium plating, and the contacts are copper alloy plated with gold for optimal conductivity.
It features a bayonet coupling mechanism, allowing for quick and secure mating and unmating operations.
Yes, it is manufactured to meet MIL-DTL-26482 Series 1 specifications, ensuring interchangeability with similar military connectors.
The shell size of this model is 14, designed for compact applications.
The connector is green in color.
The orientation of this connector is straight.
It is ideal for use in industrial electronics, aerospace, military communication equipment, and power connectors.
Yes, it includes integrated strain relief to protect cable integrity during use.
