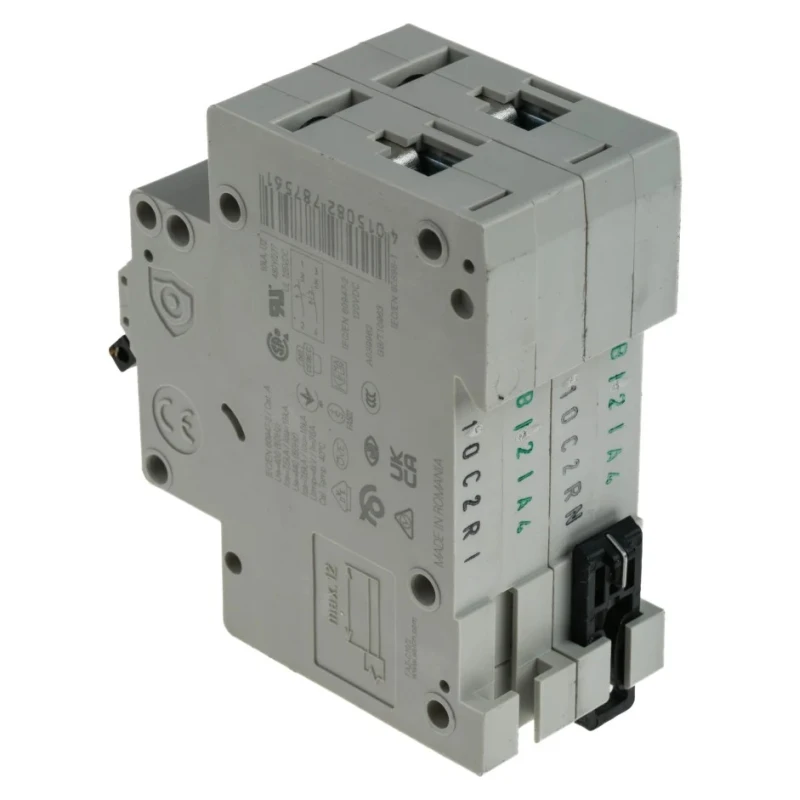

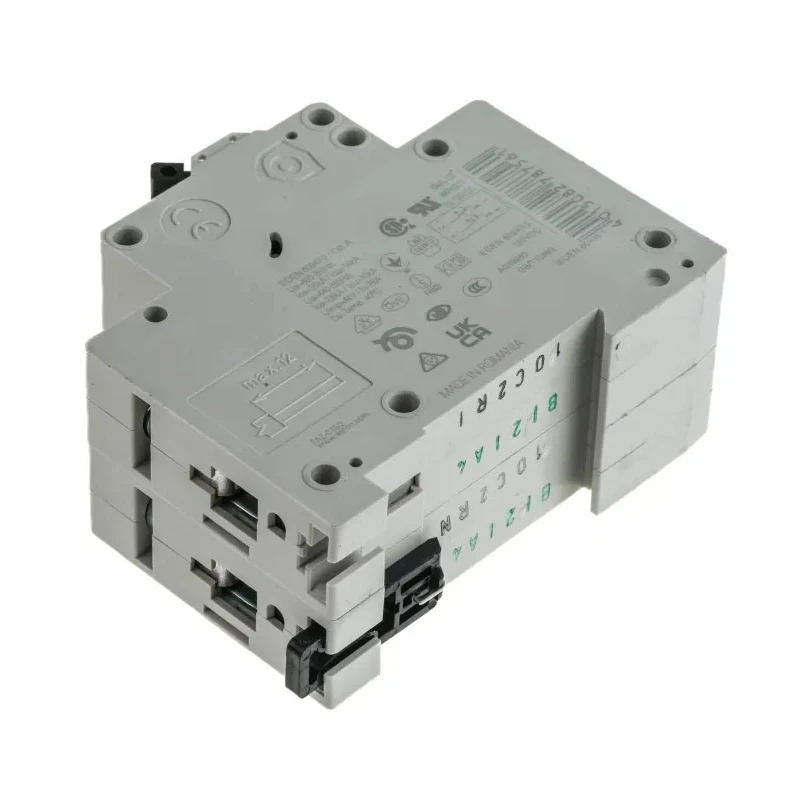

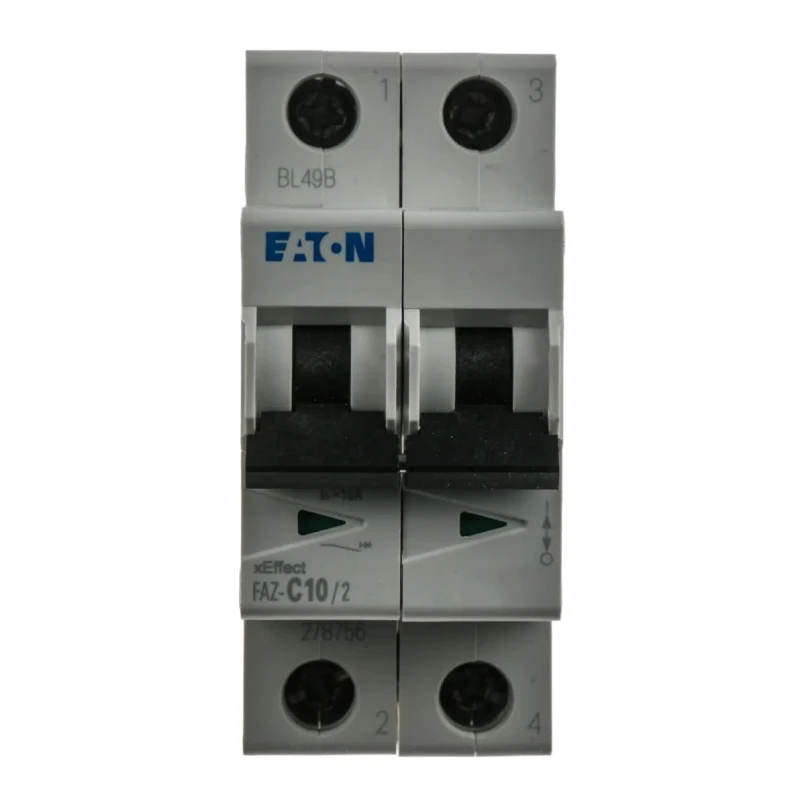

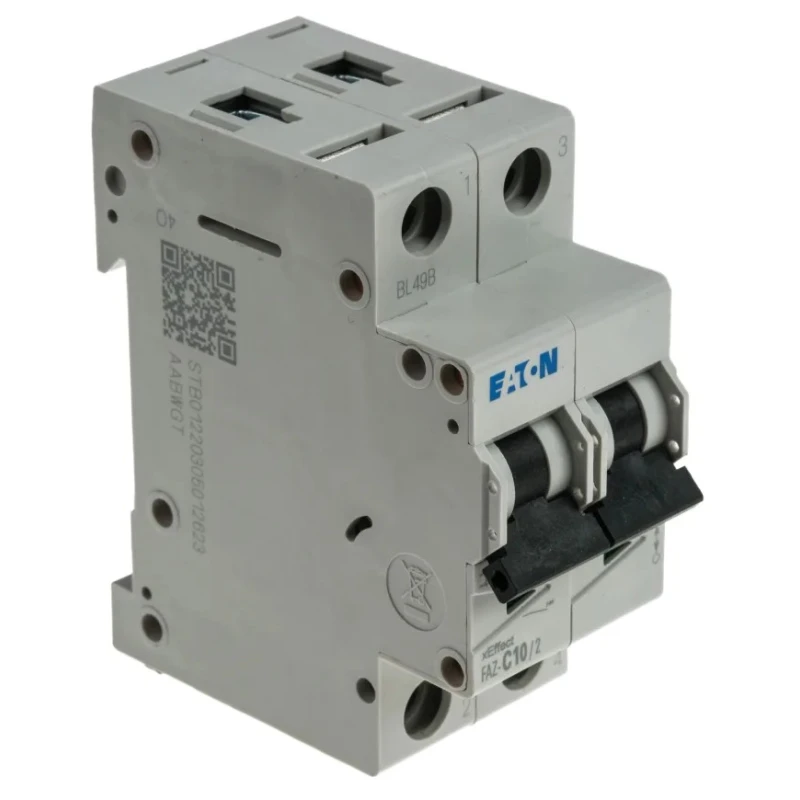

RS PRO xEffect Miniature Circuit Breaker, 2 Pole, 10 A, Type C, 415 V AC, 10 kA Breaking Capacity FAZ-C10/2 278756 FAZ-C10/2

The Eaton FAZ-C10/2 xEffect Miniature Circuit Breaker is a 2-pole electrical protection device rated at 10 amperes, designed for safe operation at 415 volts AC. This Type C MCB offers thermal-magnetic overload and short-circuit protection for commercial and industrial electrical installations.

With an instantaneous tripping mechanism at 5 to 10 times the rated current, it effectively safeguards circuits with moderate surge requirements such as induction motors and fluorescent lighting systems. The device features a compact form factor with dimensions of approximately 36 mm length, 84.7 mm width, and 72.6 mm depth, suitable for tight panel spaces.

The circuit breaker mounts securely on a DIN rail and uses a toggle switch to enable easy resetting and clear indication of its ON/OFF status. Its robust design includes a 10 kA breaking capacity, ensuring reliable interruption of high fault currents to protect both personnel and equipment.

Manufactured as part of Eaton's xEffect FAZ series, this MCB ensures fast short-circuit interruption and high electrical endurance. Its thermal magnetic release offers dual protection offering a trip-free mechanism preventing handle manipulation for added safety. The twin-purpose terminal facilitates wiring flexibility during installation.

Provides thermal-magnetic overload and short-circuit protection. Designed for commercial and industrial application with 10 A rating. Type C characteristic allows response to moderate inrush currents. Compact DIN rail-mounted form factor saves panel space.

10 kA breaking capacity for effective fault current interruption. Toggle switch with clear contact position indication. IP20 rated for protection against foreign solid objects. Trip-free mechanism prevents handle bypass for safety.

Twin-purpose terminal enables versatile wiring.

This MCB is ideal for protecting electrical circuits in industrial automation, commercial buildings, and control panels. Eaton's xEffect FAZ series sets industry-standard performance for electrical protection devices, ensuring safety, reliability, and ease of maintenance.
