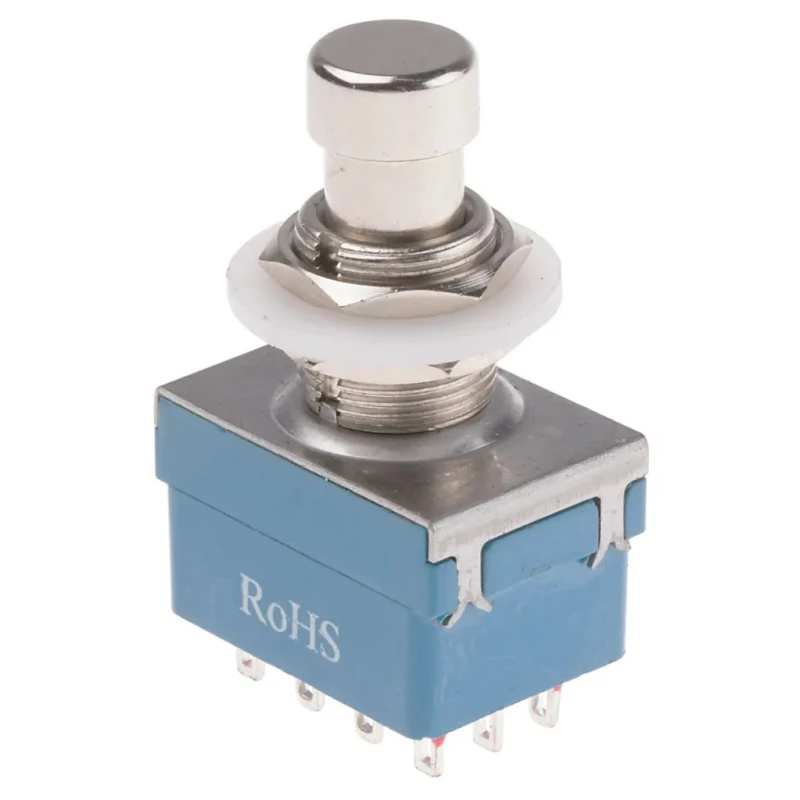

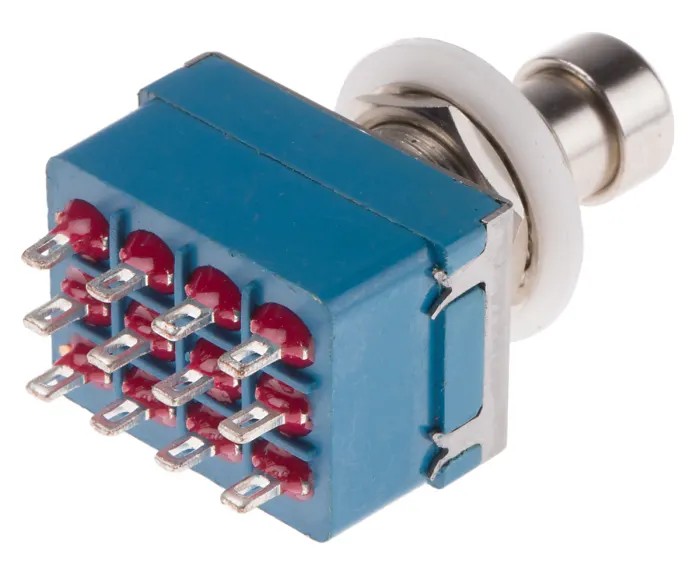

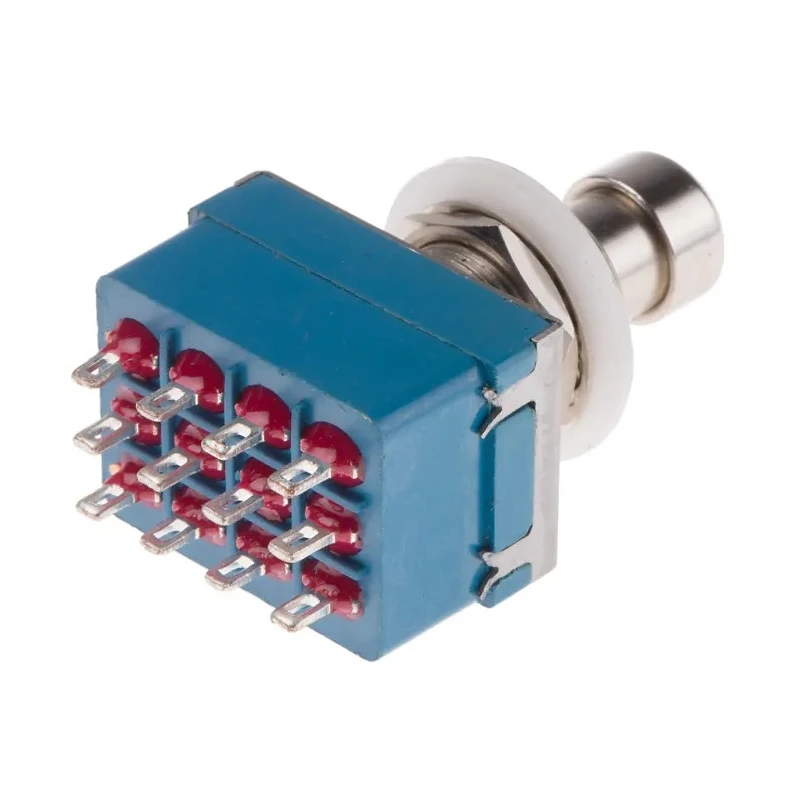

RS PRO Push Button Switch Latching PCB 12.2 mm Cutout 4PDT 24 V dc 250 V ac 846-6748
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 846-6748 |
| Mount Type | PCB |
| Contact Configuration | 4PDT |
| Contact Rating | 2 A @ 250 V ac / 24 V dc |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 12.2 mm |
| Terminal type | Solder Lug |
| Standards/Approvals | RoHS |
| Switch Operation | Latching |
| Actuator Colour | Blue |
| Contact DC Voltage | 24V dc |
| Actuator Style | Plunger |
| Switch Contact Current | 2, 4A |
| Contact AC Voltage | 250V ac |
Key Features
- The actuator color is blue, offering clear identification.
- This switch operates in a latching mode suitable for stable on/off control.
- It supports a contact DC voltage of 24 V dc and an AC voltage up to 250 V ac.
- Terminals are designed for solder lug connections ensuring secure PCB attachment.
- The actuator style is plunger, providing tactile feedback during operation.
- The switch is RoHS compliant, ensuring environmentally responsible manufacturing.
- Operating temperature range reaches down to -20°C for reliable performance in various conditions.
- Contacts are rated for 2 A current, adequate for small to medium electrical loads.
Product Description
RS PRO 846-6748 is a high-quality push button switch engineered for PCB mounting applications requiring a precise 12.2 mm cutout. Featuring a latching switch operation with a blue plunger actuator, this switch delivers reliable feedback and stable switching states. The generous 4PDT (four-pole double-throw) contact configuration facilitates complex switching circuits, making it suitable for industrial automation, electrical control panels, and instrumentation.
The switch supports a contact voltage rating of 24 V dc and 250 V ac, accommodating a variety of control voltages. Solder lug terminals provide a robust mechanical and electrical connection to printed circuit boards, enhancing durability during device operation and servicing.
Designed with environmental standards in mind, this switch complies with RoHS restrictions to minimize hazardous substances. Its minimum operating temperature of -20°C ensures reliability in challenging ambient conditions, enhancing performance in industrial, laboratory, and commercial settings.
Typical applications include machine control interfaces, automation system inputs, and bespoke electrical circuits requiring a tactile and secure push button mechanism. The compact 12.2 mm panel cutout size allows integration into densely populated equipment panels without sacrificing accessibility.
The blue actuator color offers visual indication for user interface differentiation. Latching functionality provides stable on/off switching behavior without continued pressure. 4PDT contact configuration enables multiple switching paths simultaneously.
Solder lug terminals ensure secure and reliable PCB connections. Wide voltage ratings suitable for DC and AC control circuits. The plunger actuator style allows easy and repeatable operation. Conforms to RoHS directives to limit environmental impact.
Performance guaranteed down to -20°C operating temperature.
RS PRO Push Button Switches are ideal for a broad range of industrial, electrical, and automation projects demanding reliable switch performance and quality. Explore the extensive RS PRO range on EnvMart for full product selection and technical support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 4PDT (four-pole double-throw) contact configuration, allowing for complex switching circuits.
It supports a contact voltage rating of 24 V dc and an AC voltage of up to 250 V ac.
The minimum operating temperature is -20°C, ensuring reliable performance in various environmental conditions.
The switch is equipped with solder lug terminals, providing a robust mechanical and electrical connection to printed circuit boards.
It features a plunger actuator style, which provides tactile feedback during operation.
The required panel cutout size for this switch is 12.2 mm.
The contact rating is 2 A at 250 V ac and 24 V dc, suitable for small to medium electrical loads.
Yes, this switch complies with RoHS directives, ensuring it is manufactured with environmentally responsible practices.
Typical applications include machine control interfaces, automation system inputs, and bespoke electrical circuits.
The latching operation allows for stable on/off control without the need for continued pressure on the actuator.
The country of origin for this switch is Taiwan.
The contacts are rated for a current of 2 A, accommodating various control applications.
