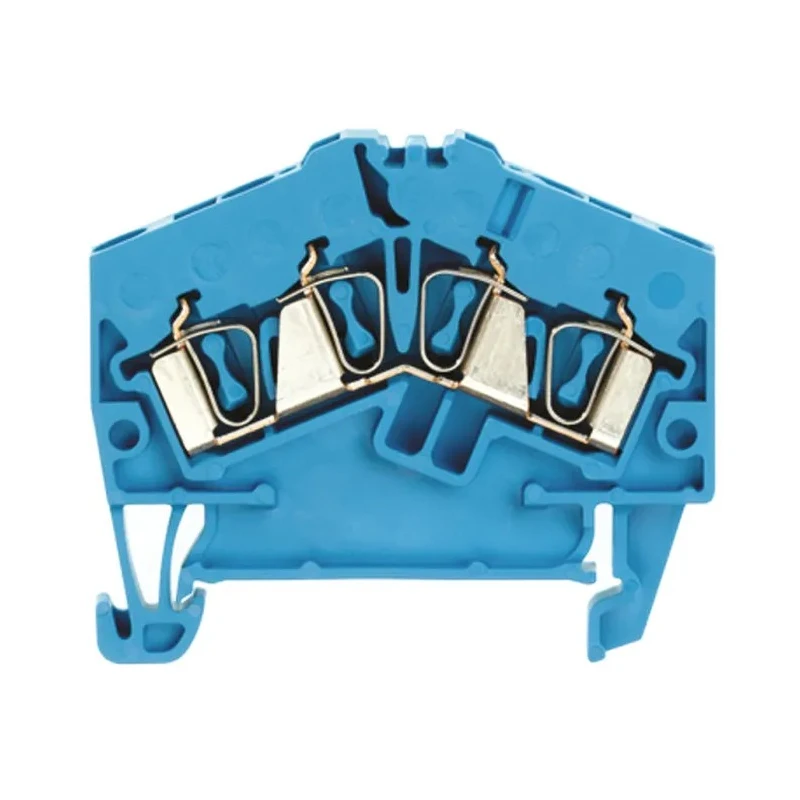

Weidmüller Z Series Feed Through Terminal Block Blue, 2.5mm² Cable CSA, 1-Level Clamp 1706070000
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 800V |
| Brand | Weidmüller |
| Colour | Blue |
| Series | Z |
| Termination Type | Clamp |
| Maximum Operating Temperature | 120°C |
| Number of Levels | 1 |
| Minimum Operating Temperature | -50°C |
| Pitch | 5.1mm |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 2.5mm² |
| Terminal Block Current | 24A |
Key Features
- Designed for 800V voltage rating and up to 24A current capacity.
- Accepts wire sizes from 26 AWG to 12 AWG for flexible connectivity.
- Equipped with tension clamp technology ensuring reliable electrical connection.
- Supports operation in temperature range from -50°C to 120°C.
- Compact 5.1mm pitch for space-efficient DIN rail mounting.
- Modular design allows cross-connection within the Z-Series and other Weidmüller terminals.
- Available in multiple tier configurations, here offered as single-level terminal.
- Integral test point and wide clamping range for industrial and electrical applications.
Product Description
Weidmüller 1706070000 Z Series Feed Through Terminal Block provides a blue-colored, single-level clamp connection terminal ideally suited for industrial, electrical, and manufacturing applications requiring robust electrical distribution.
This DIN rail terminal block supports cables with a cross sectional area of 2.5mm² and wire sizes ranging from 26 AWG up to 12 AWG, delivering current up to 24 amps at a voltage rating of 800 volts. The compact 5.1mm pitch allows efficient panel space utilization.
Featuring advanced tension clamp technology, it ensures a reliable, vibration-resistant connection with an integral test point allowing easy maintenance and testing. The wide clamping range permits accommodating single or double cross-connection channels, enhancing flexibility in system wiring.
Designed to operate in harsh environments, it tolerates a broad temperature range from -50°C to 120°C, making it suitable for a variety of electrical power distribution and control panels.
The modular design enables combining with other Z-Series and Weidmüller modular terminals for scalable and versatile electrical setups in industrial, manufacturing, water treatment, and power supply sectors.
Designed for 800V voltage rating and up to 24A current capacity. Accepts wire sizes from 26 AWG to 12 AWG with tension clamp termination. Single-level terminal with compact 5.1mm pitch. Wide clamping range supports one or two cross-connection channels.
Operating temperature range from -50°C to 120°C. Integral test point facilitates easy electrical testing and troubleshooting. Modular and scalable for various industrial electrical applications. Set contains one feed through terminal block meeting rigorous industrial and electrical standards, made in the Czech Republic by Weidmüller.
Explore more terminal block solutions and electrical components on EnvMart for your industrial and commercial projects.
Explore more products in our DIN Rail Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block has a voltage rating of 800V.
It supports a maximum current capacity of 24A.
This model accepts wire sizes ranging from 26 AWG to 12 AWG.
It operates within a temperature range of -50°C to 120°C.
The terminal block features a compact pitch of 5.1mm.
It utilizes a clamp termination type for secure connections.
Yes, it supports a wide clamping range that allows for one or two cross-connection channels.
Yes, it is designed to operate in harsh environments with its broad temperature tolerance.
The terminal block is manufactured in the Czech Republic.
It is suitable for various industrial, electrical, and manufacturing applications.
This model is a single-level terminal block.
Yes, it features an integral test point for easy electrical testing and troubleshooting.
