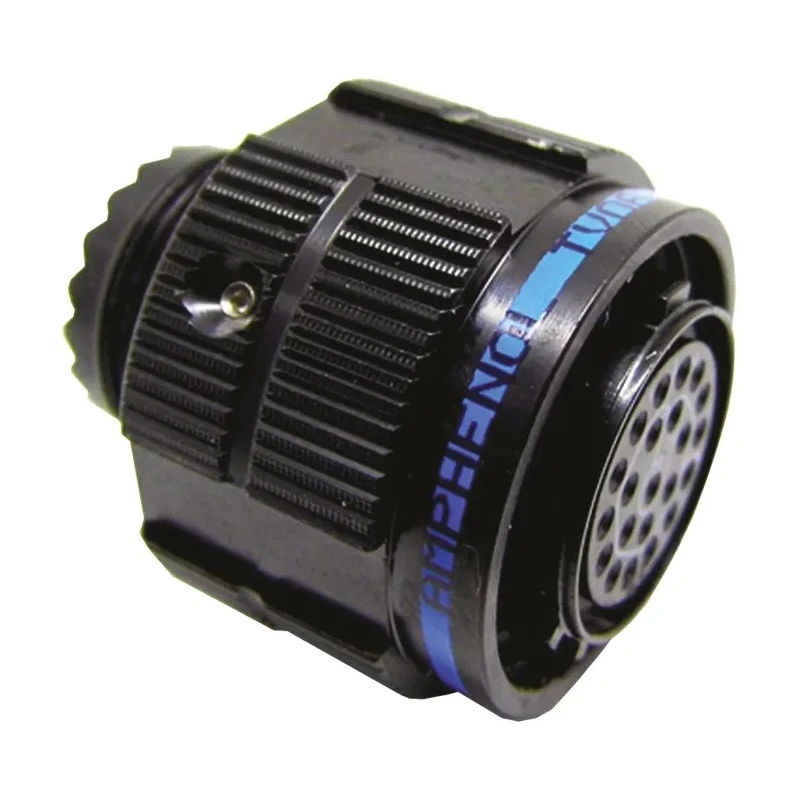

Amphenol Limited MIL Spec Circular Connector, Copper Alloy, Straight 3 Contacts, Black Zinc Nickel Plating TV06ZN-09-98SN
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600, 850V ac |
| Brand | Amphenol Limited |
| Colour | Black |
| Orientation | Straight |
| Current | 7.5A |
| Model | TV06ZN-09-98SN |
| Mount Type | Cable |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | TV |
| Termination Type | Solder |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Connector Gender | Male |
| Shell Size | 09 |
| Military Standard | MIL-DTL-38999 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Shell Plating | Black Zinc Nickel |
Key Features
- This MIL-DTL-38999 series III Class-Z circular connector offers high durability and resistance.
- Black zinc nickel plating provides 500 hours salt spray endurance and environmental compliance.
- Connector is designed with solder termination and screw coupling for reliable mating.
- Temperature operation ranges from -65°C to 175°C, suitable for harsh military environments.
- Connector shell is made of aluminium with black zinc plating and features strain relief for cable protection.
- Suitable for military and commercial applications including aircraft, vehicles, submarines, and communication devices.
- Designed for up to 500 mating cycles ensuring long service life and consistent electrical performance.
- Gold-plated copper alloy contacts provide low resistance and corrosion resistance for reliable connectivity.
Product Description
Amphenol Limited TV06ZN-09-98SN MIL Spec Circular Connector is a high-performance cable connector designed to meet stringent military specifications (MIL-DTL-38999 Series III Class Z). It features a copper alloy contact material and black zinc nickel plated aluminium housing to provide enhanced corrosion resistance, making it ideal for use in harsh environmental conditions.
The connector is rated for currents up to 7.5A and voltage ratings between 600 and 850 volts AC. It operates reliably within a wide temperature range from -65°C up to 175°C and includes strain relief to protect cable integrity. The connector has a straight orientation and comes with a solder termination type along with screw coupling mating, ensuring secure and robust connections in critical applications.
This MIL Spec connector offers 500 hours of salt spray resistance and up to 500 mating cycles, supporting long-term durability and reliability. Its gold-plated copper alloy female contacts deliver low contact resistance and enhanced corrosion resistance, crucial for stable electrical performance in defense and commercial applications.
Applications of this circular connector range from military aircraft and vehicles to submarines, as well as communication devices, making it a versatile choice for advanced industrial and defense technology integrations.
This MIL Spec connector meets rigorous military standards and environmental regulations. Black zinc nickel plating replaces cadmium plating, adhering to ecological compliance requirements. High salt spray endurance and mating cycle count ensure longevity and durability.
Copper alloy contacts plated with gold ensure excellent conductivity and corrosion resistance. Suitable for a variety of military and commercial electronic equipment. Includes strain relief for enhanced cable protection and reliability.
Solder termination and screw coupling facilitate secure assembly and maintenance. Designed for easy integration into existing MIL-DTL-38999 Series III systems.
Amphenol's TV06ZN-09-98SN connector is a trusted component for demanding industrial, military, aerospace, and communications applications, providing reliable, stable, and high-performance connectivity solutions. Browse EnvMart electronics components for similar Mil Spec Circular Connectors and related accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 175°C.
This connector is rated for a maximum current of 7.5A.
It supports voltage ratings of 600V and 850V AC.
The connector features 3 contacts.
The termination type is solder, ensuring secure connections.
The housing is made of aluminium with black zinc nickel plating, and the contacts are made of copper alloy with gold plating.
It utilizes a screw coupling mating type for secure assembly.
Yes, it is designed to meet military specifications and is suitable for military and commercial applications.
The connector offers 500 hours of salt spray resistance and adheres to ecological compliance requirements, replacing cadmium plating with black zinc nickel.
The connector has a straight orientation.
The country of origin for this connector is India.
It is designed for up to 500 mating cycles, ensuring longevity and reliability.
