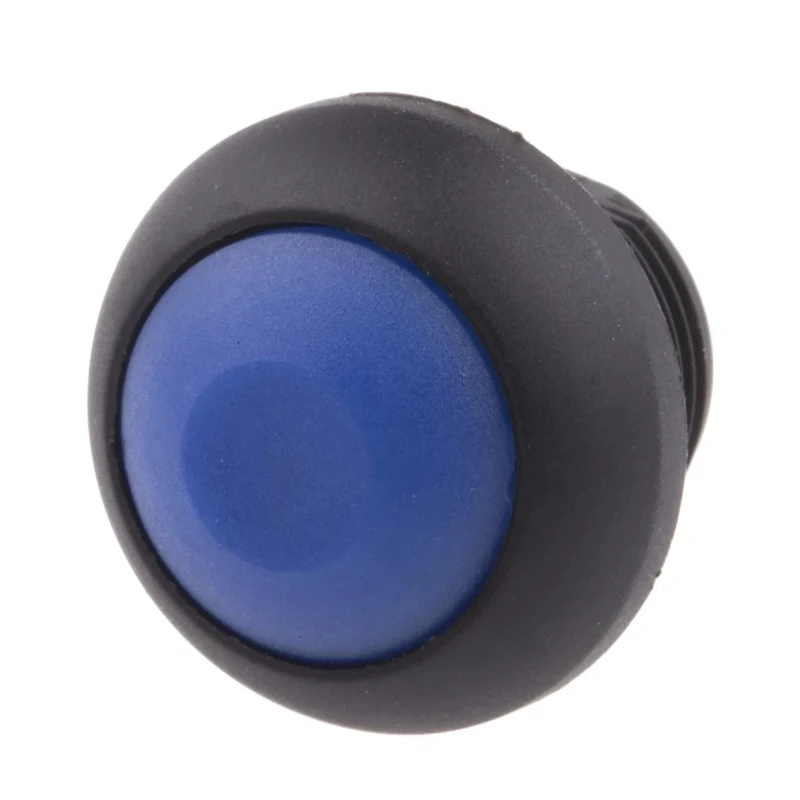

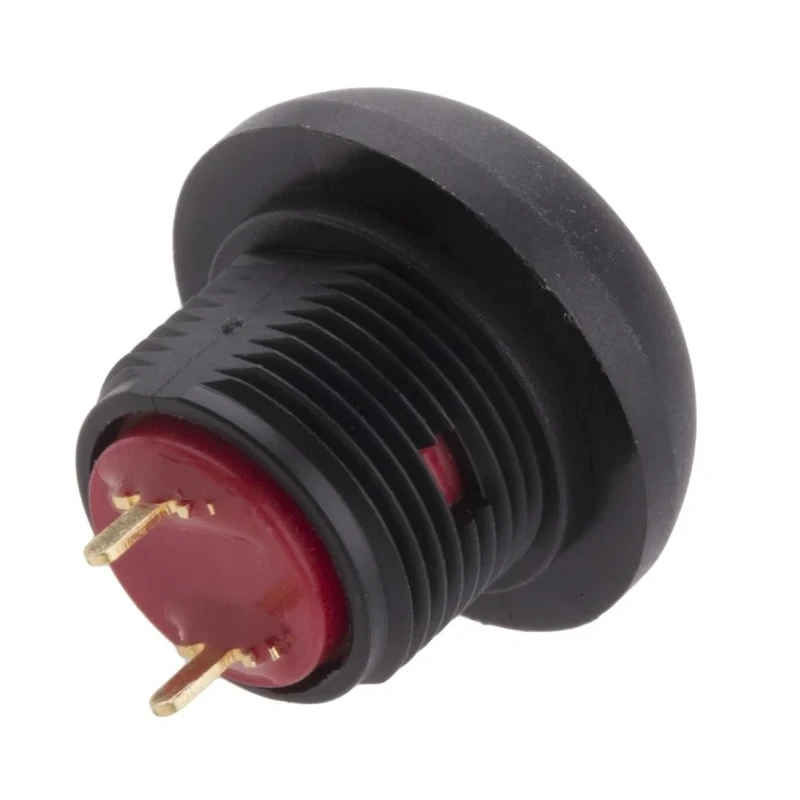

RS PRO Miniature Momentary Push Button Switch with Blue LED, PCB Mount, SPST, IP67, 50V DC 32V AC 8207606P

RS PRO 8207606P is a high-quality miniature push button switch with momentary operation designed specifically for PCB mounting applications. Featuring a 13.6 mm panel cutout and SPST contact configuration, this switch provides reliable single-pole switching functionality with a blue LED indicator to enhance visibility and status indication.

The push button actuator is constructed from Polyamide 6/6, offering excellent mechanical strength and resistance to environmental wear. Contacts are gold over silver plated, which ensures reduced contact resistance and superior corrosion resistance for industrial longevity.

Rated for a contact current of 400mA with 50V DC and 32V AC voltages, the switch meets demanding electrical operational standards. Additionally, the product carries an IP67 ingress protection rating, which certifies it as dust tight and capable of withstanding temporary immersion in water, suitable for harsh industrial and outdoor environments.

This momentary switch operates with an actuation force between 2 to 5 Newtons, delivering a contact bounce of 10 milliseconds. It is rated for a mechanical life of up to 1 million cycles and withstands soldering temperatures up to 350°C for 5 seconds, making it compatible with modern PCB assembly processes.

Typical use cases include test equipment, telecommunications systems, networking hardware, and handheld appliances where compact, reliable push button controls are essential. The IP67 rating and robust materials make it ideal for industrial, laboratory, and commercial environments that demand durability and long-term performance.

This switch operates with momentary action for transient control requirements. It features an IP67 rating, ensuring protection against dust and water immersion. The actuator cap is made from high-quality Polyamide 6/6 for durability.

Gold over silver plated contacts provide enhanced conductivity and corrosion resistance. The switch supports a contact current of 400mA at 50V DC and 32V AC. It is suitable for demanding industrial applications like test equipment, telecommunications, and networking devices.

The mechanical life cycle is rated for 1,000,000 operations ensuring long service life. Temperature operating range up to 85°C allows use in elevated temperature environments. Discover the wide range of RS PRO components and Push Button Switches on EnvMart to meet your industrial and electronic design needs.
