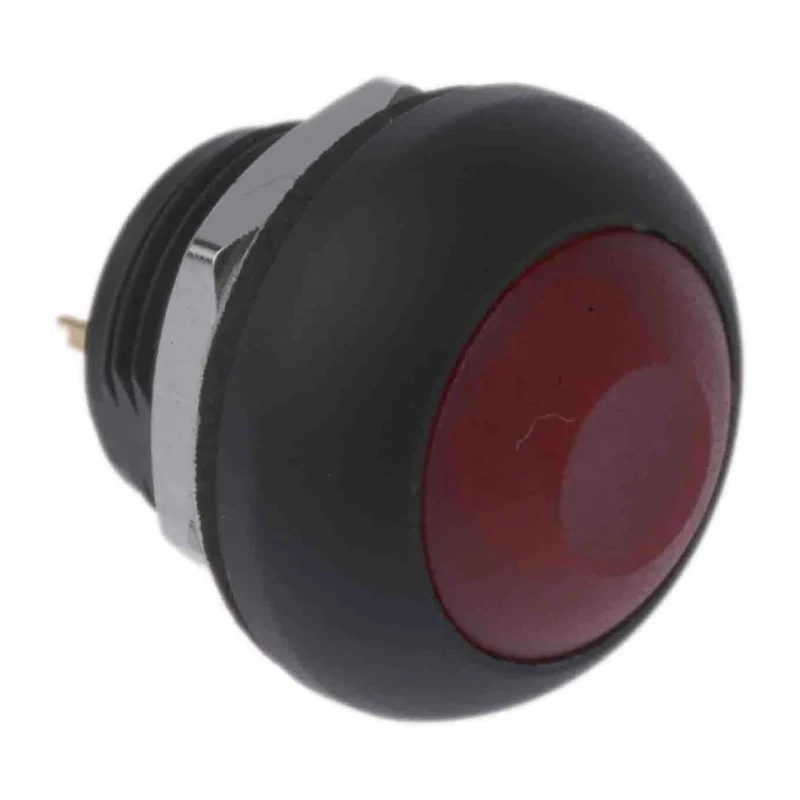

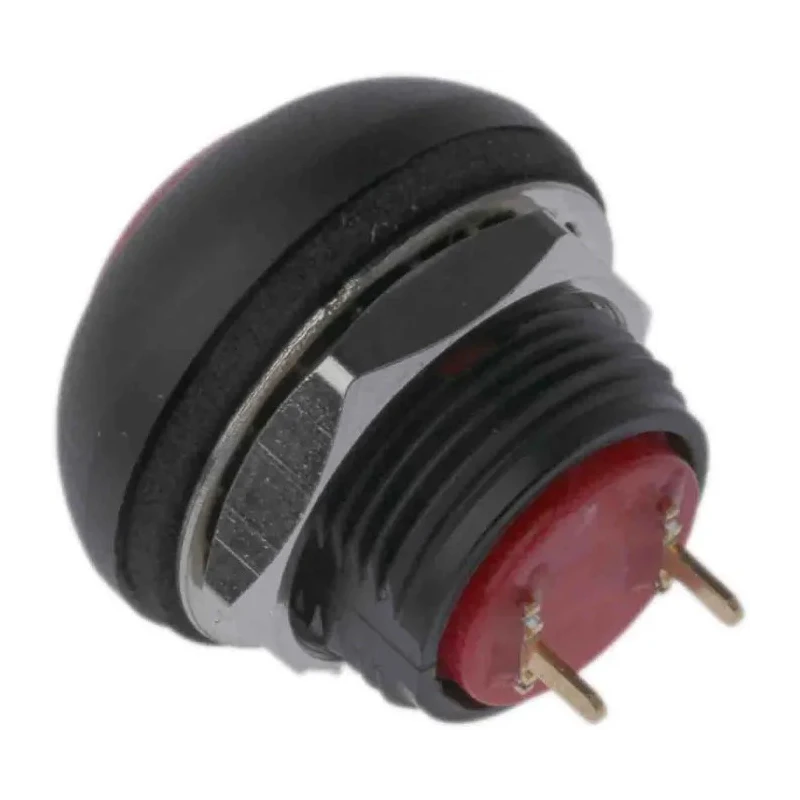

RS PRO Miniature Momentary Push Button Switch, PCB Mount, 13.6 mm Cutout, Red LED, SPST, IP67, 50 V dc, 32 V ac 8207599P

RS PRO 8207599P is a miniature momentary push button switch designed for PCB mounting with a panel cutout size of 13.6 mm. This SPST (Single Pole Single Throw) switch includes a red LED indicator and offers IP67 protection, making it ideal for applications requiring ruggedness and dust/water resistance.

Manufactured using high-quality Polyamide 6/6 material for the actuator cap coupled with gold over silver plated contacts, this switch ensures reliable mechanical and electrical performance. It supports a contact DC voltage of 50 V and AC voltage of 32 V, suited for telecommunication, networking, test equipment, and handheld appliance applications.

The switch operates with a mechanical life expectancy of over one million cycles and an operating force of 2 to 5 Newtons for efficient usability. Its robustness is further demonstrated by a maximum operating temperature of 85°C and an IP67 rating for protection against water immersion and dust ingress. The device complies with RoHS and lead-free standards, ensuring environmental compliance.

The contact bounce time is minimal at 10 ms, enhancing signal stability, and it supports soldering temperatures up to 350°C for five seconds, facilitating manufacturing assembly processes.

The compact design makes it suitable for tight spaces within equipment. Reliable and precise momentary contact switching with a red LED indicator. High endurance with more than 1,000,000 mechanical cycles. Withstands demanding industrial and laboratory environments due to IP67 rating.

Compliant with environmental directives including RoHS and lead-free manufacturing processes.

Typical use cases for the RS PRO 8207599P include control panels, measuring instruments, telecommunications, and networking equipment, where small form-factor, reliable switching is critical. This product supports designers and engineers in creating durable and efficient electrical assemblies.
