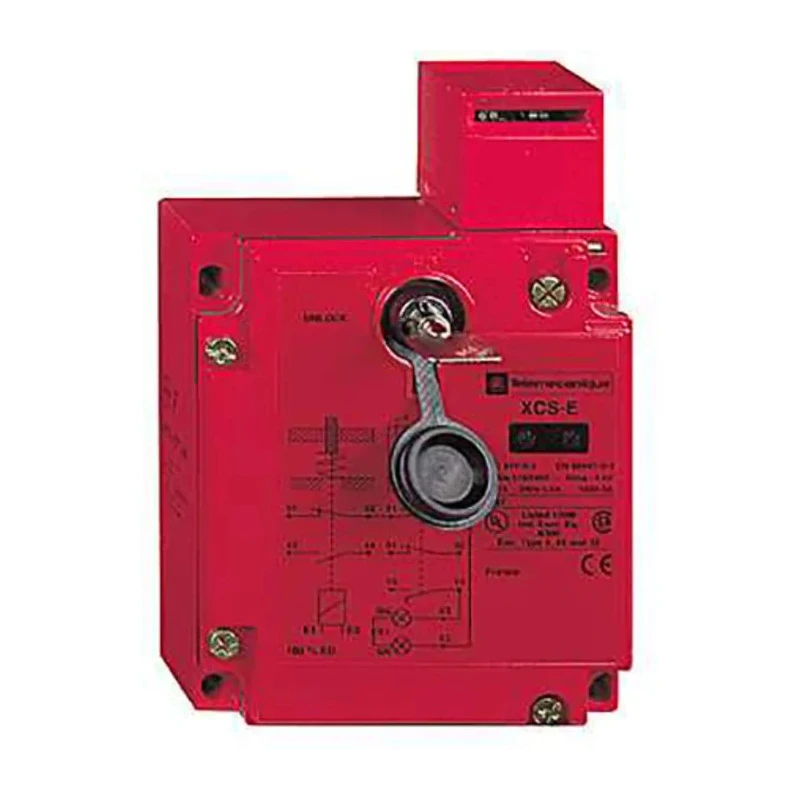

Telemecanique Sensors Solenoid Interlock Switch with Power to Unlock Actuator Included, Metal Housing, 24V AC/DC XCSE5313

Telemecanique Sensors XCSE5313 is a high-performance solenoid interlock switch from the XCS-E Series designed for safety control in industrial environments. Featuring a power to unlock actuator included, this device ensures machine operation stops when safety guards or doors are opened, thus protecting operators effectively.

Crafted with a heavy-duty metal housing, the switch boasts an IP67 rating, offering excellent resistance to dust and water, making it suitable for demanding industrial conditions. The actuator is key operated, allowing authorized personnel to override the solenoid safely and securely, with the key supplied for convenience.

The unit's turret head is versatile, capable of 360° rotation in 90° increments, enabling flexible installation even in confined spaces. Multiple conduit and actuator entries promote easy integration into existing systems. The housing dimensions are 146mm length, 98mm width, and 44mm depth.

The XCSE5313 supports a wide supply voltage range of 24V AC/DC and carries contact ratings of 24 VAC at 6 A, 110 VAC at 3 A, 230 VAC at 2 A, and 24 VDC at 0.5 A for up to 1,000,000 reliable operations. Its minimum operating force of 20 N ensures a positive opening action which is critical for safety compliance.

Two LED indicators provide clear status signals; orange indicates the guard is open, and green shows the guard is closed and locked with the key. Additionally, a third contact is dedicated to diagnostic feedback, improving system monitoring and maintenance capabilities.

Designed and manufactured in France, the XCSE5313 is compliant with EN1088 and EN60204 standards, reaffirming its high safety and quality benchmarks. It is ideal for heavy machinery in manufacturing, industrial automation, and other critical safety applications where reliable guard monitoring is essential.

Set contains the solenoid interlock switch with actuator included. Actuators must be purchased separately if additional types are needed. The series features a key-operated lock allowing authorized override with key supplied.

Equipped with two LED indicators: orange for guard open and green for guard closed with key locked. Heavy duty metal compact housing offers IP67 protection against dust and water ingress. Turret heads can rotate through 360° in 90-degree steps to optimize installation.

Multiple actuator entry points with high contact rating ensuring reliable operations. Designed for low operating forces providing positive opening at minimum 20N. Includes a third contact dedicated to diagnostics for increased productivity.

Suitable for heavy-duty industrial machinery to enhance operator safety and equipment protection. Explore the full range of Safety Interlock Switches and sensors at EnvMart for professional industrial automation and control solutions.
