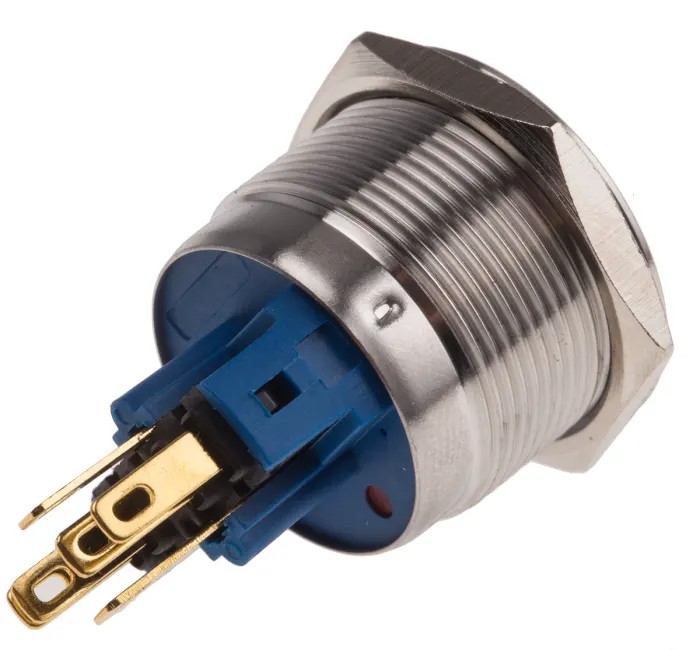

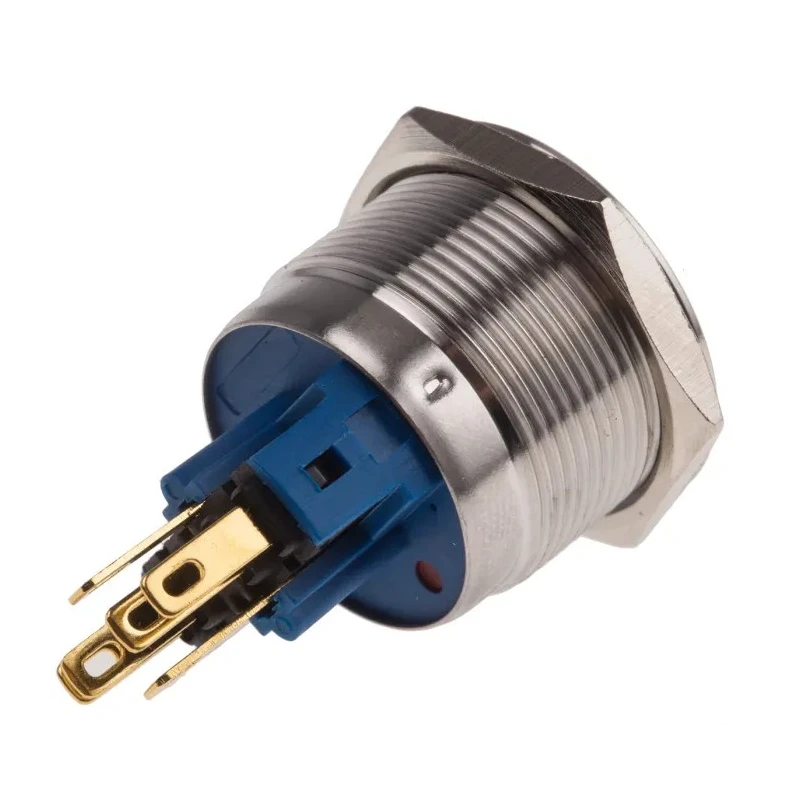

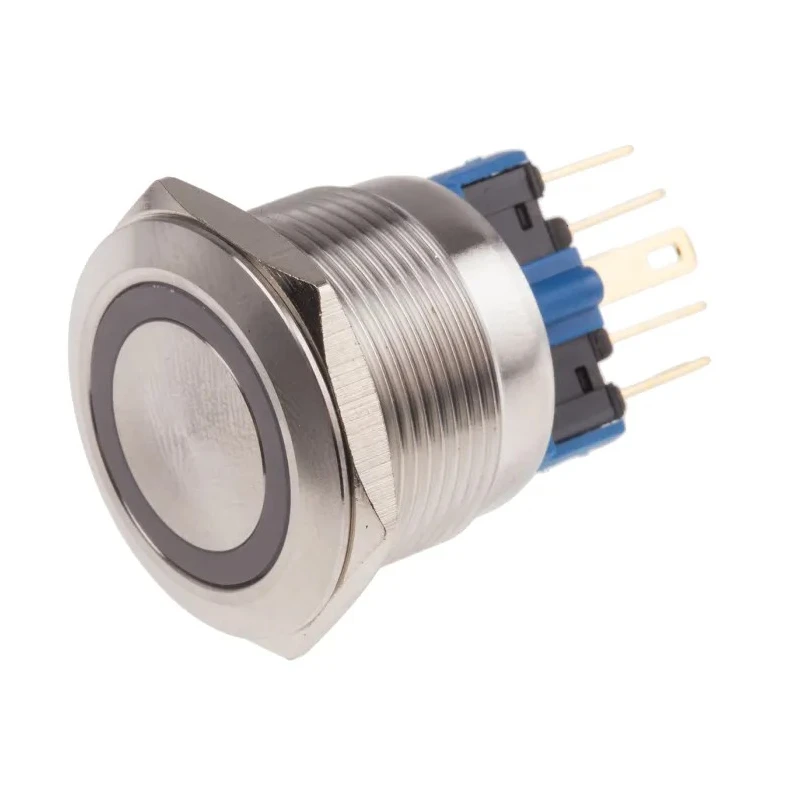

RS PRO Illuminated Momentary Push Button Switch 22 mm Cutout SPDT Red LED IP65 IP67 250 V AC 811-8544
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 811-8544 |
| IP Rating | IP65, IP67 |
| Mount Type | Panel |
| Contact Configuration | SPDT |
| Switch Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Flat |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a stainless steel actuator with silver plating for durability.
- It is configured as SPDT contact configuration, supporting 250 V AC and DC loads.
- The device offers IP65 and IP67 front panel protection against dust and water ingress.
- Designed for a maximum operating force of 4 N and an operating life of up to 50,000 cycles.
- Quick connect terminals facilitate easy wiring and installation.
- The red LED illumination clearly indicates switch status during operation.
- Compatible with industrial, automation, electrical, and control panel applications.
- Rated to operate in temperatures as low as -20°C, suitable for diverse environments.
Product Description
RS PRO 811-8544 is an Illuminated Momentary Push Button Switch designed for panel mounting with a precise 22 mm cutout size. This switch features an SPDT contact configuration, suitable for switching 250 V AC and DC electrical loads.
The actuator is constructed of stainless steel with a flat silver-colored style providing robust physical resistance and an anti-vandal design. The switch terminal connections utilize quick connect brass terminals with silver plating for reliable conductivity and durability.
Durability is further supported by an operating life rated to 50,000 cycles and a maximum operating force of 4 N. The front panel features IP65 and IP67 ratings, protecting against dust, water ingress, and environmental exposure, making it suitable for outdoor installations, public kiosks, and industrial control panels.
The integrated red LED illumination clearly signals switch actuation and status, improving operator feedback and safety in automation and electrical system environments. The unit is certified RoHS compliant and manufactured in Taiwan, Province Of China, ensuring quality and environmental standards.
The switch's ability to operate in environments down to -20°C adds versatility for various industrial, manufacturing, electrical distribution, and automation applications. Its compact size and quick connect terminals enable easy integration into existing control panels or custom machinery.
The switch features a stainless steel actuator with silver plating for durability. It is configured as SPDT contact configuration, supporting 250 V AC and DC loads. The device offers IP65 and IP67 front panel protection against dust and water ingress.
Designed for a maximum operating force of 4 N and an operating life of up to 50,000 cycles. Quick connect terminals facilitate easy wiring and installation. The red LED illumination clearly indicates switch status during operation.
Compatible with industrial, automation, electrical, and control panel applications. Rated to operate in temperatures as low as -20°C, suitable for diverse environments.
For professional engineers and technicians seeking high reliability and performance in panel-mounted Push Button Switches, RS PRO 811-8544 offers assured quality and performance with comprehensive environmental protection.
Explore more RS PRO products for premium electrical and automation components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Single Pole Double Throw (SPDT) contact configuration, suitable for various electrical applications.
It is designed for a maximum operating force of 4 N, allowing for easy actuation.
This model requires a precise panel cutout size of 22 mm for proper installation.
The switch has IP65 and IP67 ratings, providing protection against dust and water ingress.
It supports both AC and DC loads up to 250 V, making it versatile for various applications.
This unit is rated to operate in temperatures as low as -20°C, suitable for diverse environments.
It utilizes quick connect brass terminals with silver plating for reliable conductivity and easy wiring.
The switch is rated for an operating life of up to 50,000 cycles, ensuring longevity in use.
The integrated LED illumination is red, clearly indicating the switch status during operation.
It is certified RoHS compliant, ensuring it meets environmental standards for hazardous substances.
The actuator is constructed of stainless steel with silver plating, providing robust physical resistance.
It is compatible with industrial, automation, electrical, and control panel applications, making it versatile for various setups.
