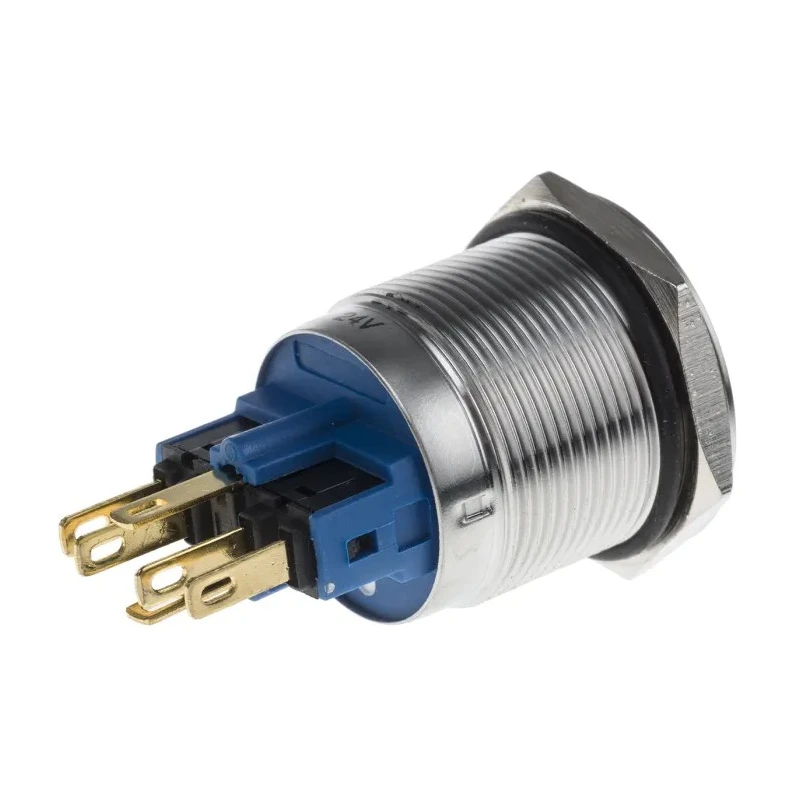

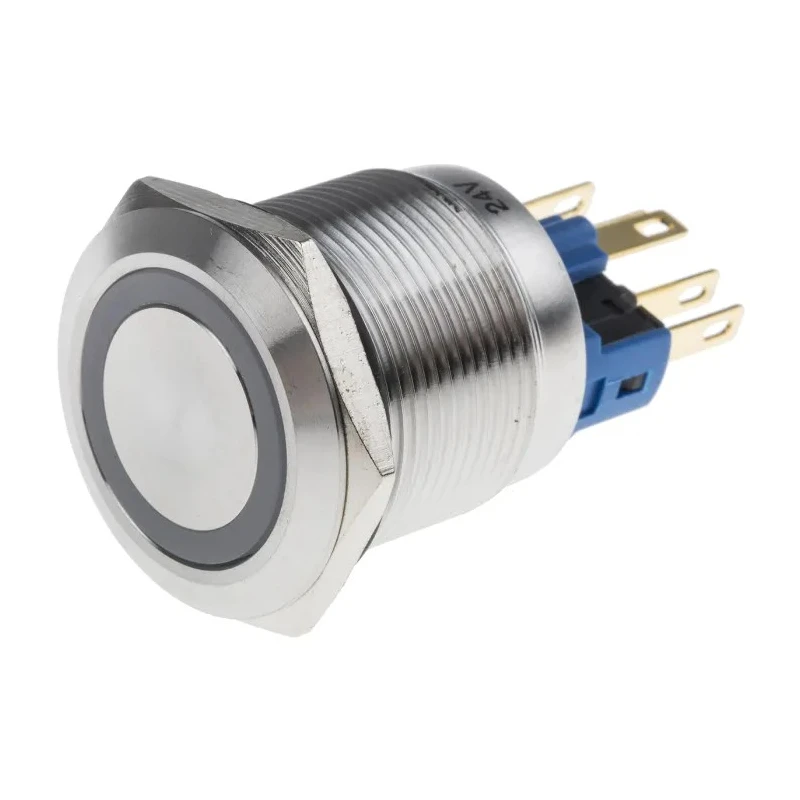

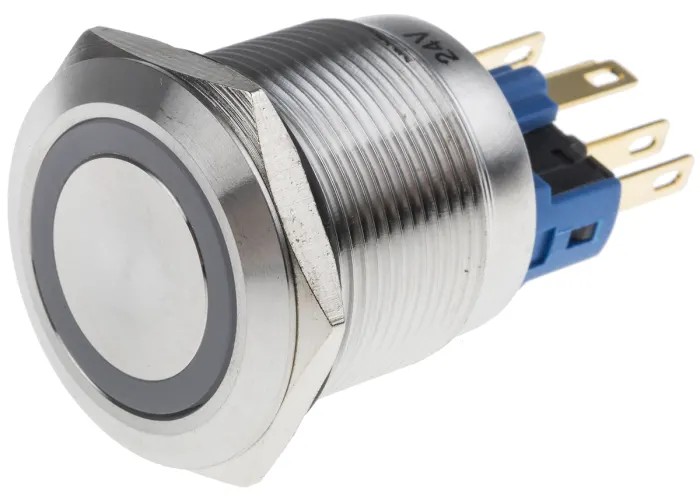

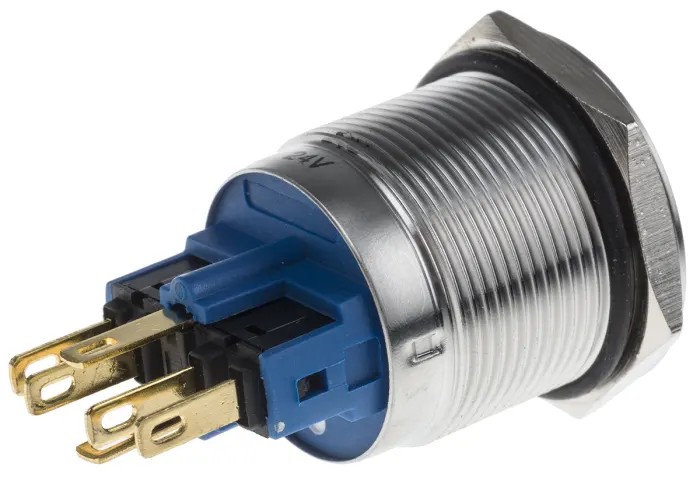

RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 22 mm Cutout, SPDT, White LED, IP65 IP67, 250 V AC 811-8525

RS PRO 811-8525 Illuminated Push Button Switch is a high-quality electrical switch designed for panel mounting applications requiring a robust and reliable switching solution. Featuring a 22 mm panel cutout size and SPDT (Single Pole Double Throw) contact configuration, this switch operates on a latching mechanism with a flat silver actuator.

Illuminated with a white LED, it offers clear visual status indication. The push button switch is rated at 250 V AC voltage with a contact current of 5 A, suitable for a wide range of industrial, automation, and electrical control uses.

Designed to resist harsh environmental conditions, it carries IP65 and IP67 ingress protection ratings, ensuring strong resistance against dust and water ingress, making it suitable for outdoor equipment, public kiosks, and exposed control panels.

Manufactured from stainless steel with copper alloy, silver-plated contacts, and brass terminals, this Push Button Switch ensures long-term durability and reliable electrical contact. It meets RoHS environmental compliance standards and is engineered to operate over a minimum temperature range of -20°C.

Typical applications include industrial automation control panels, machinery control stations, HVAC control interfaces, and public use electrical stations requiring vandal-resistant features.

The switch features a silver-colored flat actuator for easy operation. Rated for 250 V AC and 5A contact current with IP65 and IP67 ingress protection. Quick connect terminals simplify electrical installation. Constructed with stainless steel and copper alloy with silver-plated contacts for durability.

Suitable for indoor and outdoor applications requiring water and dust resistance. Operating temperature range down to -20°C ensures reliable use in diverse environments. RoHS compliant, meeting environmental and safety standards.

This product is manufactured in Taiwan, Province Of China and maintains a high standard of quality for industrial and commercial applications. Browse our Electronics & Electricals category for similar RS PRO switches and components on EnvMart for all your professional electrical installation needs.
