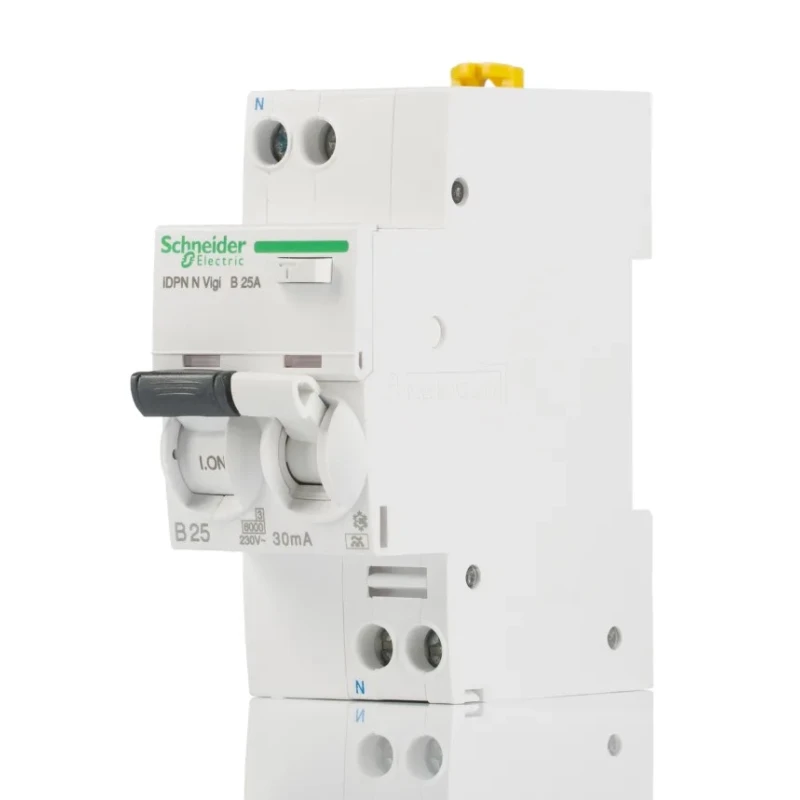

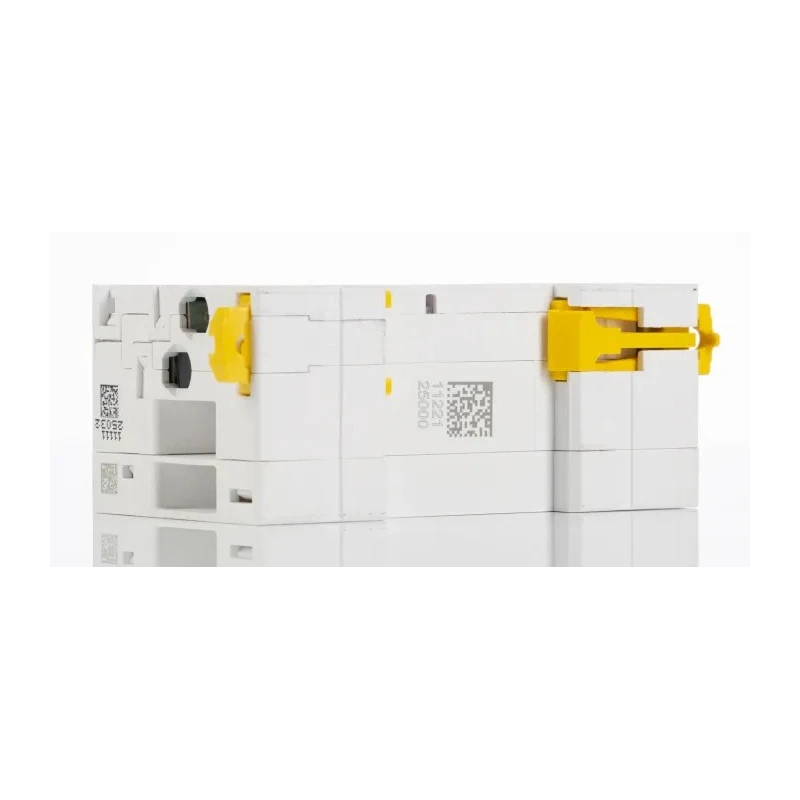

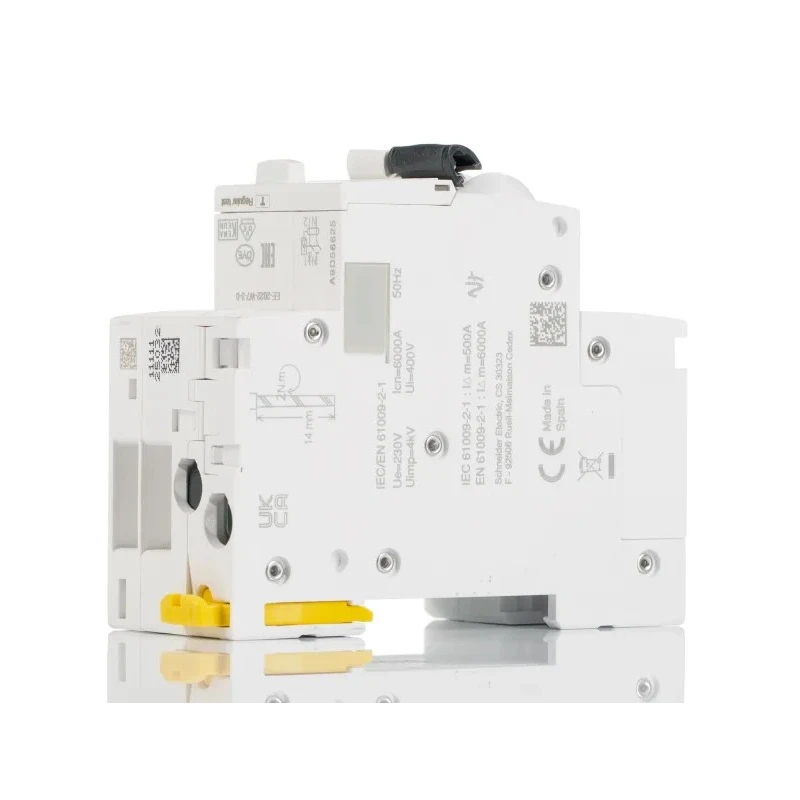

Schneider Electric Residual Current Circuit Breaker with Overload Protection 25A, 1-Pole, 30 mA Trip A9D56625

Schneider Electric A9D56625 is a Residual Current Circuit Breaker with overload protection designed for electrical distribution systems requiring enhanced safety and reliability. This RCBO model offers a 25A current rating with a single pole configuration and a 30 mA trip sensitivity to detect earth leakage currents effectively. Its thermal magnetic trip mechanism with type B tripping characteristics ensures rapid response to overloads, safeguarding circuits subject to low switching surges.

This device provides type A earth leakage protection, offering enhanced protection against AC leakage currents that can cause electrical shocks. The unit is built to endure a wide environmental temperature range from -25°C to +60°C, making it suitable for varied industrial, commercial, and residential applications.

The RCBO incorporates a high impulse withstand voltage rating of 4 kV, protecting against sudden voltage spikes to prevent damage. Its mechanical durability of 20,000 operating cycles guarantees long-term operational life with consistent performance. An IP40 rating ensures finger safety by preventing access to hazardous internal components.

The robust design features screw-type terminals for secure wiring connections and built-in clips for tool-free mounting on DIN rails, facilitating efficient installation and maintenance. For safety during maintenance, the breaker supports padlocking to enable lockout-tagout procedures.

Typical use cases include domestic wiring, medical equipment protection, and safeguarding measurement and instrumentation devices. This Schneider Electric RCBO is compliant with IEC and RoHS standards, affirming its quality and environmental compliance.

Features thermal magnetic trip technology with type B characteristics for overload protection. Provides type A earth leakage protection to prevent shock hazards. Wide temperature range suitability from -25°C to +60°C for harsh environments.

Robust mechanical durability rated for 20,000 operational cycles. Facilitates quick, tool-free DIN rail mounting with padlocking provision. Impulse withstand voltage rating of 4 kV to handle voltage spikes. IP40 finger-safe design ensures user safety during operation.

Complies with IEC and RoHS standards for quality assurance. Explore more Schneider Electric products and RCBO solutions at EnvMart for reliable electrical protection and safety.
