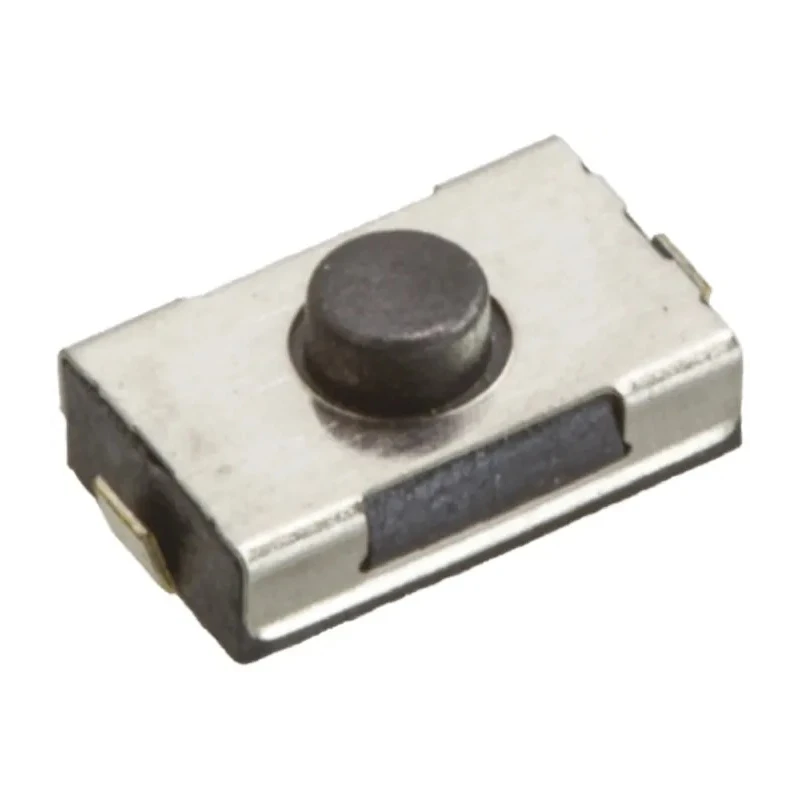

Wurth Elektronik Black Tactile Switch SPST 50mA 12 V dc Momentary Surface Mount 0.8 mm Actuator Length 434123025816

Wurth Elektronik model 434123025816 is a high-quality black tactile switch designed for precise control applications. This tactile switch operates on a single-pole single-throw (SPST) configuration with a momentary switch action. Its compact and robust stainless steel construction ensures reliable performance in harsh industrial and commercial environments.

The switch features a straight orientation actuator with a length of 0.8 mm and is designed for surface mount applications, with overall dimensions of 6 mm in length, 3.8 mm in width, and 2.5 mm in height. It is rated to handle a contact DC voltage of 12V and a current of 50 milliamps, making it ideal for low-voltage electronic devices and control panels.

Designed to withstand challenging environments, this switch functions efficiently across a wide temperature range from -40°C up to 85°C. The operating force of 1.57 N assures tactile feedback and precise actuation, while the mechanical life expectancy of 50,000 cycles ensures long-term durability. The stainless steel cover and silver-clad contacts add to the switch's robustness and corrosion resistance.

This tactile switch complies with RoHS standards, ensuring it meets environmental safety requirements. It supports reflow soldering techniques as per JEDEC J-STD 020 hot air specifications, enabling smooth integration into advanced printed circuit board assemblies.

Wurth Elektronik’s tactile switch is suitable for a wide range of applications including industrial automation, consumer electronics, instrumentation, control systems, and other electronic equipment requiring momentary low-current switching. Its compact size and reliable performance make it a preferred choice in electronics manufacturing and design.

Features a black tactile actuator with a momentary switch operation. Designed as a single-pole single-throw (SPST) configuration. Compact dimensions: length 6 mm, width 3.8 mm, height 2.5 mm. Capable of operating at temperatures ranging from -40°C to +85°C.

Switch contact current rating is 50 milliamps at 12 volts DC. Mechanical life expectancy of 50,000 cycles ensures durable performance. Actuator orientation is straight with a stainless steel cover and silver cladded stainless steel contacts.

Suitable for reflow soldering according to JEDEC J-STD 020 hot air standards. Complies with RoHS standards for environmental and safety compliance. Operating force required is approximately 1.57 newtons for tactility. Explore the extensive range of Wurth Elektronik Tactile Switches and related components on EnvMart for reliable electronic switching solutions.
