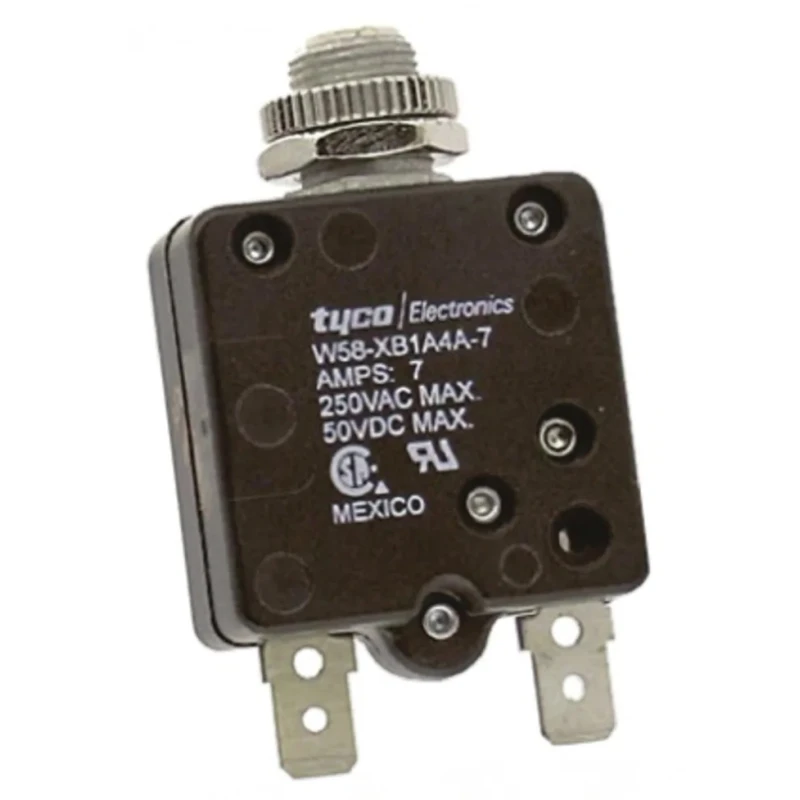

TE Connectivity W58 Thermal Circuit Breaker 7A Current Rating 1-Pole Direct Mount W58-XB1A4A-7

Name: TE Connectivity W58 Thermal Circuit Breaker 7A Current Rating 1-Pole Direct Mount W58-XB1A4A-7
Brand: TE Connectivity
SKU: 131325
Price: 11.33 USD
Availability: InStock



Category Thermal Circuit Breaker Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Model	W58-XB1A4A-7
Width	16.76mm
Mount Type	Direct
Current Rating	7A
Series	W58
Terminal type	Screw
Breaking Capacity	1000A
Number of Poles	1
Standards/Approvals	CE, RoHS
Rated AC Voltage	250V ac
Rated DC Voltage	50V dc
Tripping Characteristics	101%-145%, Must trip at 145% at 25°C
Tripping Mechanism	Thermal
Reset Actuator Type	Toggle Switch
Mount Hole Size	18.8 mm
Break Time	Medium

Key Features

Designed for thermal tripping with medium break time for consistent protection.
Rated AC voltage of 250V and DC voltage of 50V suitable for varied electrical applications.
Breaking capacity of 1000A ensures robust interruption of electrical faults.
Features toggle switch reset actuator for easy manual resetting after trip.
Equipped with screw terminal type and mount hole size of 18.8 mm for secure installation.
Complies with CE and RoHS standards ensuring quality and safety compliance.
Tripping characteristics at 101%-145%, trip at 145% at 25°C for accurate protection.

Product Description

TE Connectivity W58-XB1A4A-7 Thermal Circuit Breaker is engineered for industrial, commercial, and electrical automation applications that require precise thermal overcurrent protection. This 7A rated, 1-pole circuit breaker operates effectively with a medium break time to interrupt electrical overloads reliably.

The device supports a rated AC voltage of 250V and DC voltage of 50V, making it suitable for circuits powered by either AC or DC sources. Its robust 1000A breaking capacity ensures it can safely handle fault conditions without damage.

Installation is facilitated by a direct mount type with screw terminals and a mount hole size of 18.8 mm, while the compact width of 16.76 mm enables space-saving in control panels and electrical assemblies.

The thermal tripping mechanism ensures the breaker trips within a range of 101% to 145% of rated current, with mandatory tripping at 145% at 25°C ambient temperature. This mechanism effectively protects electrical circuits from overheating and possible damage.

With a toggle switch reset actuator, the breaker can be manually reset after an overcurrent trip, minimizing downtime and maintenance effort. The breaker complies with CE and RoHS certifications, underlining its adherence to industry standards for safety and environmental compliance.

This Thermal Circuit Breaker is well-suited for applications in electrical automation, industrial machinery, HVAC systems, and manufacturing control panels, providing reliable protection against electrical faults.

Explore EnvMart’s extensive range of circuit breakers and electrical protection devices to find compatible components and enhance your electrical safety solutions. Designed for thermal tripping with medium break time for consistent protection.

Rated for 7A current with 1 pole direct mount construction. Supports 250V AC and 50V DC operations. 1000A breaking capacity for effective fault interruption. Toggle switch actuator for easy reset after a trip. Compact width and screw terminal type for secure installation.

Conforms to CE and RoHS standards for quality assurances.
