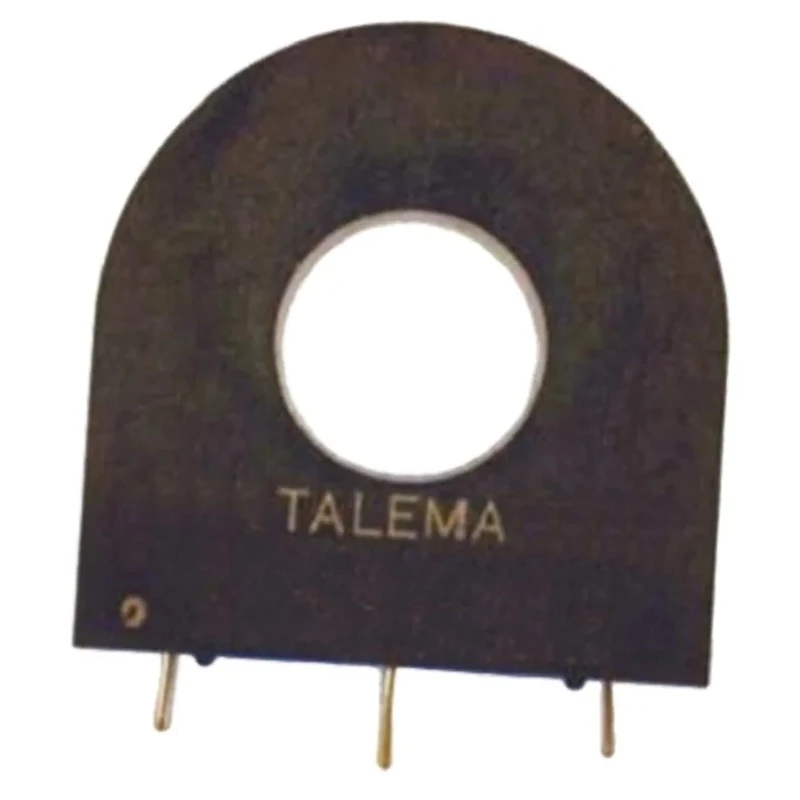

Nuvotem Talema ACX Series High Accuracy Current Transformer 100 A 2500:1 Through Hole Mount ACX-1100
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nuvotem Talema |
| Model | ACX-1100 |
| Depth | 11.12mm |
| Gross Weight | 50g |
| Width | 34.9mm |
| Mount Type | Through Hole |
| Series | ACX |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Wire |
| Standards/Approvals | ANSI/ESD S20.20:2014, UL 94 V-0, BS EN 61340-5-1:2007 |
| ANSI/ESD S20.20 | 2014, UL 94 V-0, BS EN 61340-5-1:2007 |
| Primary Current | 100A |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Turns Ratio | 2500:1 |
| Primary DC Resistance | 135Ω |
| Nuvotem Talema AC-1 Series Current Transformer 100 A 1000 | 1Brand: Nuvotem Talema |
| 2500 | 1 |
| Turns ratio 2500 | 1 |
| Nuvotem Talema ACX Series Current Transformer 100 A 2500 | 1 |
Key Features
- Primary current rating of 100 A suitable for precise power measurement.
- Operating frequency range between 50 Hz and 60 Hz.
- Wide operating temperature range from -40°C to 85°C for diverse environments.
- Compact dimensions with 34.9 mm width and 11.12 mm depth, mounted via through-hole.
- Low primary DC resistance of 135 Ω enabling minimal power loss.
- Dielectric withstand voltage up to 4 kVrms for operational safety.
- Constructed using materials compliant with UL94-V0 flammability standards.
- Ideal for industrial automation, process control, and electrical measurement applications.
Product Description
Nuvotem Talema ACX-1100 ACX Series Current Transformer is engineered for high precision current sensing applications. It operates at a primary current of 100 A with a turns ratio of 2500:1 providing accurate power measurement capabilities with 1% accuracy. The device supports operation within 50 Hz to 60 Hz frequency range and withstands dielectric voltages up to 4 kVrms, ensuring reliable performance in industrial settings.
The transformer features a compact through-hole mount design with a width of 34.9 mm and a depth of 11.12 mm, making it suitable for PCB integration or panel mounting. Its robust operating temperature range from -40°C to 85°C enables use under harsh factory floor or outdoor conditions. Constructed from materials compliant with UL94-V0 flammability ratings, it assures high safety and durability standards.
With a low primary DC resistance rating of 135 Ω, the transformer minimizes power loss, improving system efficiency. It weighs a mere 50 grams, facilitating easy handling and installation. The unit is certified to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, supporting high reliability in automated and process control environments.
Provides precise current measurement with 1% accuracy. Wide operating temperature suitability from -40°C to 85°C. Compact 34.9 mm by 11.12 mm through-hole mount design. Compatible with standard AC frequencies of 50 Hz and 60 Hz.
High dielectric withstand voltage of 4 kVrms assures electrical safety. Lightweight at 50 g, enabling easy system integration. Materials meet UL94-V0 flame retardant rating. Applicable for industrial automation and electrical metering applications.
Conforms to ANSI/ESD and BS EN safety standards. Low primary DC resistance for reduced power loss.
This current transformer is suited for use in industrial, laboratory, manufacturing, and power monitoring applications requiring reliable and precise AC current measurement. It is part of the Nuvotem Talema ACX Series, known for its quality and durability in control gear and process control systems.
Explore our extensive catalog of transformers and electrical components for complementary products and accessories to support your industrial projects at EnvMart.
Explore more products in our Current Transformers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary current rating of this model is 100 A, suitable for precise power measurement.
This unit has a turns ratio of 2500:1, which allows for accurate power measurement capabilities.
It operates within a frequency range of 50 Hz to 60 Hz, making it compatible with standard AC frequencies.
The dimensions of this model are 34.9 mm in width and 11.12 mm in depth, designed for through-hole mounting.
This current transformer weighs 50 grams, facilitating easy handling and installation.
This unit is certified to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, ensuring high reliability in industrial settings.
The primary DC resistance is rated at 135 Ω, which helps minimize power loss during operation.
This model features a through-hole mount design, making it suitable for PCB integration or panel mounting.
It is constructed from materials compliant with UL94-V0 flammability standards, ensuring safety and durability.
This current transformer is suitable for industrial automation, process control, and electrical measurement applications.
The ACX-1100 has a dielectric withstand voltage rating of up to 4 kVrms, ensuring operational safety.
