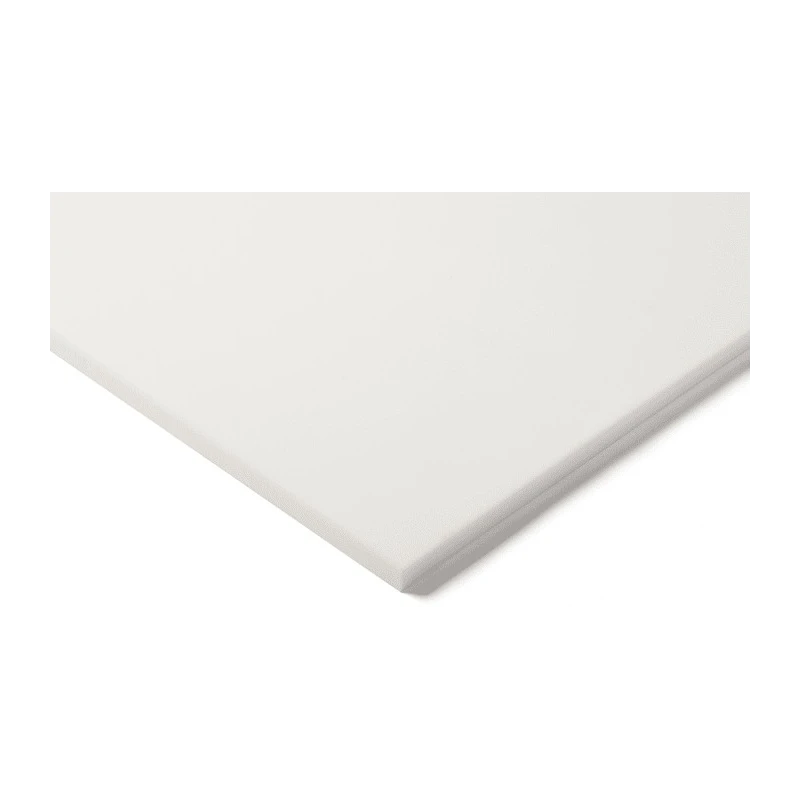

RS PRO White Polytetrafluoroethylene Plastic Sheet 600 mm x 300 mm x 20 mm 752-672

RS PRO 752-672 White Polytetrafluoroethylene Plastic Sheet, measuring 600 mm by 300 mm by 20 mm, is a premium-quality PTFE sheet designed for diverse industrial applications requiring outstanding chemical resistance and thermal stability. This sheet is manufactured from polytetrafluoroethylene, a semi-crystalline thermoplastic known for its low friction, excellent heat resistance, and robust chemical inertness.

PTFE sheets like this one are widely used in sectors such as mechanical manufacturing, fluid power, electrical engineering, aerospace, food processing, and medical device fabrication. Their resistance to high temperatures up to 260°C and stability in aggressive chemical environments make them suitable for demanding applications including bearing components, seals, and insulation parts.

The sheet features precise dimensions of 600 mm length, 300 mm width, and 20 mm thickness, with a density of 2.21 g/cm³. It boasts a tensile strength of 25 MPa and a Rockwell hardness of R 118, ensuring mechanical durability. The material exhibits low water absorption at 0.3%, reducing moisture-related degradation, and impact strength of 12 kJ/m² for enhanced toughness.

The white-colored PTFE sheet is UL 94 V-0 flame retardant, self-extinguishing, and has excellent electrical insulation properties with a low dielectric constant. Its non-stick surface helps prevent material adherence, facilitating maintenance and part longevity. The sheet is also resistant to UV radiation and weathering, ensuring durability in outdoor and high-exposure environments.

Manufactured from high-purity Polytetrafluoroethylene (PTFE) plastic. Dimensions: 600 mm length x 300 mm width x 20 mm thickness. Density of 2.21 g/cm³. Tensile strength of 25 MPa with R 118 Rockwell hardness. UL 94 V-0 flammability rating for fire safety.

Maximum continuous operating temperature up to 260°C. Water absorption rate at 0.3% ensuring moisture resistance. Impact strength of 12 kJ/m² providing mechanical robustness. Offers excellent sliding properties with a low coefficient of friction.

Resistant to UV, weathering, and gamma radiation sensitive. Electrical insulation with a low dielectric constant. Typical applications include transport, pump construction, electrical engineering, food processing, and aerospace components.

Set your project up for success with the RS PRO PTFE plastic sheet 752-672, offering reliability and performance for industrial manufacturing and engineering tasks. Explore our Industrial Supplies category for more Plastic Sheets and materials.
