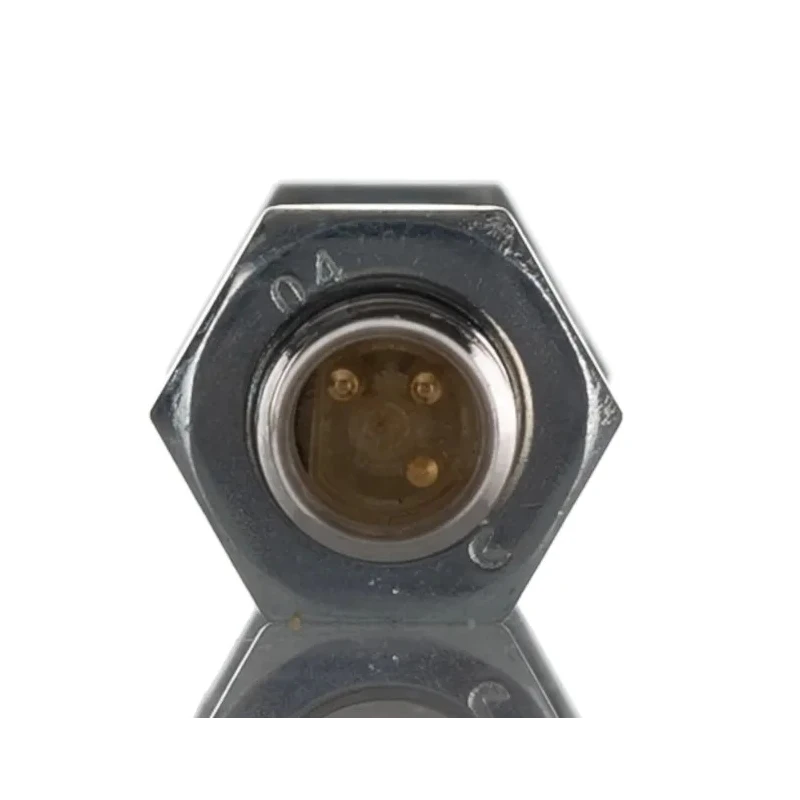

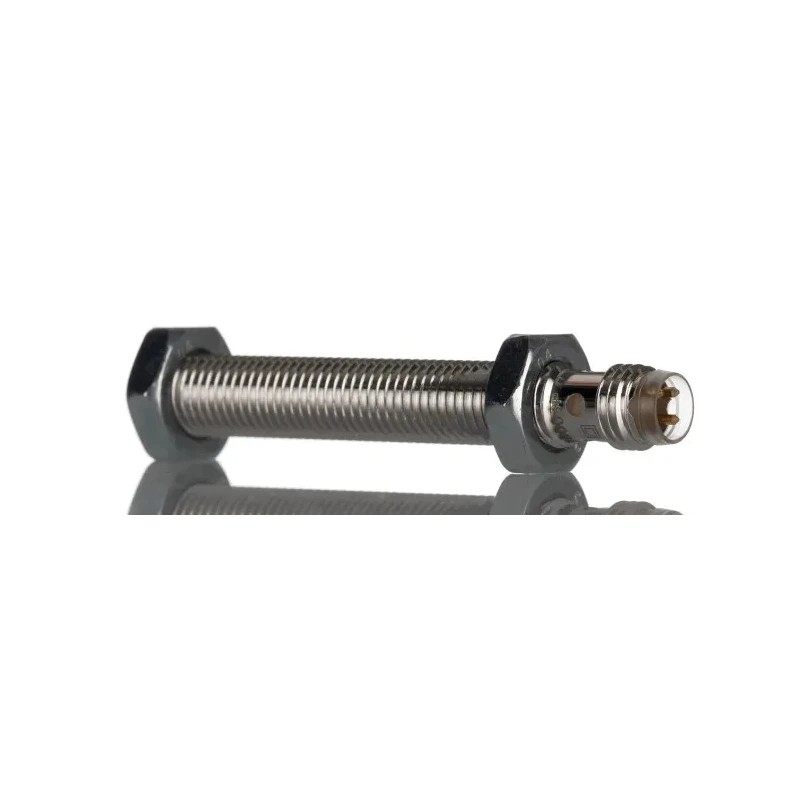

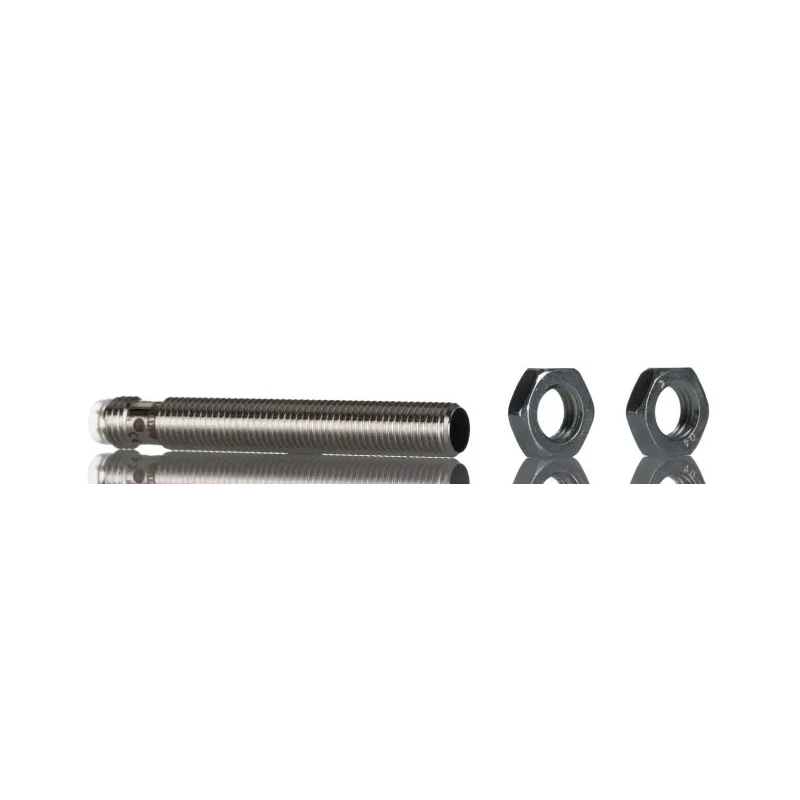

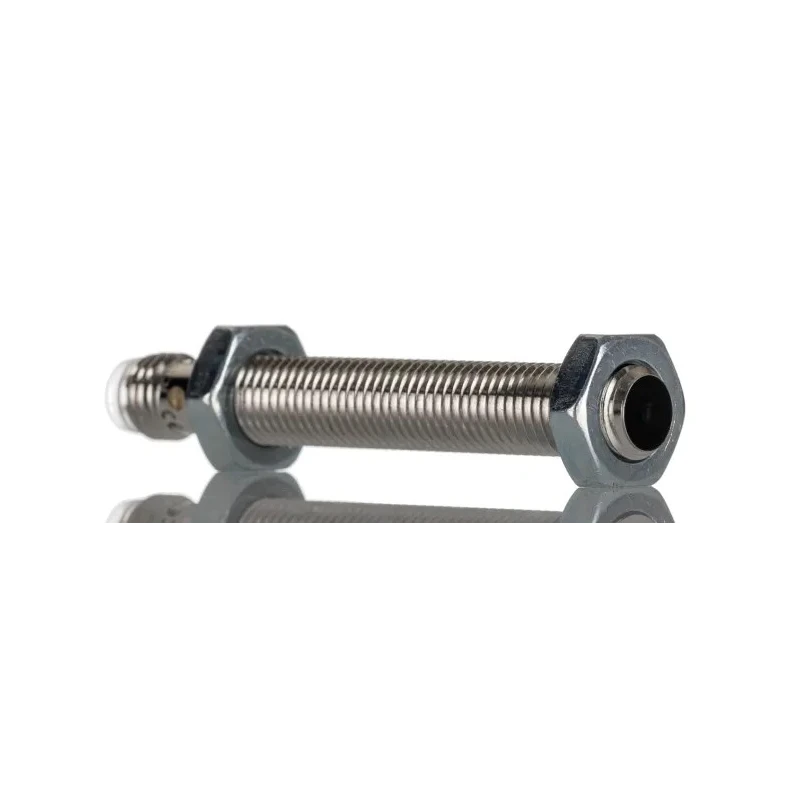

BALLUFF Threaded Barrel Inductive Proximity Sensor M8 x 1, PNP, 3V, 2 mm Detection, 250 V AC, 30 V DC BES M08MI-PSC20B-S49G
Specifications
| Country of Origin | India |
|---|---|
| Brand | BALLUFF |
| Length | 59mm |
| Model | BES M08MI-PSC20B-S49G |
| IP Rating | IP67 |
| Width | 8mm |
| Mount Type | Flush |
| Housing Material | Copper Zinc |
| Output type | PNP |
| Series | BES003M |
| Maximum Operating Temperature | 70°C |
| Thread Size | M8 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | M8 |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 700Hz |
| Standards/Approvals | CE, cULus, EAC, IEC 60947-5-2 |
| Maximum AC Voltage | 250V ac |
| Maximum Supply Voltage | 3V |
| Materials Detected | Polybutylene Terephthalate |
| Maximum Detection | 2mm |
Key Features
- This sensor features a threaded barrel body style measuring 59mm length and 8mm width for compact installation.
- It supports a maximum supply voltage of 3V and operates with a maximum DC voltage of 30V and AC voltage of 250V.
- Equipped with short circuit and polarity reversal protection, ensuring robust and safe operation.
- Certified to CE, cULus, EAC, and IEC 60947-5-2 standards for industrial compliance.
- Operating temperature ranges from -25°C to 70°C enabling use in various industrial environments.
- These sensors have an IP67 rating providing excellent dust and water resistance.
- Output type is PNP with a maximum switching current of 200mA and switching frequency up to 700Hz.
Product Description
BALLUFF BES M08MI-PSC20B-S49G is a high-quality threaded barrel inductive proximity sensor with M8 x 1 threading designed for industrial automation and control applications. It operates at a low maximum supply voltage of 3V with a detection distance up to 2 mm. The sensor’s compact body (59 mm length, 8 mm width) and shielded design allow it to be embedded flush in metal surfaces with minimal free zone requirement.
Constructed from copper zinc housing material and designed with an IP67 rating, the sensor can operate reliably in harsh conditions including exposure to dust and water. It functions safely within an operating temperature range of -25°C to 70°C. The PNP output provides a maximum switching current of 200mA and supports high switching frequencies up to 700 Hz, making it suitable for fast and precise sensing tasks.
The sensor includes features such as short circuit and polarity reversal protection along with LED indication for output state, enhancing its robustness and ease of use in demanding industrial environments. Certified to international standards CE, cULus, EAC, and IEC 60947-5-2, it ensures dependable performance meets strict regulatory requirements.
Threaded barrel body style enables easy mounting in industrial fixtures. Flush mounting capability allows embedding with minimal free zone. Robust IP67 protection against dust and water ingress. Safe operation with short circuit and polarity reversal protection.
Visual LED output state indication for operational status monitoring. Complies with CE, cULus, EAC, and IEC 60947-5-2 standards.
This inductive proximity sensor is suited for use in industrial automation, manufacturing lines, machine safety monitoring, robotics, and process control systems requiring precise metallic object detection. Its compact threaded form factor and reliable electrical performance make it ideal for applications needing embedded sensor solutions with robust environmental resistance.
Explore the extensive range of BALLUFF Inductive Proximity Sensors and other sensor types on EnvMart to find optimized solutions for your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance of this model is 2 mm.
It operates within a temperature range of -25°C to 70°C.
This unit features a PNP output type.
The sensor has an IP67 rating, providing excellent dust and water resistance.
The sensor measures 59 mm in length and 8 mm in width.
It supports a maximum switching current of 200 mA.
The maximum supply voltage is 3V.
It is certified to CE, cULus, EAC, and IEC 60947-5-2 standards.
The maximum AC voltage is 250V.
It supports a maximum DC voltage of 30V.
It includes an LED indication for output state monitoring.
This model can detect materials such as Polybutylene Terephthalate.
