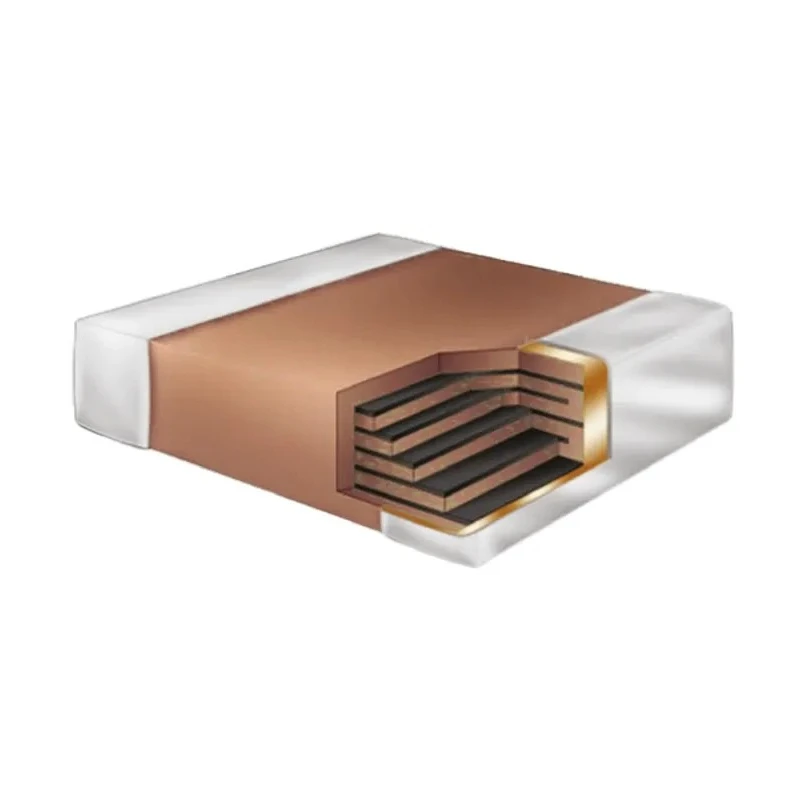

KEMET 12 nF Multilayer Ceramic Capacitor 500V DC ±10% Tolerance Surface Mount 0805 Case ArcShield™ Series C0805V123KCRACTU

KEMET C0805V123KCRACTU is a 12 nF Multilayer Ceramic Capacitor designed to operate at 500V DC with a tolerance of ±10%. This surface mount device comes in an 0805 case size providing compact dimensions of 2mm length, 1.25mm width, and 1.25mm height, making it ideal for high-density PCB layouts.

This capacitor features the ArcShield™ series construction, combining nickel barrier terminations covered with a layer of plated tin to ensure excellent solderability and long-term reliability in demanding electronic applications. The dielectric used is X7R, a temperature-stable ceramic material suitable for maintaining capacitance over a broad temperature range.

Operating temperatures span from -55°C to 125°C, making this component suitable for robust industrial, automotive, and consumer electronic environments. Termination is solder type, enabling secure mounting to printed circuit boards.

The KEMET C0805V123KCRACTU is supplied in tape and reel packaging, facilitating automated assembly processes and improving production efficiency. It complies with several industry standards such as IPC-7351 and J-STD-020, ensuring quality and compatibility with standard assembly processes.

Applications for this multilayer ceramic capacitor include decoupling, filtering, and timing in mobile phones, video and tuner designs, automotive electronics, and other high-performance electronics equipment.

This capacitor features the ArcShield™ series construction for enhanced reliability. It has an 0805 size package with dimensions 2mm length × 1.25mm width × 1.25mm height. Dielectric material is X7R, designed for stable temperature performance.

Minimum operating temperature is -55°C and maximum operating temperature is 125°C. Termination type is solder with nickel barrier terminations plated with tin. Packaging is tape and reel for efficient automatic insertion in production.

Industry standards include IPC-7351, EIA 481, EIA 1206, and J-STD-020.

This capacitor represents a dependable component choice for electronic device manufacturers requiring stable capacitance and high voltage capability in a compact surface mount package. Explore more Multilayer Ceramic Capacitors and electronic components on EnvMart for your industrial and advanced electronics projects.
