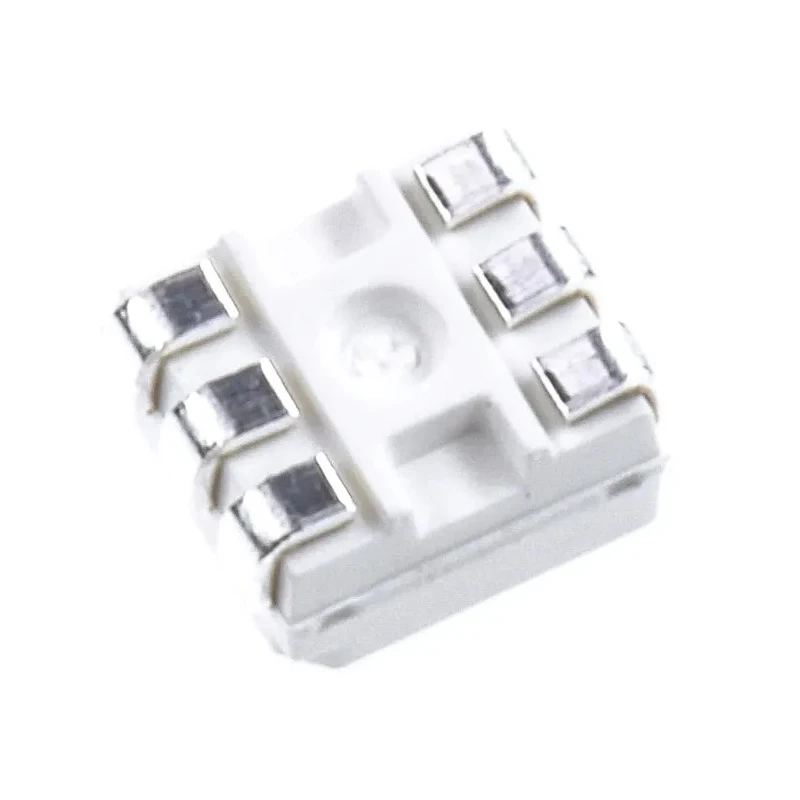

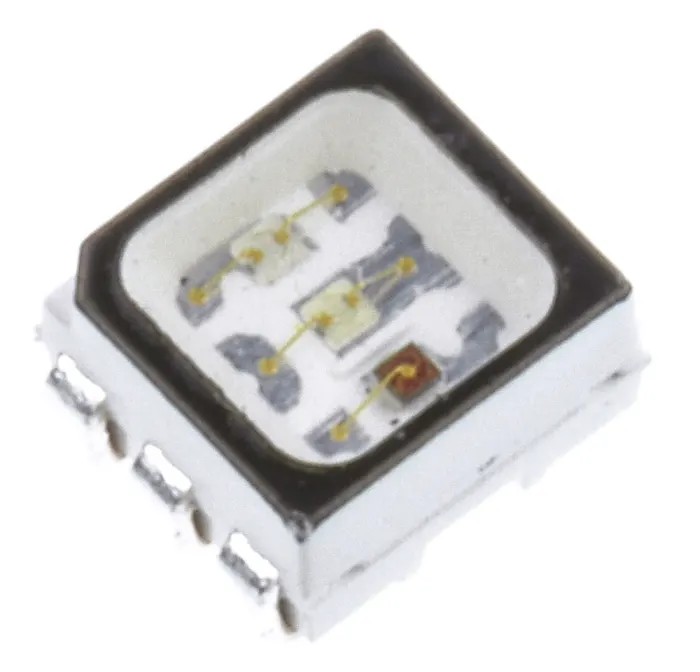

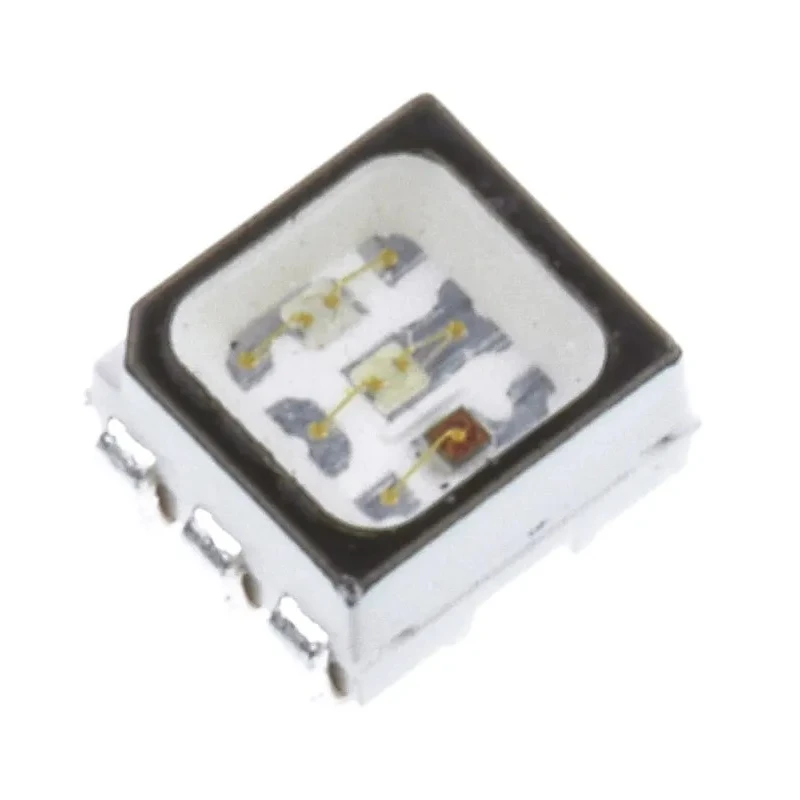

Broadcom 3.2 V Green, Red LED PLCC 6 Surface Mount Indicator ASMT-YTB2-0BB02

Broadcom ASMT-YTB2-0BB02 is a high-quality surface mount LED indicator featuring green and red LEDs operating at a forward voltage of 3.2 V. This device is engineered for use in compact electronic assemblies requiring visible status signalling with broad visibility due to its 120° wide viewing angle. The LED’s clear square lens measures 3 x 2.8 x 1.8 mm, providing an unobstructed emission profile suitable for many industrial and consumer electronic applications.

Designed with a compact PLCC6 package and six-pin surface mount configuration, it is optimized for dense PCB layouts and automated assembly lines. The LED can handle a maximum forward current of 50 mA and maximum power dissipation of 125 mW, ensuring bright performance without excessive thermal stress.

This indicator integrates three LEDs with dominant wavelengths at 470, 530, and 622 nm, enabling multi-state indications for advanced signaling tasks. The device emits a luminous intensity of 1.6 cd, making it clearly visible in standard ambient lighting environments.

Compliance with RoHS standards reflects Broadcom's commitment to environmentally responsible design and production. The LED comes supplied in tape and reel packaging, ready for high-volume automated mounting, streamlining manufacturing efficiency.

The compact PLCC6 package supports densely populated assemblies. The wide 120° viewing angle allows visibility from off-axis positions. Max forward current of 50 mA supports enhanced brightness levels. Clear square lens ensures no diffuser effect on the beam shape.

Suits panel indicators, handheld instruments, and consumer electronics multi-state indicators.
