TE Connectivity 60-Way IDC Connector Female for Cable 2 Row 30V AC 500mA AMP-LATCH System 50 2-111196-2

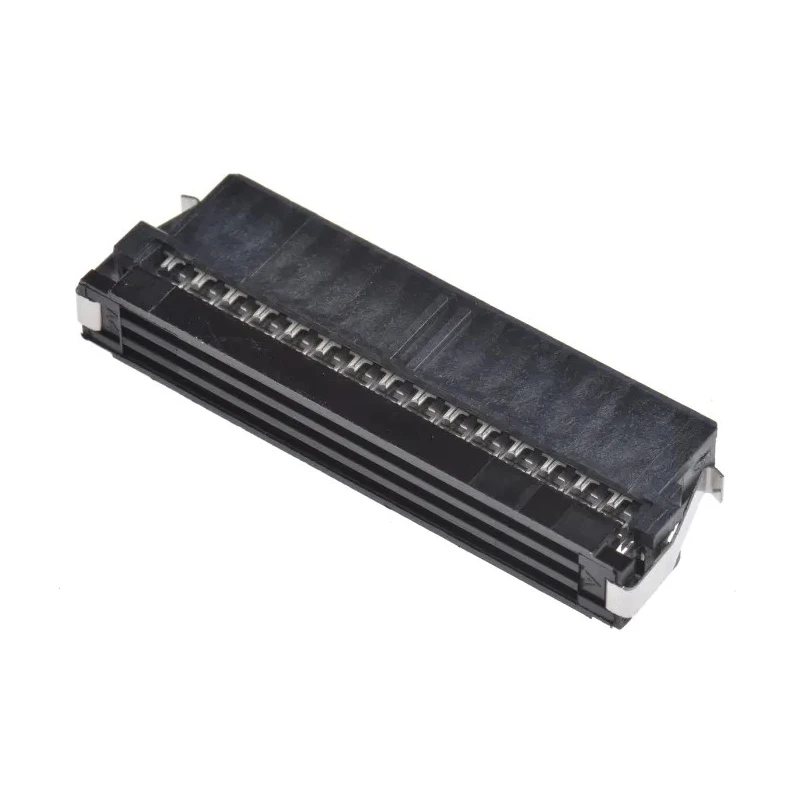

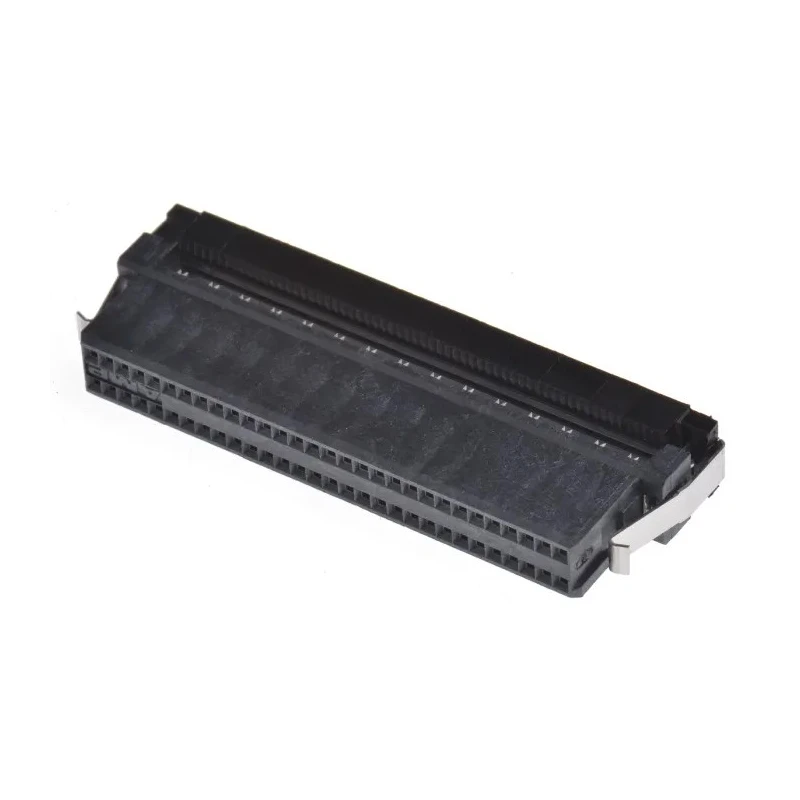

TE Connectivity 2-111196-2 60-Way IDC Connector Female 2 Row is a high density cable connector designed for reliable and efficient wire-to-board connections in industrial and electronic applications. It consists of 60 female contacts arranged in two rows with a pitch of 1.27 mm, providing compact and space-saving connectivity suitable for ribbon cable terminations.

Constructed with a thermoplastic housing and copper alloy contacts plated with gold and nickel, this connector delivers excellent electrical performance and durability. It supports currents up to 500mA at 30V AC and operates reliably across a wide temperature range from -65°C to a maximum of 105°C, making it suitable for demanding environments.

The AMPMODU System 50 series is engineered with integral positive locking latches on the receptacle side that ensure secure mating with headers while saving PCB space and preventing mismating through polarization bars. Its insulation displacement contacts enable quick, one-step termination without requiring extra tools, facilitating efficient assembly in production.

This product is ideally deployed in applications such as factory automation systems, telecommunications equipment, medical devices, server hardware, test and measurement instruments, storage equipment, automotive control systems, and gaming technology, where high-density, reliable cable connections are essential.

This connector is female and supports 60 contact points arranged in 2 rows. The pitch spacing between contacts is 1.27 mm ensuring compactness and high density. It supports a current of 500mA and operates at 30V AC with a maximum temperature of 105°C.

The connector has gold and nickel plated copper alloy contacts for excellent electrical performance. Thermoplastic housing material provides durability and insulation. It features an integral positive locking latch system for secure mating connections.

Suitable for daisy chain and end termination with IDC contacts for quick one-step assembly. Operating temperature ranges from -65°C to 105°C for versatile applications. Ideal for use in factory automation, telecommunications, medical equipment, servers, automotive controls, and gaming devices.
