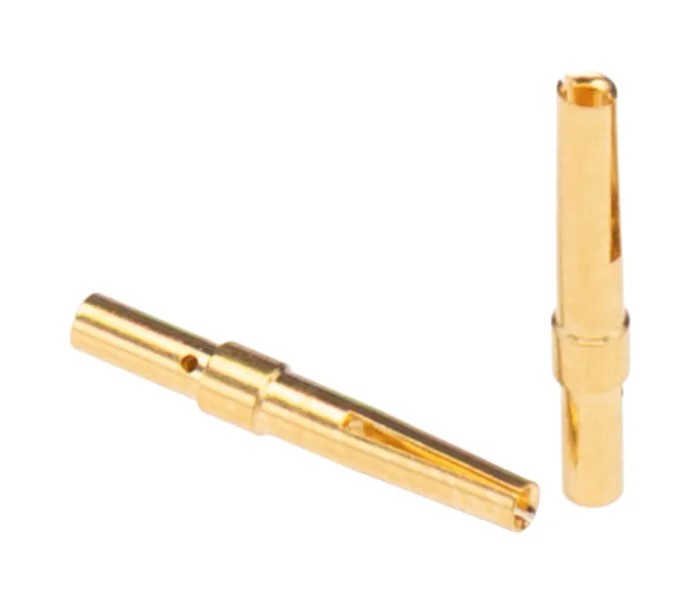

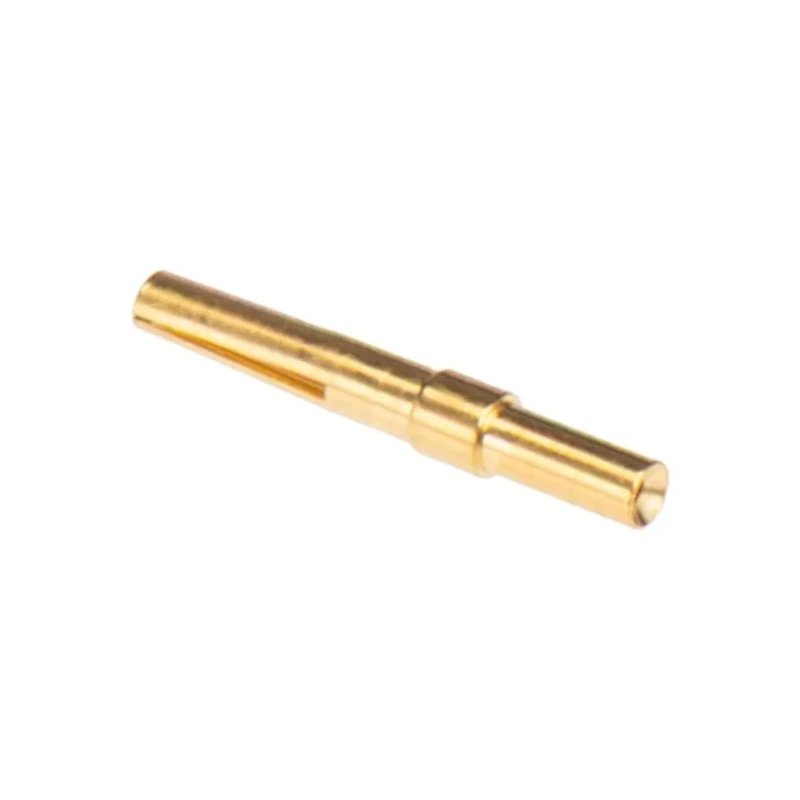

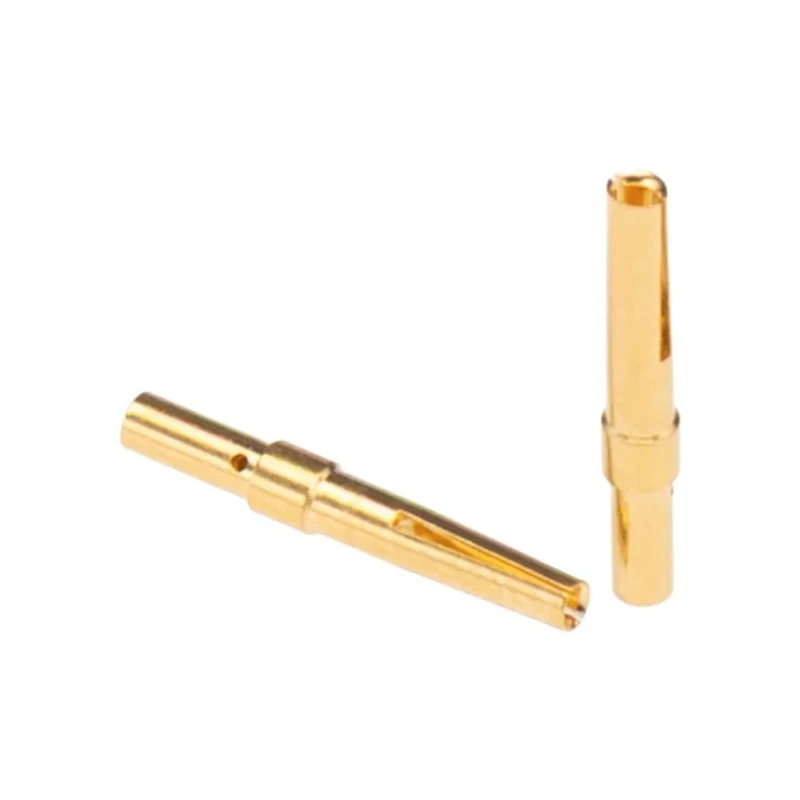

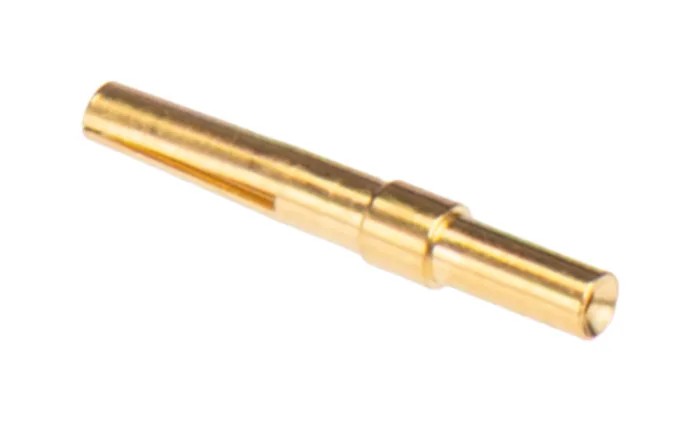

HARTING Female Crimp Circular Connector Contact, Contact Size 1.8 mm, Wire Size 24AWG - 28 AWG 09670007476
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | HARTING |
| Length | 13.6mm |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | D-Sub Standard |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Contact Type | Signal |
| Minimum Operating Temperature | -40°C |
| Wire size | 24, 28AWG |
| For Use With | D-Sub Connector |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Nickel |
| Contact Size | 1.8 mm |
| Maximum Contact Resistance | 10mΩ |
| Harting Female Crimp D-sub Connector Contact, GoldBrand | HARTING |
Key Features
- Constructed from copper alloy for optimal electrical conductivity.
- Gold over nickel plating ensures corrosion resistance and stable signal integrity.
- Crimp termination designed for secure connection of 24 to 28 AWG conductors.
- Rated for operation between -40°C and 85°C for versatile environmental usage.
- Compact 13.6 mm length suitable for D-Sub standard connectors.
- Maximum contact resistance of 10 milliohms supports precise signal control.
- Compliant with RoHS standards, ensuring environmentally friendly manufacturing.
- Ideal for industrial automation, instrumentation panels, and control cabinet wiring.
Product Description
HARTING 09670007476 Female Crimp Circular Connector Contact is a high-quality circular connector contact designed for signal applications within the D-Sub standard connector assemblies. It features a compact 1.8 mm contact size and a 13.6 mm length, making it suitable for precise signal wiring demands in aerospace, industrial automation, and electronic instrumentation.
Manufactured from copper alloy, the contact material balances excellent electrical conductivity with robust mechanical durability essential for repeated mating cycles. The gold over nickel plating provides a corrosion-resistant interface that maintains low contact resistance and signal integrity over time, even in challenging environmental conditions.
The crimp termination method supports secure attachment of 24 to 28 AWG wires, requiring compatible crimping tools to ensure consistent electrical and mechanical connections. This contact is rated for operation across a temperature range from -40°C to 85°C, allowing deployment in both low-temperature and elevated-temperature environments.
With a maximum contact resistance of 10 milliohms, the contact ensures signal accuracy required for sophisticated control systems. Its design aligns with the D-Sub standard series, enabling easy integration into female D-Sub connector positions, suitable for use in control cabinets, industrial automation systems, and instrumentation panels.
Certified RoHS compliant, this connector contact meets environmental and safety standards, making it suitable for global manufacturing and assembly applications. The compact form factor and reliable connection characteristics make it an excellent choice for retrofit, repair, or new installations requiring professional-grade signal contacts.
Constructed from copper alloy delivering stable electrical conduction. Gold over nickel plating reduces oxidation and maintains low resistance. Crimp termination designed for 24 - 28 AWG conductor sizes. Rated for operation from −40 to 85 °C for diverse environments.
Measures 13.6 mm in length for compatibility with D-Sub connectors. Meets RoHS standards ensuring environmentally conscious production. Ideal for industrial automation and instrumentation panel applications. Explore more electronic components and Circular Connector Contacts at EnvMart to support your industrial and electronic projects with trusted quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact size of this model is 1.8 mm.
It is designed for use with 24 AWG to 28 AWG wire sizes.
The maximum operating temperature is 85°C.
The minimum operating temperature is -40°C.
The maximum contact resistance is 10 milliohms (10 mΩ).
It is constructed from copper alloy, which provides optimal electrical conductivity.
This model uses a crimp termination method for secure wire connections.
Yes, it is compliant with RoHS standards, ensuring environmentally friendly manufacturing.
The length of this connector contact is 13.6 mm.
It belongs to the D-Sub standard series, suitable for D-Sub connector assemblies.
This connector contact is ideal for industrial automation, instrumentation panels, and control cabinet wiring.
The country of origin for this connector contact is Switzerland.
