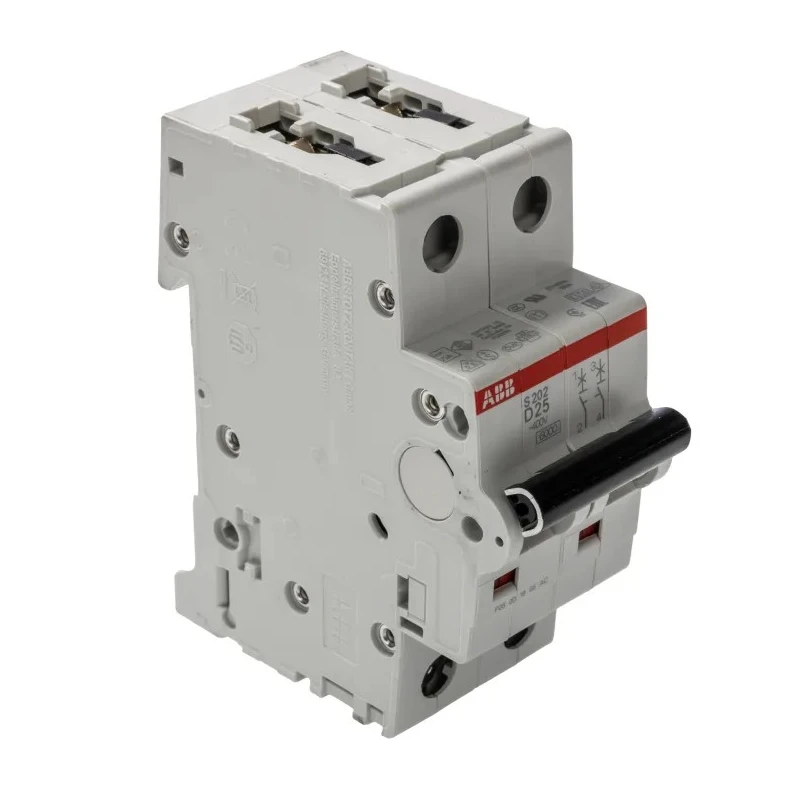

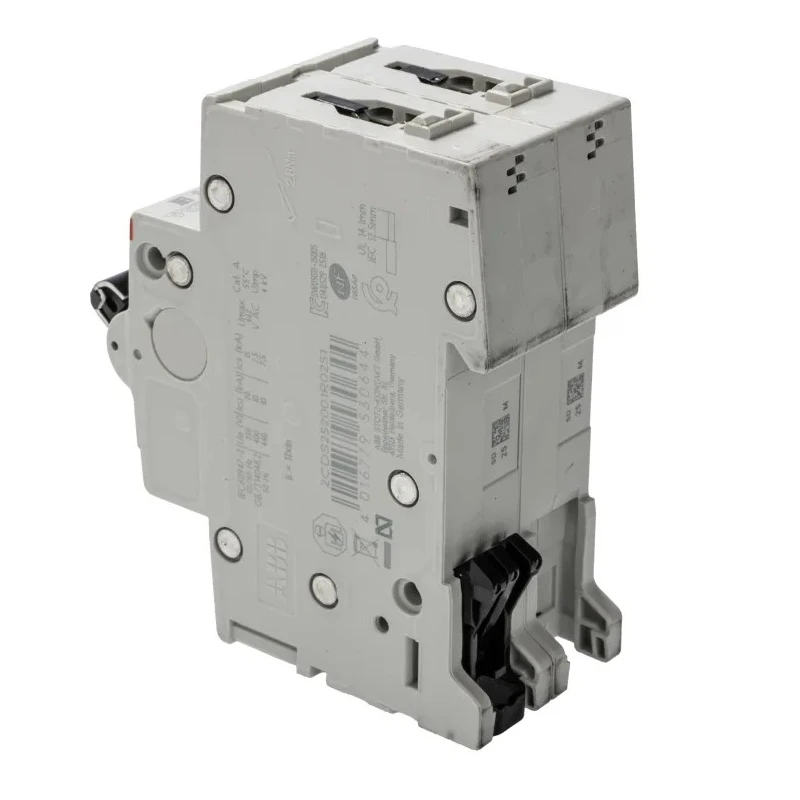

ABB System Pro M Compact S200 Miniature Circuit Breaker, 2-Pole, 25A, Type D, 400V AC, 125V DC, 10 2CDS252001R0251 S202-D25

ABB 2CDS252001R0251 S202-D25 Miniature Circuit Breaker is designed for commercial and industrial electrical circuit protection applications. It features a 2-pole configuration for dual circuit management and a 25A current rating suitable for moderate electrical loads. The breaker offers Type D tripping characteristics, providing rapid interruption during short circuit events.

This MCB operates efficiently at a rated AC voltage of 400V and DC voltage of 125V, making it versatile for diverse electrical systems. Its substantial breaking capacity of 10 kA allows safe management of fault currents, enhancing system protection reliability.

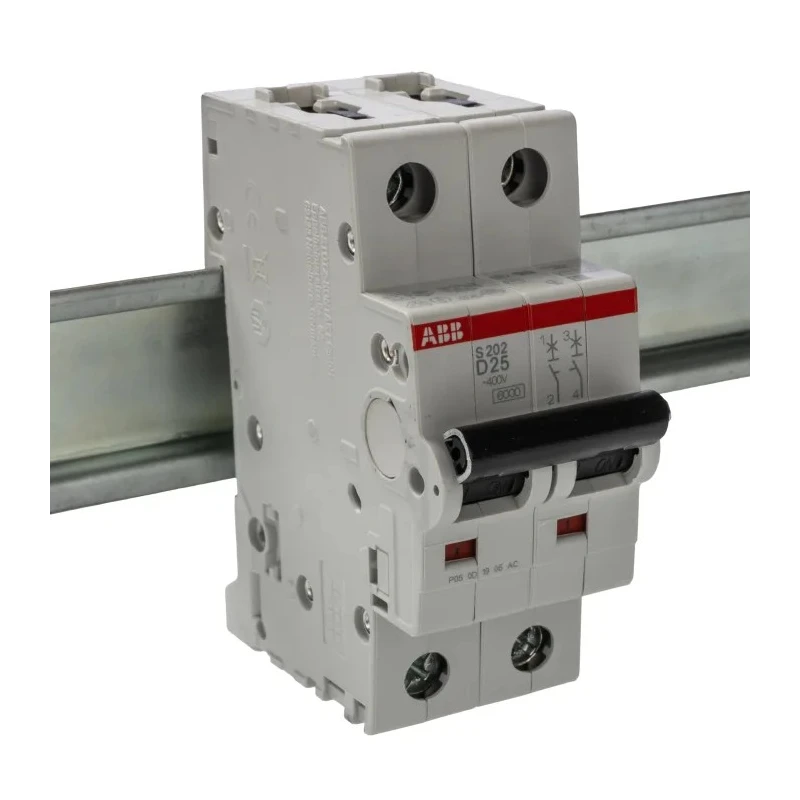

The unit is compact with dimensions of 69mm height, 35mm width, and 69mm depth, optimized for installation on DIN rails within electrical panels. Screw terminals ensure robust and secure electrical connections. IP40 and IP20 ingress protection ratings contribute to durability by guarding against dust ingress and accidental contacts.

Equipped with a lever-type reset actuator, the breaker allows for quick and easy resetting after tripping incidents. Its thermomagnetic and electromagnetic tripping mechanisms ensure precise overload and short circuit detection and interruption.

ABB's System Pro M Compact S200 series Miniature Circuit Breakers conform to IEC/EN 60947-2 and IEC/EN 60898-1 standards, underscoring their adherence to international safety and quality benchmarks. The product is manufactured in Germany, reflecting stringent production standards.

Offers thermal electromechanical tripping for overload protection. Features Type D tripping characteristics for fast short-circuit response. Supports rated voltages of 400V AC and 125V DC. Has a high breaking capacity of 10 kA for handling significant fault currents.

Compact design with DIN rail mounting compatibility for easy installation. Constructed with screw terminal type for secure connections. IP40 and IP20 ratings provide protection against dust and secondary contact. Dimensions: 69mm height, 35mm width, 69mm depth.

Equipped with lever reset actuator type for straightforward reset. Complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards ensuring safety and quality.

This Miniature Circuit Breaker is ideal for protecting electrical circuits in industrial machinery, commercial electrical systems, control panels, and automation environments. Its robust design and protective features enhance operational safety and ensure consistent circuit integrity.
