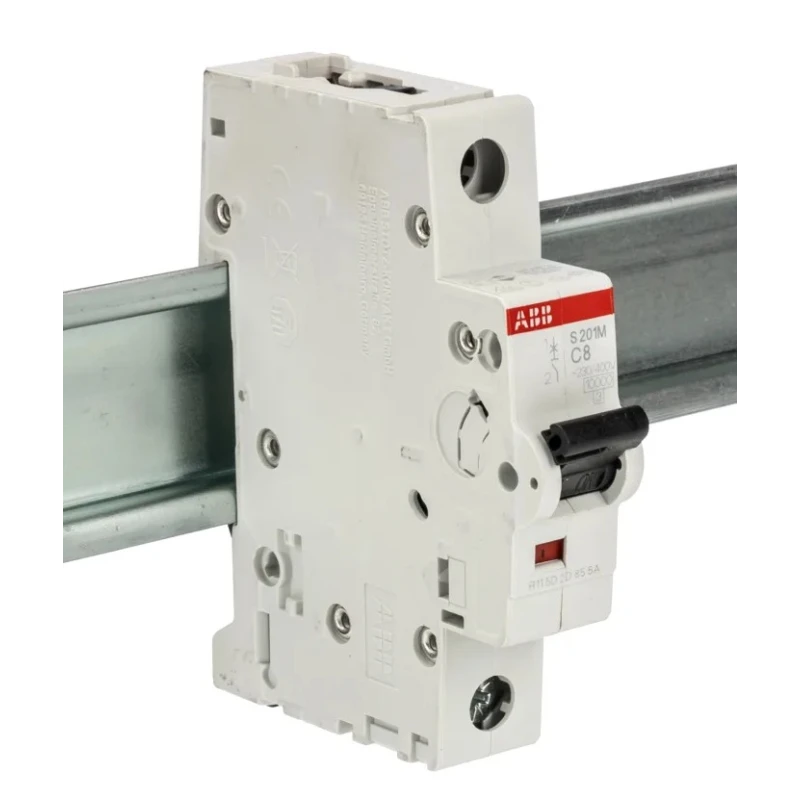

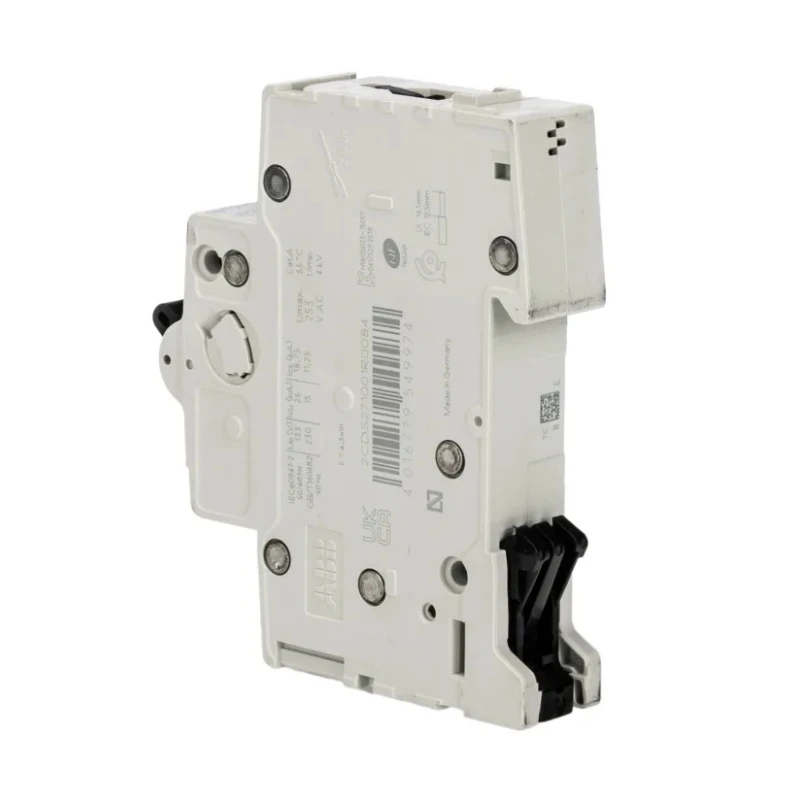

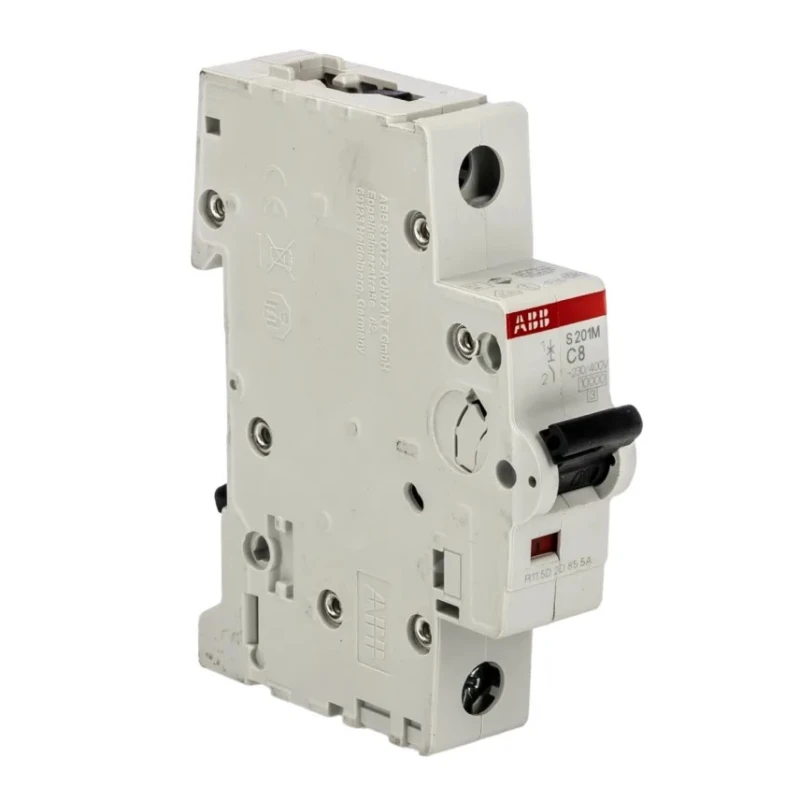

ABB System Pro M Compact Miniature Circuit Breaker 1-Pole 8A Type C 230V AC 72V DC 10 kA Breaking 2CDS271001R0084 S201M-C8
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS271001R0084 S201M-C8 |
| Depth | 69mm |
| IP Rating | IP40, IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 8A |
| Series | S200M |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60898-1IEC/EN 60947-2 |
| Rated AC Voltage | 230V ac |
| Rated DC Voltage | 72V dc |
| Tripping Characteristics | Type C |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Thermal, Electromechanic |
Key Features
- Designed for effective short circuit protection with thermal and electromechanical tripping mechanism.
- Compact System Pro M Compact S200M series allows easy DIN rail mounting.
- Rated to withstand breaking capacity of 10 kA for reliable system durability.
- Suitable for commercial, industrial, and automation power distribution applications.
- Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards for safety and performance.
- IP40 and IP20 rated for protection in varied environmental conditions.
- Constructed with screw terminal type for secure electrical connections.
- Operating temperature range from -25°C to +55°C for reliable ambient condition tolerance.
Product Description
ABB 2CDS271001R0084 S201M-C8 System Pro M Compact S200M series miniature circuit breaker offers robust electrical system protection with an 8 ampere current rating and Type C trip characteristic. This 1-pole MCB is engineered for both alternating current at 230 volts and direct current at 72 volts, ensuring flexible application across commercial, industrial, and automation environments.
This device features a thermal and electromechanical tripping mechanism, which provides precise and reliable overcurrent protection, preventing damage from short circuits and overloads. The 10 kiloampere breaking capacity ensures resilience in fault conditions, enhancing system longevity. Installation is facilitated by the standard DIN rail mount and screw-type terminals that secure wiring firmly.
The compact dimensions (88mm height, 17.5mm width, and 69mm depth) enable integration into crowded electrical panels without consuming excessive space. Its robust casing is rated IP40 and IP20 for ingress protection, suitable for varied environmental conditions.
Compliant with IEC/EN 60898-1 and IEC/EN 60947-2 safety standards, this MCB guarantees internationally recognized quality and safety. It is rated for operation within ambient temperatures ranging from -25 to +55 degrees Celsius, making it adaptable to diverse climates.
Effective short circuit and overload protection with thermal and electromechanical tripping. Compact and space-saving System Pro M Compact S200M form factor. High breaking capacity of 10 kA for enhanced system safety. Standard DIN rail mounting with screw terminal connections.
IP40 and IP20 environmental protection ratings. Compliance with IEC safety and performance standards. Wide operating temperature range for reliable performance. Manufactured in Germany with sustainability focus, designed for disassembly.
This ABB Miniature Circuit Breaker is ideal for protecting electrical installations in industrial facilities, commercial buildings, and automation systems requiring precise and reliable circuit protection. EnvMart offers this essential component with detailed technical support and compatibility assurance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 8A, suitable for various applications requiring reliable circuit protection.
It features a breaking capacity of 10 kA, providing effective protection against short circuits.
This unit is rated for 230V AC and 72V DC, making it versatile for different electrical systems.
It utilizes a thermal and electromechanical tripping mechanism for precise overcurrent protection.
It is designed for standard DIN rail mounting, facilitating easy installation in electrical panels.
The dimensions are 88mm in height, 17.5mm in width, and 69mm in depth, allowing for compact integration.
It has an IP40 and IP20 rating, providing adequate protection against dust and moisture in various conditions.
It complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring safety and performance in electrical installations.
The operating temperature range is from -25°C to +55°C, making it suitable for diverse ambient conditions.
It features screw terminal connections, ensuring secure and reliable electrical connections.
It is suitable for commercial, industrial, and automation power distribution applications, providing essential circuit protection.
This miniature circuit breaker is manufactured in Germany, reflecting a focus on quality and sustainability.
