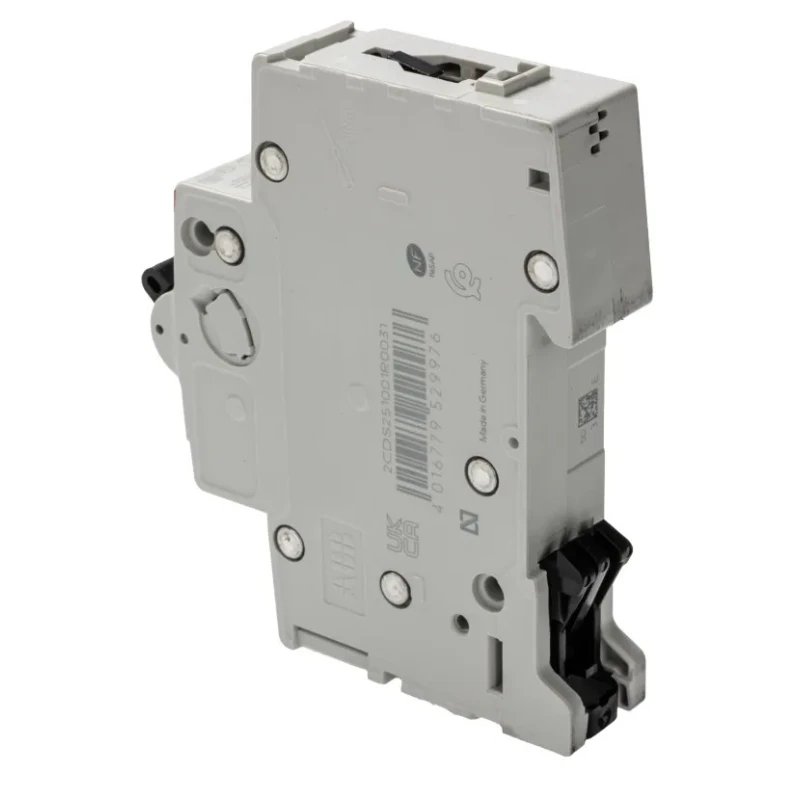

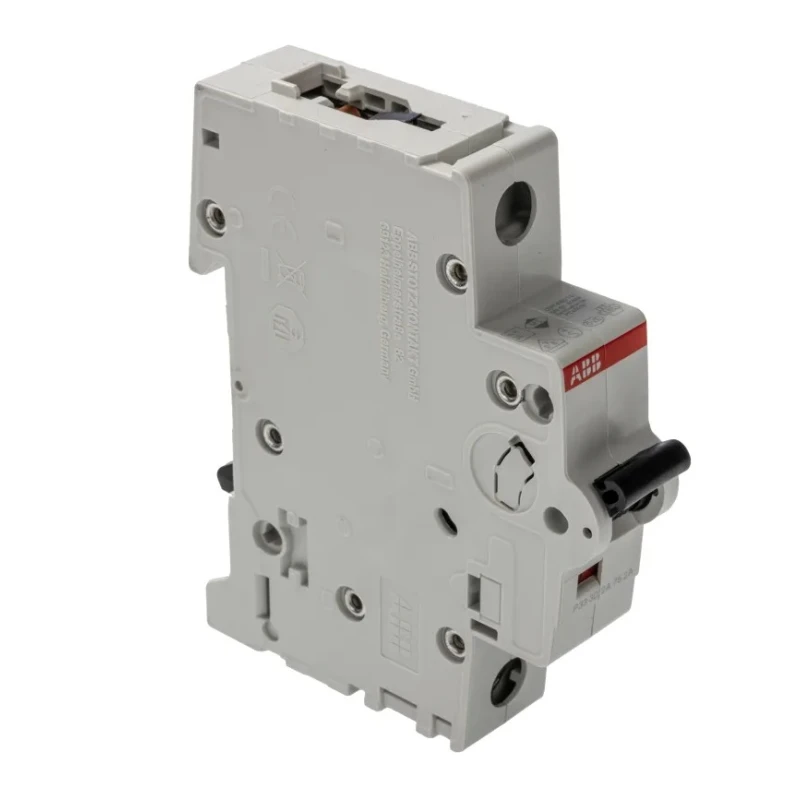

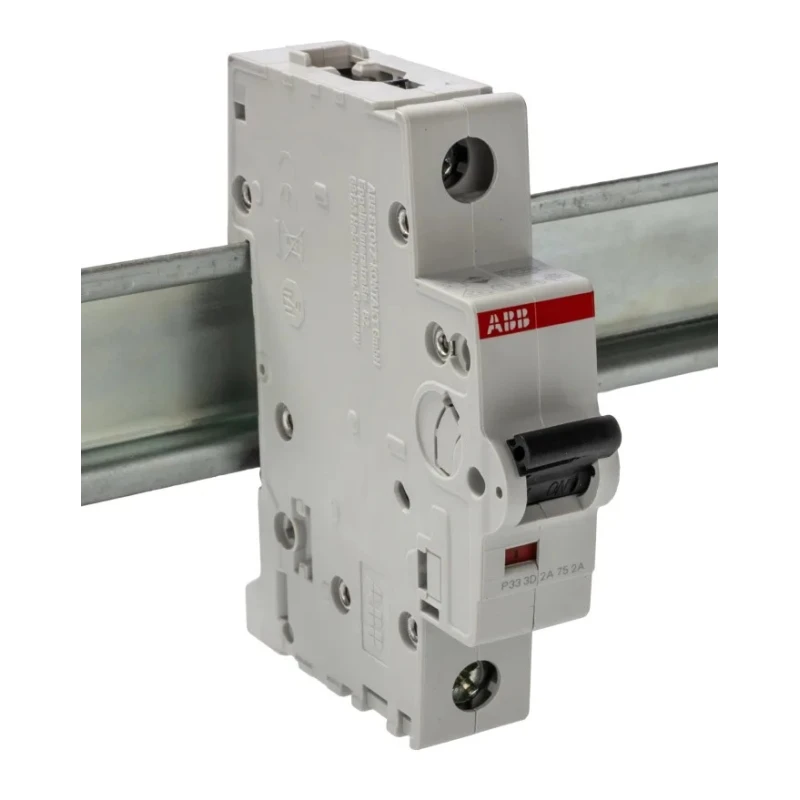

ABB System Pro M Compact S200M Miniature Circuit Breaker, 1-Pole, 1A Current Rating, Type D 2CDS271001R0011 S201M-D1
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS271001R0011 S201M-D1 |
| Depth | 69mm |
| IP Rating | IP20, IP40 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 1A |
| Series | S200M |
| Terminal type | Screw |
| Breaking Capacity | 15kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 60898-1IEC/EN 60947-2 |
| Rated AC Voltage | 230V ac |
| Rated DC Voltage | 72V dc |
| Tripping Characteristics | Type D |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Aluminium Chloride |
| Reset Actuator Type | Lever |
Key Features
- Provides type D tripping characteristics for inductive loads and specific load protection.
- Compact design suitable for DIN rail mounting in commercial and industrial electrical systems.
- Thermal and electromechanical tripping mechanisms ensure effective overload and short circuit protection.
- Rated for 230V AC and 72V DC with a breaking capacity of 15kA for enhanced safety.
- Equipped with screw terminals and lever reset actuator for easy installation and maintenance.
- Conforms to IEC/EN 60898-1 and IEC/EN 60947-2 standards ensuring compliance and quality.
- IP20 and IP40 ratings protect against ingress in various environmental conditions.
- Designed for disassembly and is part of ABB’s System Pro M Compact S200M series.
Product Description
ABB 2CDS271001R0011 S201M-D1 System Pro M Compact S200M Miniature Circuit Breaker is a high-quality circuit protection device designed for industrial and commercial electrical systems. It provides 1A current rating with type D tripping characteristics, optimized for inductive loads and applications with varying currents. This miniature circuit breaker protects circuits against overloads and short circuits with a breaking capacity of 15kA at rated voltages.
The device supports both AC and DC operation with rated voltages of 230V AC and 72V DC. Its compact form factor, measuring 17.5mm in width, 69mm depth, and 88mm height, allows for easy installation on DIN rail mount systems. The MCB features screw terminals for secure wiring connections and a lever reset actuator for convenient manual resetting after tripping events.
This ABB MCB conforms to international standards IEC/EN 60898-1 and IEC/EN 60947-2, ensuring high reliability and safety. It offers IP20 and IP40 ingress protection ratings for dust and water resistance in typical electrical installations. The tripping mechanism uses aluminum chloride technology to deliver precise and fast response times for circuit faults.
The product aligns with ABB's Better World initiatives, including a designed-for-disassembly concept that supports sustainability goals in electrical installations. Type D tripping for inductive load protection. DIN rail mounting capability for easy integration.
Thermal and electromechanical trip mechanisms. 15kA breaking capacity supports high fault current scenarios. Standard compliance with IEC/EN 60898-1 and IEC/EN 60947-2. IP20 and IP40 protection against ingress. Lever actuator for manual reset post-trip.
Compact dimensions and reliable screw terminals.
This Miniature Circuit Breaker is widely used in protecting circuits for commercial buildings, industrial machinery, automation systems, and general electrical installations where reliable overload and short circuit protection is essential.
Explore the extensive range of ABB industrial electrical components and circuit protection devices available at EnvMart for your professional and industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 1A, making it suitable for various applications requiring low current protection.
It is rated for 230V AC and 72V DC, allowing it to operate in both alternating and direct current applications.
The breaking capacity is 15kA, which supports high fault current scenarios, ensuring effective circuit protection.
It provides Type D tripping characteristics, optimized for inductive loads and applications with varying currents.
The dimensions are 17.5mm in width, 69mm in depth, and 88mm in height, facilitating compact installation on DIN rail systems.
This unit has IP20 and IP40 ratings, providing protection against ingress of dust and water in various environmental conditions.
It is designed for DIN rail mounting, which allows for easy integration into electrical systems.
It features screw terminals for secure wiring connections, ensuring reliable electrical contact.
It conforms to IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring compliance and quality in electrical installations.
It is equipped with a lever reset actuator, allowing for convenient manual resetting after a tripping event.
The country of origin for this product is Germany, indicating its manufacturing location.
This model is part of the System Pro M Compact series, which includes various circuit protection devices.
