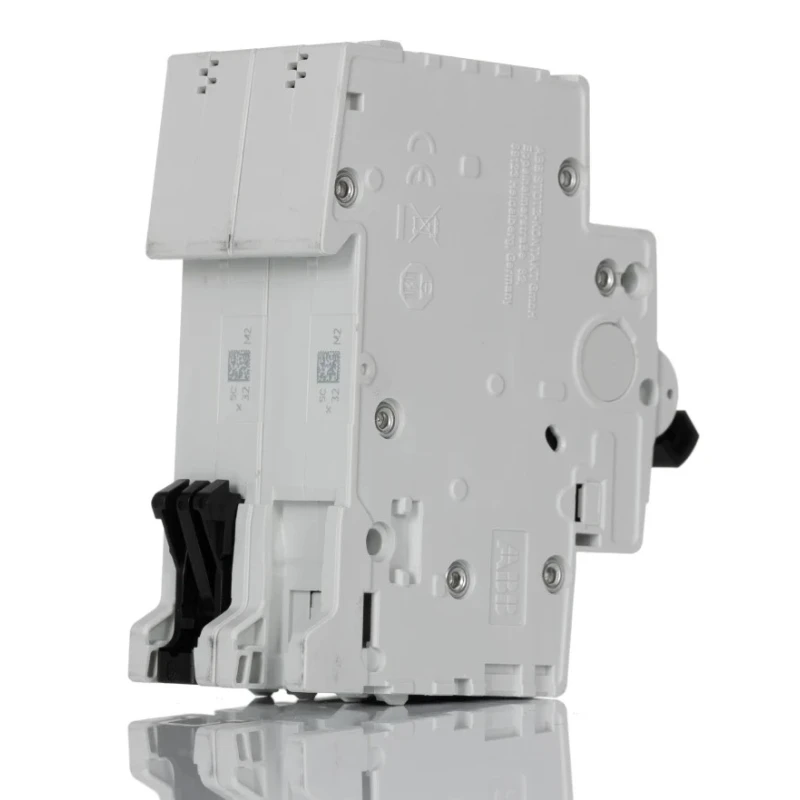

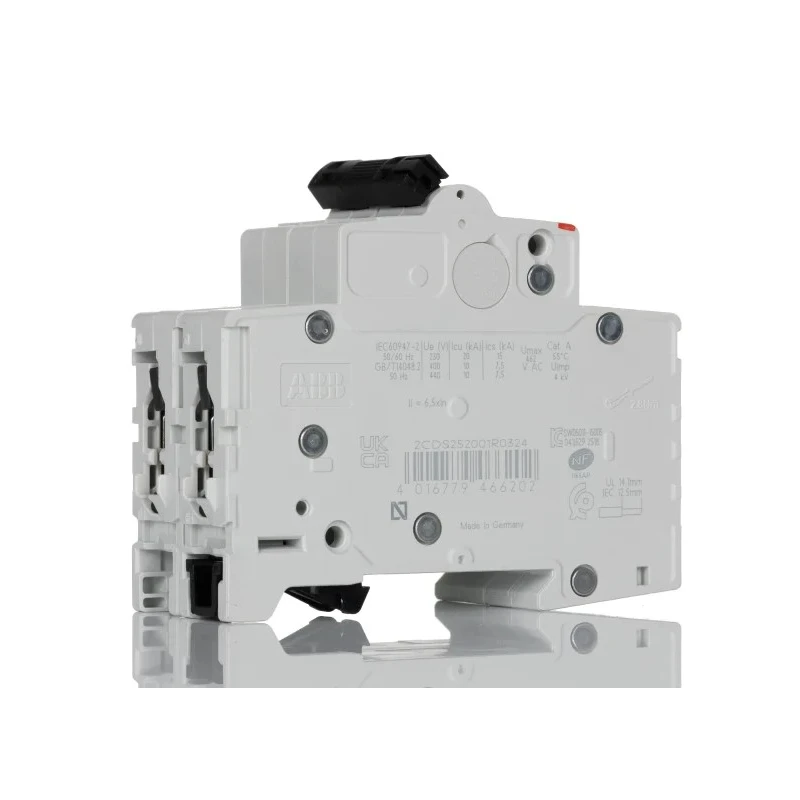

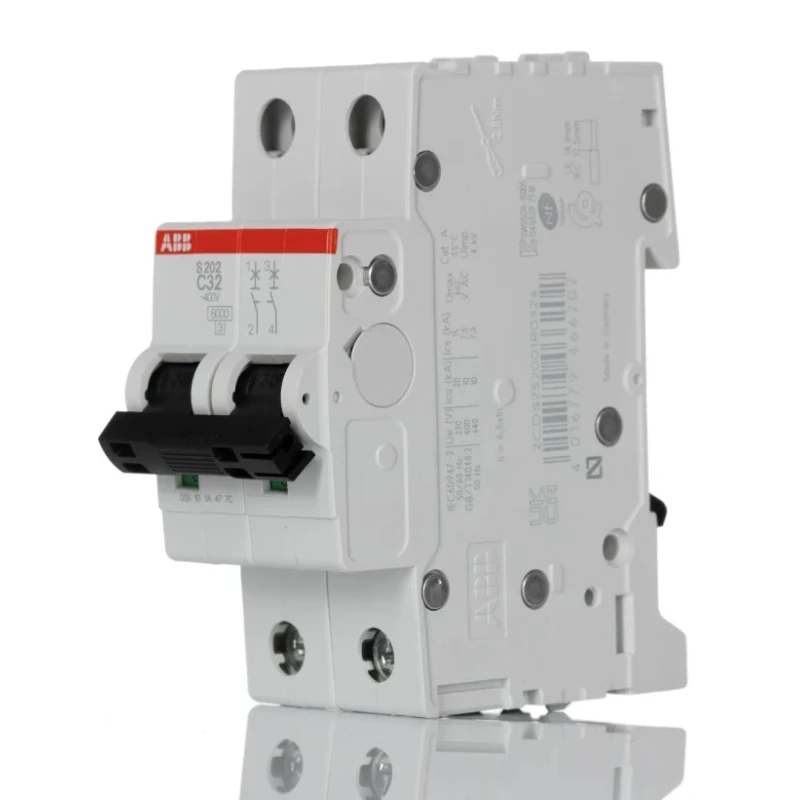

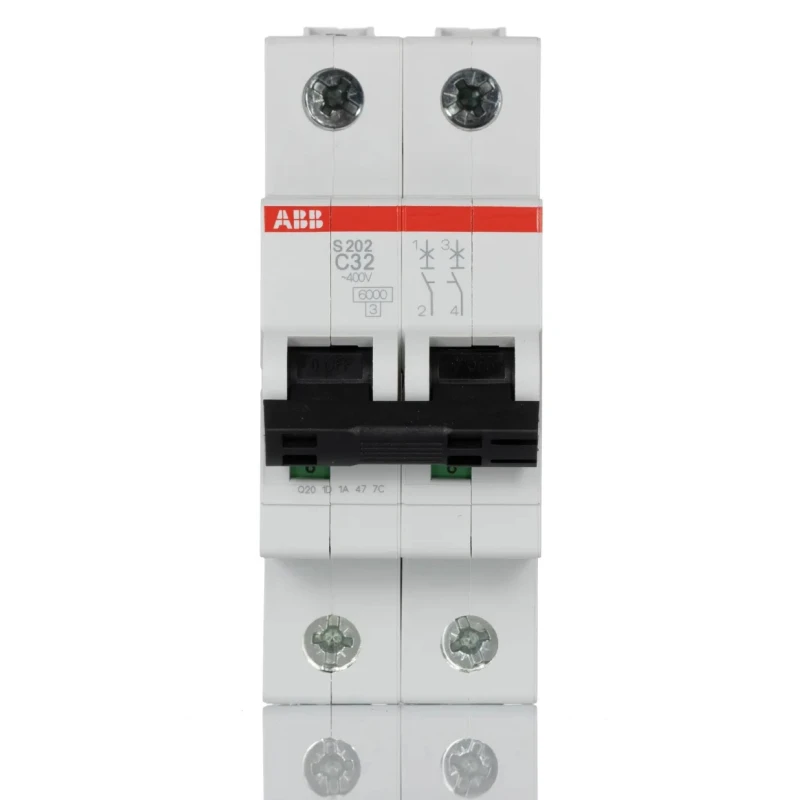

ABB System Pro M Compact S200 Miniature Circuit Breaker, 2-Pole, 32A, Type C, 400V AC, 125V DC, 6 2CDS252001R0324 S202-C32
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS252001R0324 S202-C32 |
| Depth | 69mm |
| IP Rating | IP20, IP40 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Current Rating | 32A |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 2 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 125V dc |
| Tripping Characteristics | Type C |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Lever |
Key Features
- This 2-pole MCB supports both 400V AC and 125V DC voltage ratings.
- The device features a 6 kA breaking capacity for effective short circuit interruption.
- It is suitable for DIN rail mounting and includes screw terminals for secure connections.
- The thermal tripping mechanism provides delayed overload protection for machinery safety.
- Operating temperature range is from -25°C to +55°C for usage in diverse environments.
- It complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards ensuring high quality.
Product Description
ABB 2CDS252001R0324 S202-C32 System Pro M Compact S200 Miniature Circuit Breaker is designed for electrical protection in industrial, commercial, and residential applications. With a current rating of 32A and Type C tripping characteristics, it effectively safeguards circuits from overloads and short circuits.
The breaker supports 400V AC and 125V DC operations, making it versatile for AC and DC supply systems. Its 6 kA breaking capacity ensures safe interruption of fault currents, protecting connected devices and machinery from damage.
Equipped with a thermal tripping mechanism, this MCB offers delayed overload protection, while an electromechanical mechanism handles short-circuit trips. The device features red and green indicators for ON/OFF status monitoring at a glance.
The breaker is easy to install on DIN rails and uses screw-type terminals for a robust and secure connection. Compact dimensions (88mm height, 35mm width, 69mm depth) allow efficient panel space usage. The operating temperature range from -25°C to +55°C ensures dependable functionality in diverse environments.
This product conforms to IEC/EN 60898-1 and IEC/EN 60947-2 standards, reflecting stringent international safety and performance criteria. Made in Germany, the breaker is engineered for high reliability and long-term use in telecommunications, cooling systems, warehousing, and distribution center applications.
This 2-pole Miniature Circuit Breaker offers 32A current rating with type C tripping. Supports both 400V AC and 125V DC with 6 kA breaking capacity. DIN rail mountable with screw terminals for installation flexibility. Thermal tripping provides delayed overload protection for safety.
Compact design suitable for industrial and commercial electrical panels. Conforms to IEC/EN 60898-1 and IEC/EN 60947-2 standards for compliance assurance. Explore a wide range of circuit breakers and electrical protection devices in the Electronics & Electricals category on EnvMart to ensure safety and efficiency for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 32A, making it suitable for various electrical applications.
It supports both 400V AC and 125V DC voltage ratings, providing versatility for different supply systems.
The breaking capacity of this miniature circuit breaker is 6 kA, ensuring effective interruption of fault currents.
It is designed for DIN rail mounting, which allows for easy installation in electrical panels.
This model features screw terminals for secure and reliable connections.
The operating temperature range is from -25°C to +55°C, allowing it to function in diverse environments.
The dimensions are 88mm in height, 35mm in width, and 69mm in depth, making it compact for panel space usage.
It has Type C tripping characteristics, which are suitable for protecting circuits with moderate inrush currents.
It complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring adherence to international safety and performance criteria.
This unit utilizes a thermal tripping mechanism that provides delayed overload protection for enhanced safety.
This miniature circuit breaker is made in Germany, reflecting high engineering standards.
It features red and green indicators that allow for quick visual monitoring of the ON/OFF status of the circuit breaker.
