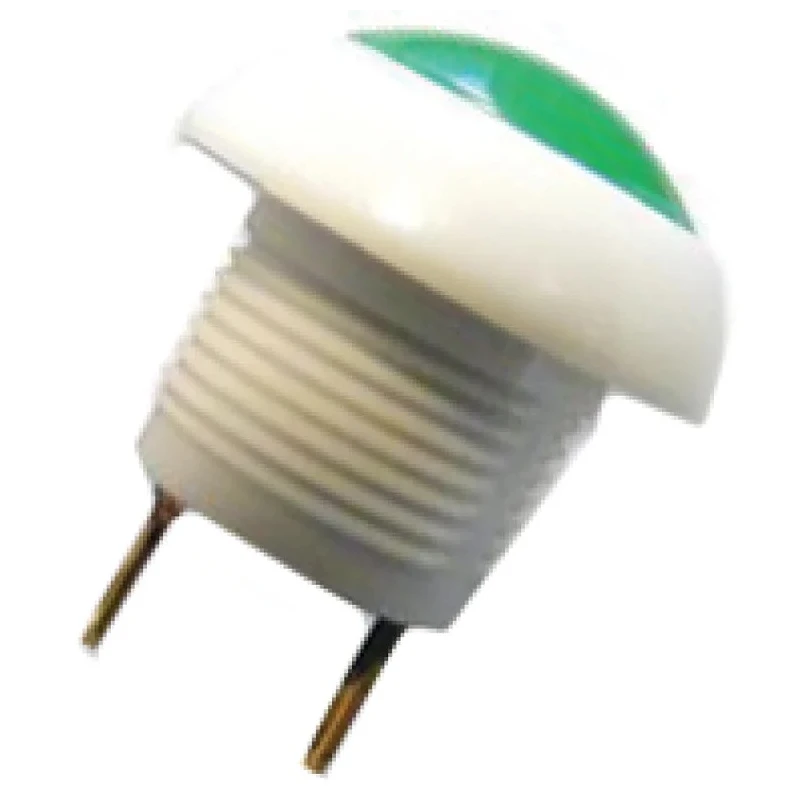

Otto P9 Series Push Button Switch, Momentary, Panel Mount, 12 mm Cutout, DPDT, Green LED, IP64, 28 V dc 115 V ac P9-113195
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Otto |
| Model | P9-113195 |
| IP Rating | IP64 |
| Mount Type | Panel |
| Series | P9 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -55°C |
| Panel Cutout Size | 12 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Switch Operation | Momentary |
| Actuator Colour | Green |
| Contact DC Voltage | 28V dc |
| Actuator Style | Button |
| Switch Contact Current | 5A |
| Contact AC Voltage | 115V ac |
Key Features
- Features a green illuminated LED for visual indication.
- Sealed to IP64 for protection against dust and water ingress.
- Designed with a panel mount and On-On switch configuration.
- Operates at 28 V dc and 115 V ac with a contact current rating of 5 A.
- Suitable for extreme temperature range from -55°C to 85°C.
- Momentary action with a positive tactile feedback.
- Constructed for durability with approximately one million mechanical operations life expectancy.
- Ideal for use in control grips, heavy equipment, instruments, and demanding industrial applications.
Product Description
Otto P9-113195 is a high-quality push button switch from the P9 series featuring a white body with a green LED illuminated dome-style actuating button. This panel mount switch utilizes a momentary On-On DPDT contact configuration and requires a 12 mm cutout size for installation.
Designed to withstand harsh industrial environments, the switch is sealed to an IP64 rating, providing protection against dust and water ingress. It operates reliably under a wide temperature range from -55°C to 85°C, making it suitable for various industrial, manufacturing, and control system applications.
The P9-113195 switch is rated for 28 V dc and 115 V ac voltages with a contact current rating of 5 A. Its mechanical endurance extends to approximately one million operations, supported by an electrical endurance of around 25,000 operations, ensuring both durability and long service life. The switch offers positive tactile feedback for precise user control.
This switch’s design and performance standards comply with RoHS, ensuring environmentally compliant manufacturing and usage standards.
Typical applications include use in control grips, heavy equipment, instrumentation panels, and other demanding situations requiring rugged and reliable push button switches. The white bezel and body, combined with the green LED illumination, offer clear visual status indication on equipment panels.
Green illuminated LED for clear operational indication. Sealed to IP64 for reliable operation in harsh environments. Momentary action with On-On DPDT switch configuration. Panel mount with 12 mm cutout size for ease of installation.
Durable construction offering around one million mechanical operations lifespan. Rated for 28 V dc and 115 V ac voltages. Contact current rating of 5 A suitable for many control applications. Operates reliably in temperatures from -55°C to 85°C.
RoHS compliant for environmental safety. Explore more Push Button Switches and components from Otto and other leading brands in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Otto P9-113195 push button switch has an IP rating of IP64, providing protection against dust and water ingress.
This model features a DPDT (Double Pole Double Throw) contact configuration.
The switch operates reliably within a temperature range of -55°C to 85°C.
It is rated for 28 V dc and 115 V ac voltages.
The contact current rating for this switch is 5 A.
The required cutout size for panel mounting the Otto P9-113195 is 12 mm.
This switch has a mechanical endurance of approximately one million operations.
It utilizes a momentary switch operation with a positive tactile feedback.
Yes, it complies with RoHS standards for environmentally safe manufacturing and usage.
The switch features solder type terminals.
It is suitable for use in control grips, heavy equipment, instrumentation panels, and other demanding industrial applications.
The switch features a green LED illumination for clear operational indication.
