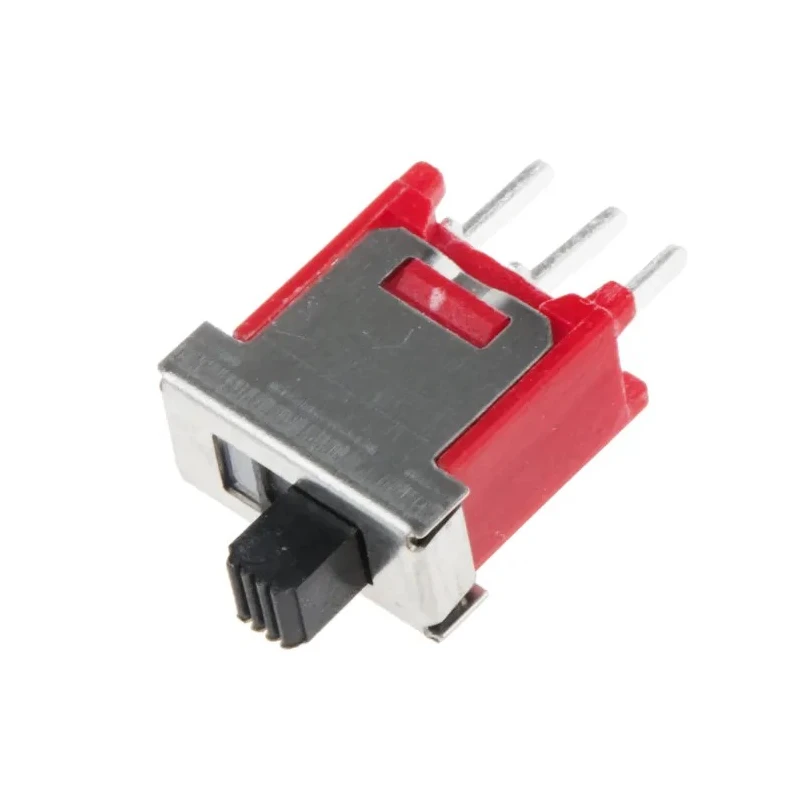

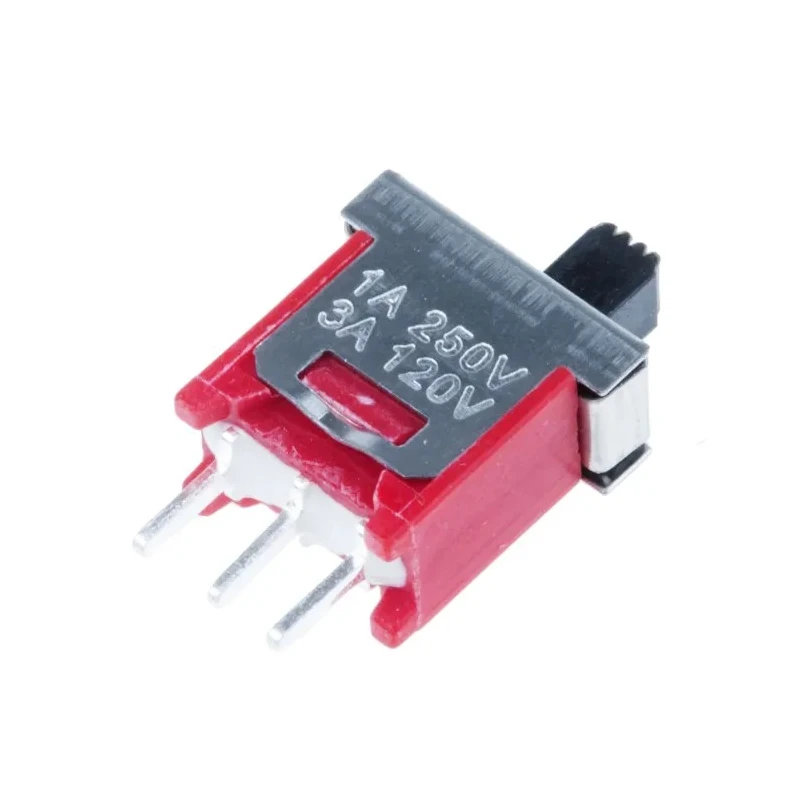

RS PRO PCB Slide Switch SPDT On-Off-On 3A Nylon 734-7264

RS PRO 734-7264 PCB Slide Switch SPDT On-Off-On 3A Nylon is a compact and robust slide switch designed for reliable switching in electronic circuits. It features a single pole double throw (SPDT) contact configuration with On-Off-On operation, suitable for precise circuit control in various industrial and commercial electronics applications.

The switch has a current rating of 3 Amperes and supports contact voltages of up to 28V DC and 250V AC, making it ideal for low voltage circuit control. Its black nylon actuator combined with a durable DAP case and tin plated brass housing ensures stable mechanical performance. The switch is designed for PCB mounting with through-hole terminals, facilitating easy wave soldering and integration into circuit boards.

With a mechanical life of 30,000 cycles, this slide switch is engineered for longevity, and can operate reliably within temperature ranges from -30°C to 85°C. Typical applications include controlling handheld electronic devices, instrumentation, white goods, medical equipment, IT, and telecommunications hardware.

The compact footprint with dimensions of approximately 10.16mm length, 9.2mm depth, and 5.08mm width makes it ideal for space-constrained PCB designs. Its compliance with standards such as cULus and RoHS assures quality and safety for industrial and commercial uses.

Features a single pole double throw (SPDT) contact configuration. On-Off-On switch operation for versatile circuit control. Supports up to 3A switch contact current. Durable black nylon actuator material improves mechanical life.

Designed for PCB mounting with through-hole terminal type. Rated for 28V DC and 250V AC contact voltage applications. Mechanical life expectancy of 30,000 cycles. Operates effectively within -30°C to 85°C temperature range.

Compact dimensions suitable for tight PCB layouts.

This product is suitable for electrical engineering, electronics manufacturing, laboratory instrumentation, telecommunications, and medical device industries. It provides durable and precise switching capability for a variety of electronic control applications. Browse the Electronics & Electricals category on EnvMart for more high-quality PCB slide Switches and related components.
