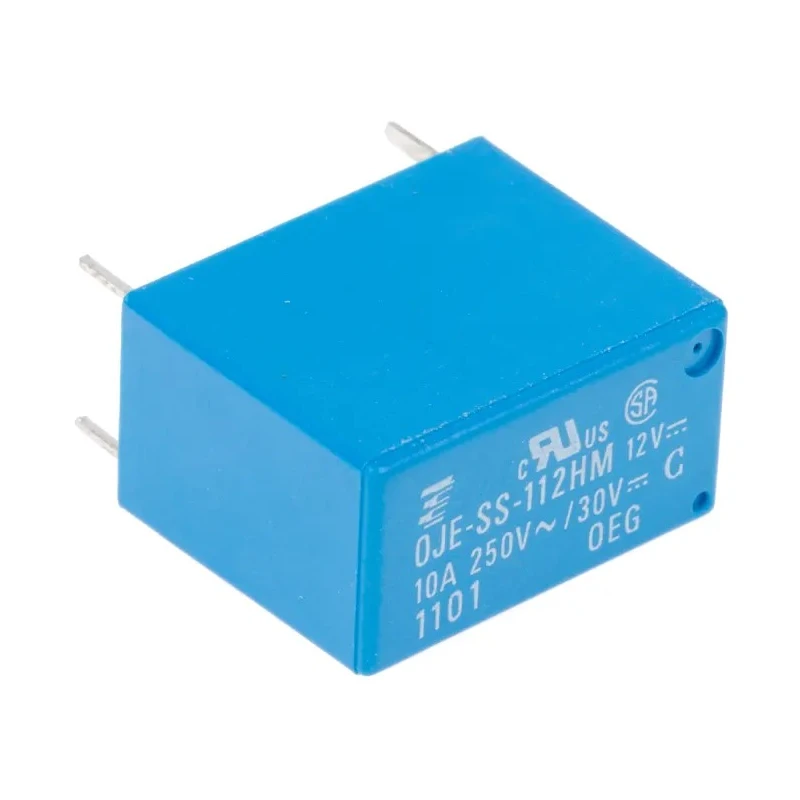

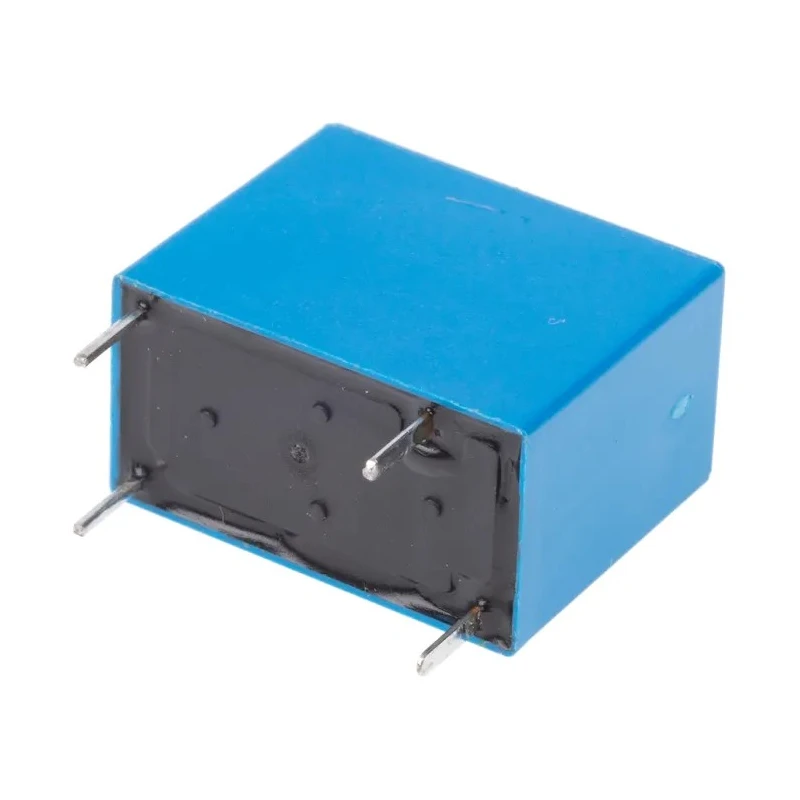

TE Connectivity PCB Power Relay 12V DC Coil, 10A Switching Current, SPST OJE-SS-112HM,000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 14.7mm |
| Length | 18.2mm |
| Model | OJE-SS-112HM,000 |
| Width | 10.2mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | OJE |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | CSA, ELV, IEC, REACH, RoHS, UL, VDE |
| Coil Resistance | 320Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 450mW |
Key Features
- Operates with a coil voltage of 12V DC ensuring reliable switching performance.
- Single Pole Single Throw (SPST) contact configuration for precise control.
- Designed for PCB mounting with solder terminal type for secure connections.
- Supports switching AC voltage up to 277V AC and DC voltage up to 30V DC.
- Functions effectively within a temperature range from -30°C to 70°C.
- Coil resistance is 320 ohms providing stable coil load conditions.
- Compact dimensions of 14.7mm height, 18.2mm length, and 10.2mm width facilitate easy PCB integration.
- Constructed with silver alloy contact material for high conductivity and durability.
Product Description
TE Connectivity OJE-SS-112HM,000 PCB Power Relay is engineered for reliable operation in electronic and industrial applications requiring switching of electrical loads.
This relay features a 12V DC coil voltage and supports switching currents of 10A, suitable for various control circuit designs. The SPST contact configuration allows for straightforward circuit control functions.
Mountable on printed circuit boards, its solder terminal type ensures secure and stable electrical connections. The relay handles switching voltages up to 277V AC and 30V DC, making it versatile for multiple voltage systems.
Designed to operate reliably in harsh environments, it withstands temperatures ranging from -30°C to 70°C. The coil resistance of 320 ohms and coil power consumption of 450mW contribute to its energy efficiency.
The relay's compact size (14.7mm height, 18.2mm length, 10.2mm width) allows it to fit into dense PCB layouts. Silver alloy contacts ensure high conductivity and long operational life.
Operates with a coil voltage of 12V DC ensuring reliable switching performance. Single Pole Single Throw (SPST) contact configuration for precise control. Designed for PCB mounting with solder terminal type for secure connections.
Supports switching AC voltage up to 277V AC and DC voltage up to 30V DC. Functions effectively within a temperature range from -30°C to 70°C. Coil resistance is 320 ohms providing stable coil load conditions. Compact dimensions of 14.7mm height, 18.2mm length, and 10.2mm width facilitate easy PCB integration.
Constructed with silver alloy contact material for high conductivity and durability. Complies with industry standards including CSA, ELV, IEC, REACH, RoHS, UL, and VDE for safety and quality assurance. This power relay is widely used in industrial automation, control panels, HVAC systems, and electrical manufacturing processes where precise switching is critical.
Explore more products and related Power Relays in the Electronics & Electricals category at EnvMart to meet diverse automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 12V DC, ensuring reliable switching performance.
This model supports a maximum switching current of 10A, making it suitable for various control circuit designs.
The relay has compact dimensions of 14.7mm in height, 18.2mm in length, and 10.2mm in width, facilitating easy PCB integration.
It features a Single Pole Single Throw (SPST) contact configuration for precise control in circuit applications.
The coil resistance is 320 ohms, which provides stable coil load conditions during operation.
The relay can switch AC voltage up to 277V AC and DC voltage up to 30V DC, making it versatile for multiple voltage systems.
It operates effectively within a temperature range from -30°C to 70°C, allowing for use in various environments.
The contacts are constructed from silver alloy material, which ensures high conductivity and durability.
This relay is designed for PCB mounting with a solder terminal type, ensuring secure and stable electrical connections.
It complies with several industry standards including CSA, ELV, IEC, REACH, RoHS, UL, and VDE for safety and quality assurance.
The coil power consumption is 450mW, contributing to its energy efficiency in operation.
This power relay is widely used in industrial automation, control panels, HVAC systems, and electrical manufacturing processes where precise switching is critical.
