Jaeger Industrial Circular Connector Metal Housing 12 Contacts Female Bayonet Miniature IP50 IP54 6307 120 06
Specifications
| Country of Origin | France |
|---|---|
| Brand | Jaeger |
| Current | 15A |
| IP Rating | IP50, IP54 |
| Housing Material | Metal |
| Series | 6307 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Number of Contacts | 12 |
| Contact Gender | Female |

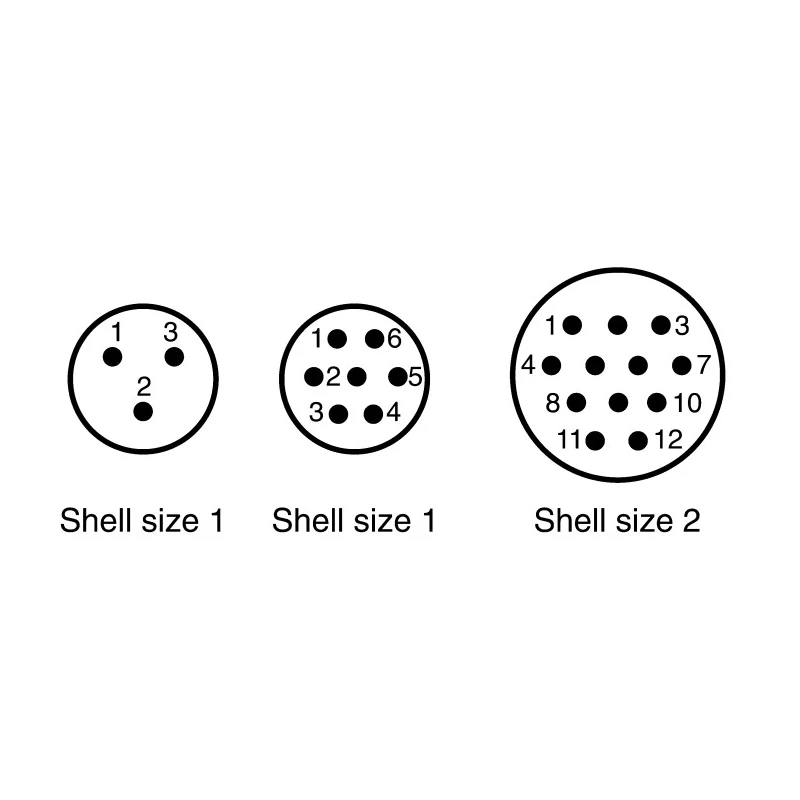

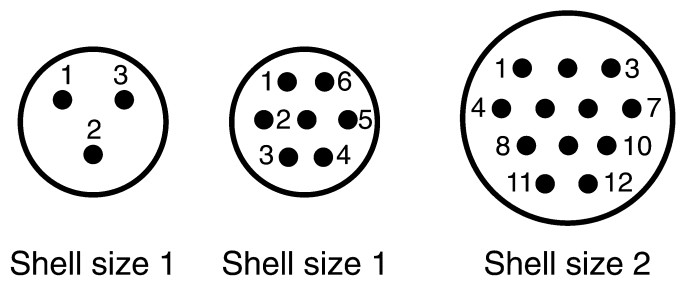

| Shell Size | 2 |
| Mating Type | Bayonet |
| Connector Size | Miniature |
Key Features
- Durable metal housing suitable for industrial applications.
- Supports current rating up to 15A for reliable electrical performance.
- IP50 and IP54 protection ratings provide resistance against dust and water ingress.
- Operates efficiently in temperatures ranging from -40°C to 100°C.
- Termination type is crimp for secure and permanent wire connections.
- Shell size 2 ensures compact and robust form factor.
- Designed for frequent mating and unmating cycles with bayonet locking.
- Manufactured in France ensuring quality engineering standard.
Product Description
Jaeger 6307 120 06 is an industrial-grade circular connector designed for rugged electronics and electrical applications requiring reliable connectivity. This connector features a sturdy metal housing that provides excellent mechanical protection and durability for industrial environments. With 12 female contacts arranged in a miniature size, it is optimized for compact installations demanding high performance.
The connector supports a continuous current of 15 A ensuring robust electrical conduction in harsh conditions. It conforms to IP50 and IP54 ratings, giving protection against limited dust ingress and splashing water, making it ideal for factory floors, control panels, machinery, and automation systems.
Operating temperature ranges from -40°C up to 100°C, allowing dependable performance across diverse ambient conditions. The bayonet mating system offers quick and secure connections with high retention force and easy assembly during maintenance cycles. The crimp termination type enables stable and permanent connection of cables, suitable for industrial wiring harnesses and equipment interconnects.
This connector comes with a shell size 2, balancing compact size and ease of handling. It has been manufactured in France to high standards ensuring consistent quality and long service life. It is part of the Jaeger 6307 series known for industrial reliability and versatility.
Durable metal housing for industrial use. 12 female contacts in miniature size. 15A current rating for electrical reliability. IP50 and IP54 rated for dust and water resistance. Bayonet locking mechanism for secure mating.
Crimp termination for reliable cable connection. Operating temperature range -40°C to 100°C. Shell size 2 for compact design. Manufactured in France ensuring quality.
This connector is well-suited for industrial, manufacturing, automation, and electrical power distribution applications. It provides robust electrical and mechanical connections under demanding conditions. Explore the Jaeger product range on EnvMart for more Industrial Circular Connectors and power components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a maximum continuous current rating of 15A, ensuring reliable electrical performance in various applications.
This connector has IP50 and IP54 ratings, providing protection against limited dust ingress and splashing water, making it suitable for industrial environments.
It operates efficiently within a temperature range of -40°C to 100°C, allowing for dependable performance in diverse ambient conditions.
This model features 12 female contacts, arranged in a miniature size for compact installations.
It utilizes crimp termination for secure and permanent wire connections, suitable for industrial wiring harnesses.
This connector employs a bayonet mating system, which allows for quick and secure connections with a high retention force.
The housing of this connector is made of metal, providing excellent mechanical protection and durability for industrial applications.
This connector has a shell size of 2, balancing compact design with ease of handling during installation.
It is manufactured in France, ensuring high engineering standards and consistent quality.
It is well-suited for industrial, manufacturing, automation, and electrical power distribution applications, providing robust connections under demanding conditions.
This model is part of the Jaeger 6307 series, known for its industrial reliability and versatility in various applications.
This connector is classified as a miniature connector, optimized for compact installations requiring high performance.
