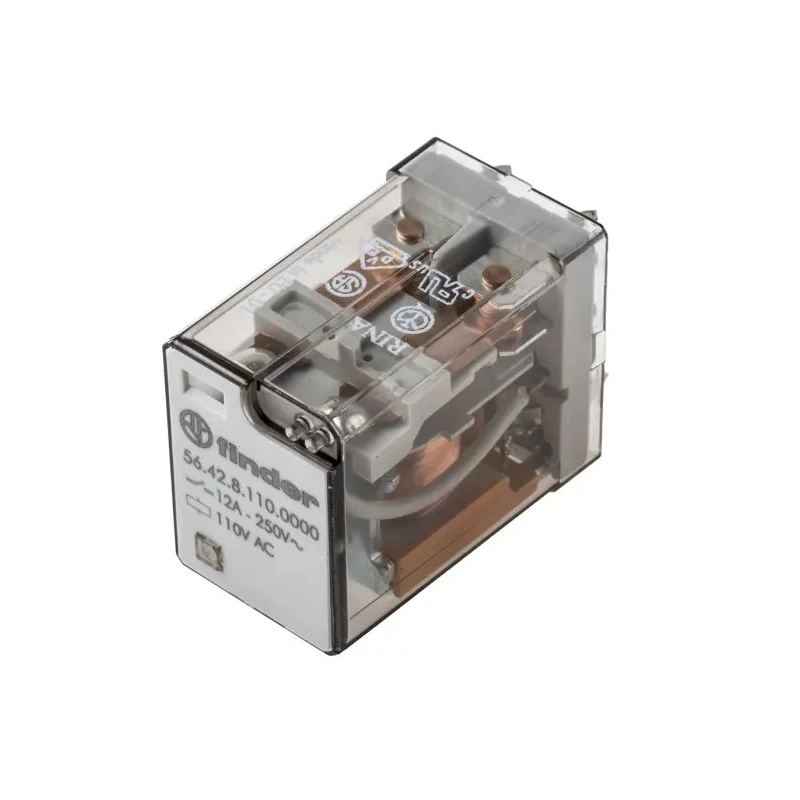

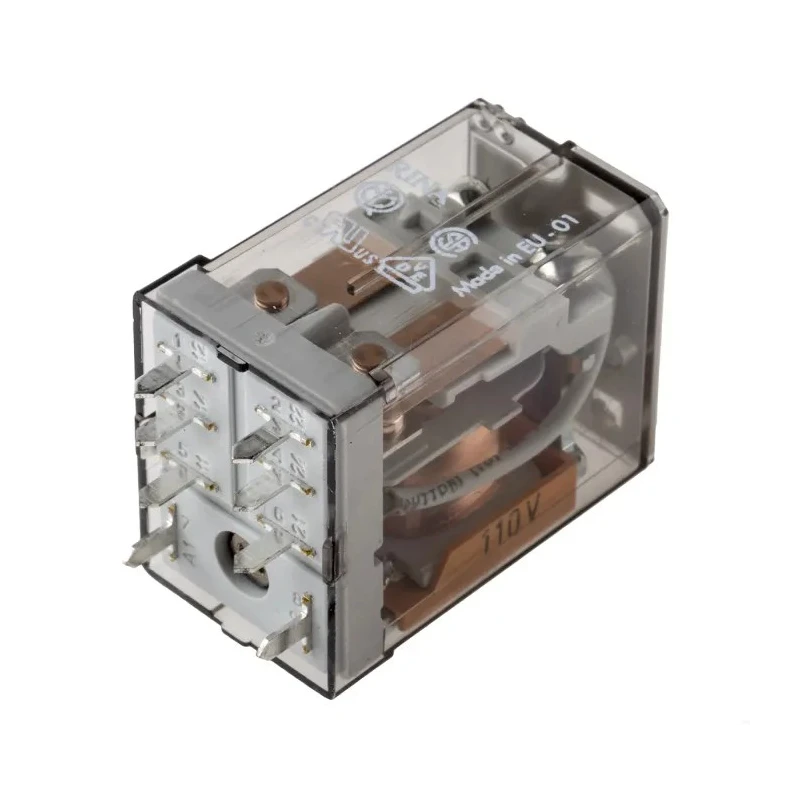

Finder PCB Power Relay, 110V AC Coil, 12A Switching Current, DPDT, Silver Alloy Contacts 56.42.8.110.0000

Finder 56.42.8.110.0000 PCB Power Relay is a high-quality electrical component designed for industrial automation, control systems, and PCB-based applications. It operates with a 110V AC coil and can switch currents up to 12A using a durable double-pole double-throw (DPDT) contact configuration. This relay is suitable for robust applications requiring reliable switching performance.

The coil resistance is 3.9 kilo-ohms, drawing a coil power of 1.5 watts, optimized for efficient power consumption. It supports switching AC voltages up to 400 volts and switching power of 3kVA, making it ideal for various industrial loads.

Operating temperature ranges from -40 to +70 degrees Celsius enables stable performance in harsh environments. The silver alloy contact material ensures excellent conductivity and durability, with contact resistance kept under 50 milli-ohms to minimize energy loss.

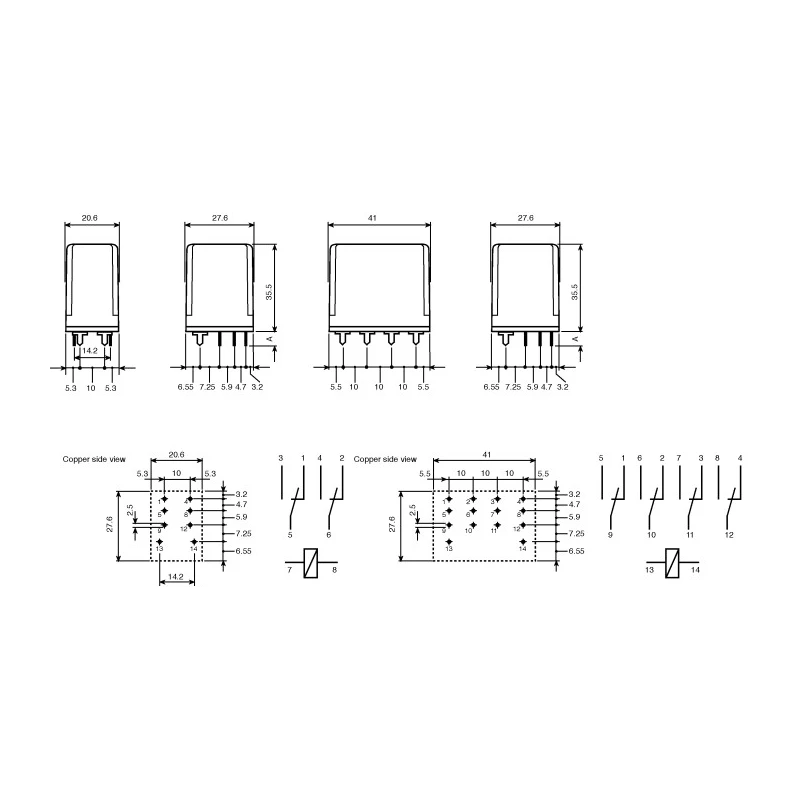

Its compact form factor measures approximately 41.1 mm in height, 20.7 mm in width, and 27.7 mm in depth, facilitating easy integration into printed circuit boards with solder terminals designed for PCB mounting.

The relay offers high isolation between coil and contacts rated at 2500 volts, providing safety and electrical noise reduction in sensitive industrial equipment. This model is certified under multiple standards including VDE, UL, EAC, CSA, and CCC, ensuring compliance with international quality and safety codes.

Typical applications include industrial automation systems, HVAC controls, manufacturing equipment, and electrical control panels. The compact design and reliable switching capabilities make it a preferred choice for engineers and technicians requiring durable and efficient Power Relays.

Discover the extensive range of electronic relays and components in the Electronics & Electricals category at EnvMart, designed to meet diverse industrial and commercial needs. This relay supports PCB mounting and uses silver alloy contacts for high conductivity.

The coil resistance measures 3.9kΩ with a coil power of 1.5W for efficient operation. Designed to operate reliably between -40 to 70°C temperature range. Switching capacity up to 400V AC and switching power up to 3kVA. The relay is compact with dimensions approximately 41.1mm height, 20.7mm width, and 27.7mm depth.

Contact resistance is low, at ≤50mΩ, ensuring minimal signal loss. Isolation between coil and contacts is robust at 2500V, complying with international standards. Approved by VDE, UL, EAC, CSA, and CCC for global compliance.
