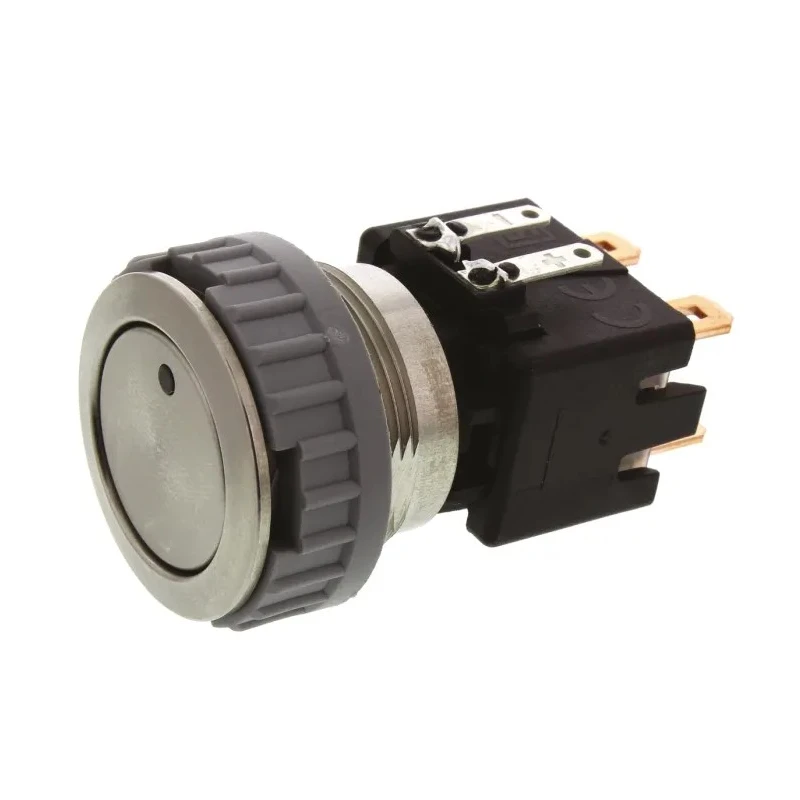

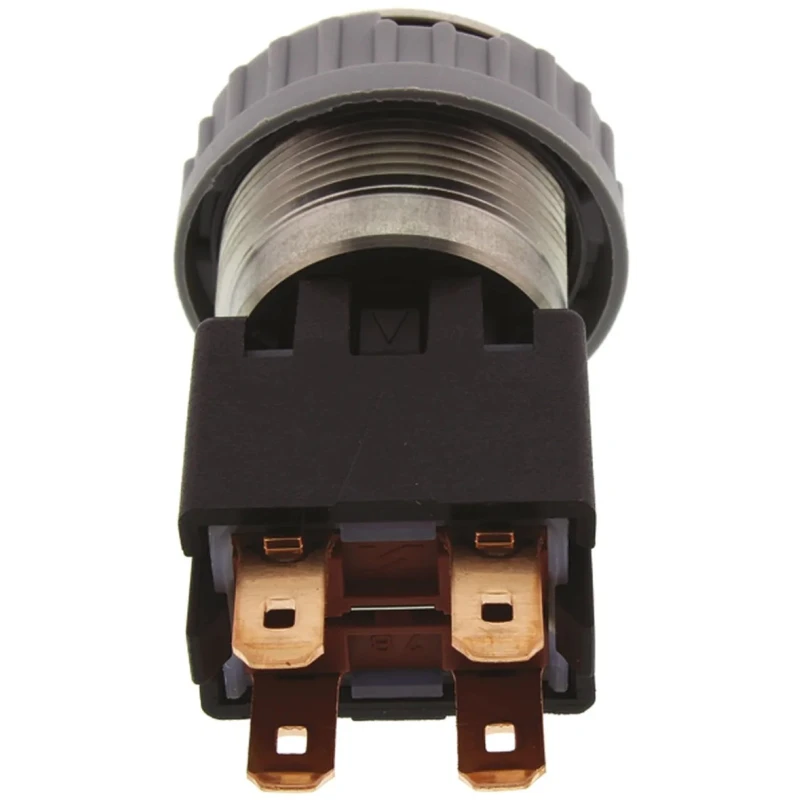

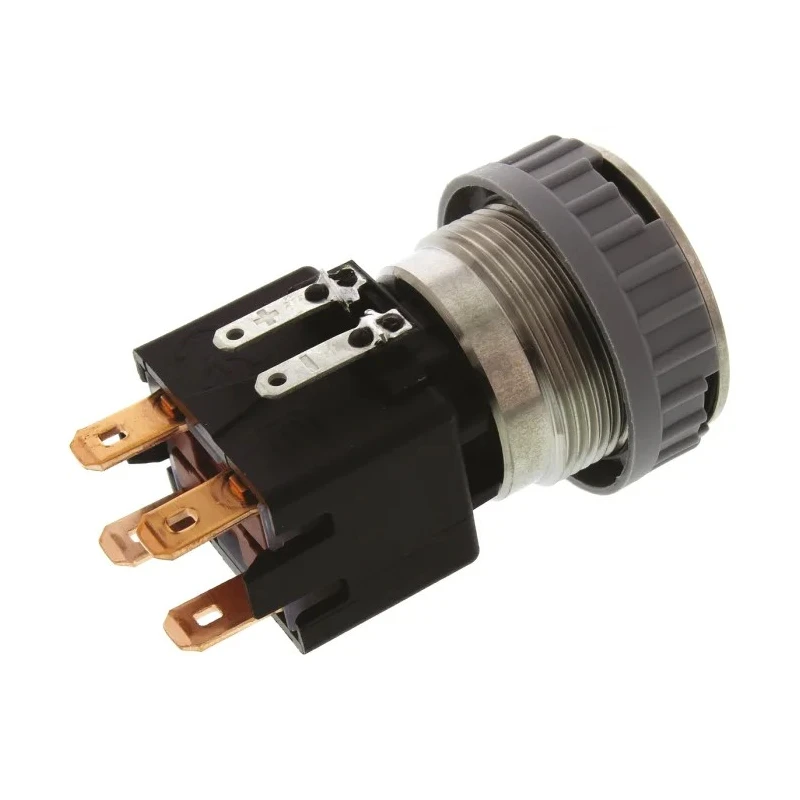

Schurter MSM LA 19 Series Illuminated Push Button Switch, Latching, Panel Mount, 22 mm Cutout, DPDT, Red 1241.6833.1121000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| IP Rating | IP00, IP64 |
| Mount Type | Panel |
| Series | MSM LA 19 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | 2P |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Tab |
| Standards/Approvals | UL, RoHS, IEC, CSA |
| LED Colour | Red |
| Switch Operation | Latching |
| Actuator Colour | Natural |
| Contact DC Voltage | 30V dc |
| Actuator Style | Button |
| Switch Contact Current | 12A |
Key Features
- Equipped with a red LED for visual status indication.
- Robust stainless steel housing with IP00 and IP64 ratings for environmental protection.
- Designed for harsh environments with IK07 shock resistance.
- Operating temperature range from -25°C to 85°C ensures versatile use.
- Supports a contact DC voltage of 30 V and switch contact current of 12A.
- Actuator requires 10 N operating force with 4.5 mm travel and protrudes 3.7 mm above the panel.
- Long mechanical life of up to 150,000 operations guarantees durability.
Product Description
Schurter 1241.6833.1121000 Illuminated Push Button Switch from the MSM LA 19 Series provides a reliable latching switch solution for panel mounting with a 22 mm cutout size. This switch features a DPDT contact configuration with a natural-colored button actuator and red LED illumination for clear operational status.
Designed for industrial and automation applications, this push button switch has a robust stainless steel housing rated IP00 and IP64, providing resistance to dust and water ingress. The actuator is engineered with a 10 N operating force and a travel distance of 4.5 mm, protruding 3.7 mm above the panel when in the off state, ensuring tactile feedback during use.
Its resistance to mechanical shock, certified as IK07 (DIN EN 50102), makes it suitable for use in harsh environments. The switch supports a contact DC voltage rating of 30 V, a switch contact current of 12A, and operates across a temperature range of -25°C to 85°C.
The MSM LA 19 Series is a versatile product line offering illuminated (red, green, blue LEDs) and non-illuminated variants, designed for panel cutouts of 19 mm or 22 mm diameter. The switching status is optically visible through a 180° illuminated viewing angle, enhancing operational clarity.
Red LED illumination provides clear visual feedback. IP64 sealing protects against water splashes and dust ingress. Durable stainless steel housing for extended lifetime. Long mechanical durability rated for up to 150,000 operations.
Quick connect tab terminals for easy installation. Suitable for industrial, automation, electrical panel, and control system applications. Point illuminated types require a suitable series resistor; ring illuminated types include resistors for 24 Vdc operation.
Explore the Electronics & Electricals category at EnvMart for a wide selection of Push Button Switches and related components from leading brands like Schurter.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching applications.
The maximum operating temperature for this illuminated push button switch is 85°C, making it suitable for a range of environments.
This switch has an IP rating of IP00 and IP64, providing protection against dust and water ingress in various applications.
The actuator requires an operating force of 10 N, ensuring tactile feedback during use.
The switch is designed for a panel cutout size of 22 mm, which is standard for many panel mounting applications.
The contact DC voltage rating for this illuminated push button switch is 30 V, suitable for various electrical applications.
This model supports a switch contact current of 12A, allowing it to handle significant electrical loads.
The actuator has a travel distance of 4.5 mm, which contributes to its operational functionality.
The switch is rated for a long mechanical life of up to 150,000 operations, ensuring reliability in frequent use.
This model complies with UL, RoHS, IEC, and CSA standards, ensuring it meets various safety and environmental regulations.
The minimum operating temperature for this illuminated push button switch is -25°C, allowing for use in colder environments.
The switch utilizes tab terminals for easy installation, facilitating quick connections in panel setups.
