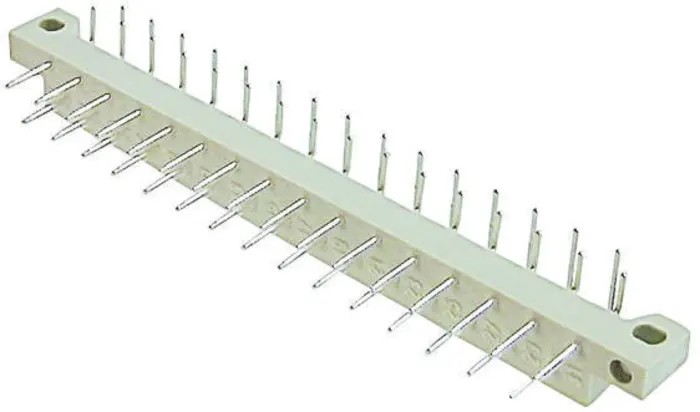

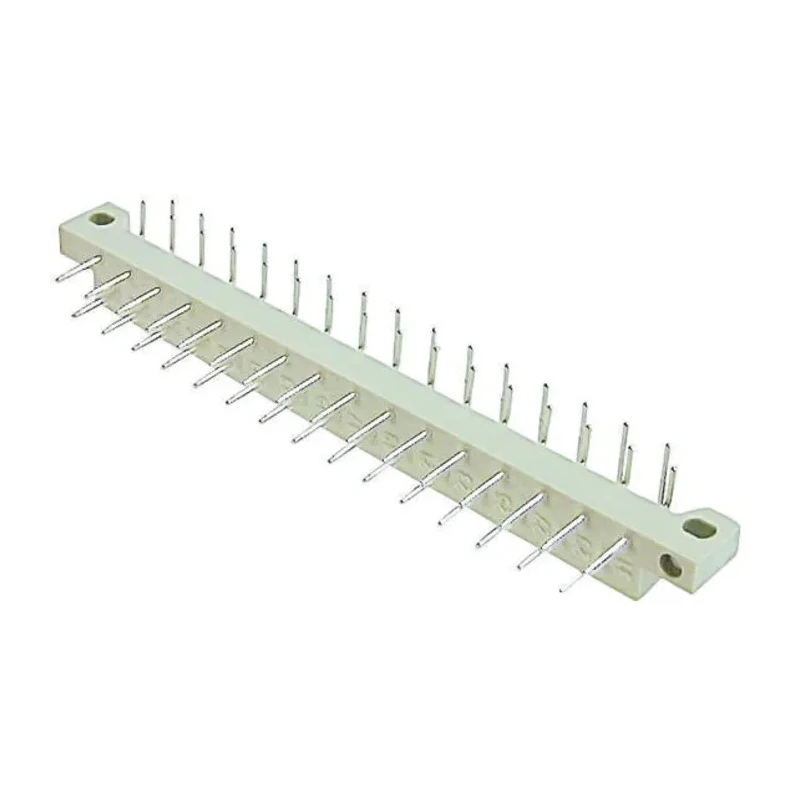

ASSMANN WSW DIN 41617 5 mm Pitch 13 Way 2 Row Right Angle DIN 41617 Connector Male A 13-S1/SILVER
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V ac |
| Brand | ASSMANN WSW |
| Orientation | Right Angle |
| Current | 2A |
| Model | A 13-S1/SILVER |
| Housing Material | Polycarbonate |
| Contact Material | Brass |
| Series | DIN 41617 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 5mm |
| Contact Plating | Silver |
| Number of Contacts | 13 |
| Contact Gender | Male |
| Maximum Contact Resistance | 15mΩ |
Key Features
- Features a durable polycarbonate housing for reliable insulation.
- Consists of 13 contacts arranged in 2 rows for moderate connectivity needs.
- Contacts are made of brass and plated with silver ensuring low resistance and improved conductivity.
- Rated for 2A current and 250V AC usage in electrical applications.
- Operates reliably between -55°C and 125°C temperature range.
- Termination by soldering ensures secure and stable connections.
- Designed as a male connector with right angle orientation for compact PCB mounting.
- Maximum contact resistance is low at 15 milliohms for minimal signal loss.
Product Description
ASSMANN WSW A 13-S1/SILVER DIN 41617 Connector Male is a right angle electronic connector featuring a 5 mm pitch between pins, arranged in 13 contacts across 2 rows. This connector type is specifically designed to provide reliable connections in backplane and rack connector applications, ensuring durability and consistent electrical performance.
The connector housing is made of polycarbonate, offering excellent insulation properties and mechanical strength while contacts are crafted from brass and plated with silver to reduce contact resistance and maintain signal integrity. The connector supports a current rating of 2 amperes and an operational voltage of up to 250 volts AC, suitable for various electronics and industrial equipment.
Its right angle orientation is ideal for space-saving PCB layouts, allowing for neat and efficient assembly. The termination type is solder, ensuring secure and conductive joints within electronic assemblies. Operating temperature ranges from -55 degrees Celsius to 125 degrees Celsius, making it well-suited for use in harsh and varying environments often found in industrial, manufacturing, and automation sectors.
The connector is part of the DIN 41617 series, widely recognized and used across electronic and electrical industries for backplane and rack interconnections. This product is manufactured in Germany, reflecting high-quality standards and precision engineering.
Durable polycarbonate housing for insulation and strength. 13 brass contacts plated with silver for optimal conductivity. 2 row, 5 mm pitch design suited for backplane connections. Right angle male connector for space-efficient PCB mounting.
Rated for 2A current and 250V AC voltage operation. Solder termination for reliable electrical connections. Temperature range from -55°C to 125°C for industrial use. Low contact resistance of 15 milliohms ensures minimal signal loss.
Conforms to DIN 41617 series standards.
This connector is ideal for electronic manufacturing, industrial automation, instrumentation, and backplane assemblies requiring secure, durable, and high-quality electrical connections. Explore additional DIN 41617 Connectors at EnvMart for complementary products within this category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 2A, making it suitable for various electrical applications.
The maximum operating voltage for this connector is 250V AC, which is appropriate for many electronic systems.
It operates reliably within a temperature range of -55°C to 125°C, suitable for harsh environments.
The connector features 13 contacts arranged in 2 rows, designed for moderate connectivity needs.
The contacts are made of brass and plated with silver to ensure low resistance and improved conductivity.
It utilizes solder termination, which ensures secure and stable electrical connections.
This model has a right angle orientation, making it ideal for space-saving PCB layouts.
The maximum contact resistance is low at 15 milliohms, minimizing signal loss during operation.
This connector is manufactured in Germany, reflecting high-quality standards in its production.
It conforms to the DIN 41617 series standards, widely recognized in the electronic and electrical industries.
The housing is made of durable polycarbonate, providing reliable insulation and mechanical strength.
It is suitable for electronic manufacturing, industrial automation, instrumentation, and backplane assemblies.
