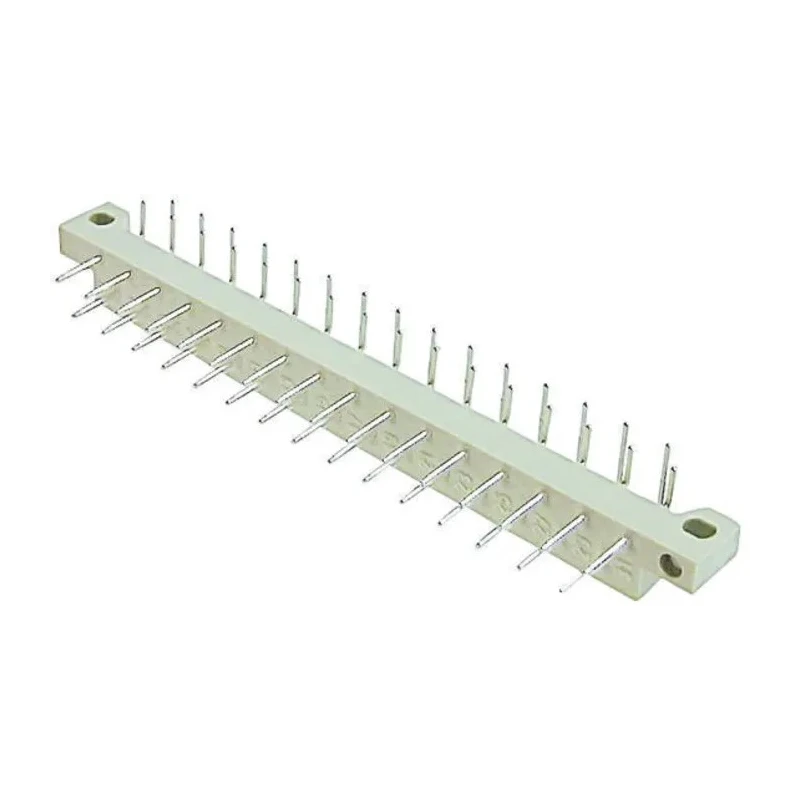

ASSMANN WSW DIN 41617 5 mm Pitch 21 Way 2 Row Right Angle Male Connector A 21-S1/SILVER
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | ASSMANN WSW |
| Orientation | Right Angle |
| Current | 2A |
| Model | A 21-S1/SILVER |
| Housing Material | Polycarbonate |
| Contact Material | Brass |
| Series | DIN 41617 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 5mm |
| Contact Plating | Silver |
| Number of Contacts | 21 |
| Contact Gender | Male |
| Maximum Contact Resistance | 15mΩ |
Key Features
- Designed for reliable solder termination with brass contact material.
- Housing made from durable polycarbonate for enhanced insulation.
- Silver plating on contacts ensures low resistance and improved conductivity.
- Operates safely up to 250V AC and 2A current capacity.
- Rated for operating temperatures from -55°C to 125°C.
- Maximum contact resistance limited to 15mΩ, supporting high efficiency.
- Complies with DIN 41617 series standards to fit backplane and rack applications.
- Suitable for industrial electronics and power connector applications.
Product Description
ASSMANN WSW A 21-S1/SILVER DIN 41617 Connector is a 21-way, 2-row right angle male connector designed for electronic component and power connector applications. It features a 5 mm pitch between contacts, with the robust brass contacts plated with silver to reduce contact resistance and maintain durability under harsh conditions.
The connector’s polycarbonate housing provides reliable mechanical insulation and resistance to environmental factors. It supports a current rating of 2A and a voltage rating of 250V AC, suitable for medium power applications in industrial and electronic assembly contexts.
This component accommodates solder-type terminations, ensuring secure electrical connections in printed circuit board and backplane interconnects. The operating temperature range spans from -55°C to 125°C, supporting use in diverse environments including automotive, aerospace, and industrial manufacturing.
The DIN 41617 series complied specification assures compatibility and interchangeability with other DIN 41617 Connectors widely used in rack and backplane assemblies, allowing streamlined design and manufacturing processes.
Designed for reliable solder termination with brass contact material. Housing made from durable polycarbonate for enhanced insulation. Silver plating on contacts ensures low resistance and improved conductivity. Operates safely up to 250V AC and 2A current capacity.
Rated for operating temperatures from -55°C to 125°C. Maximum contact resistance limited to 15mΩ, supporting high efficiency. Complies with DIN 41617 series standards to fit backplane and rack applications. Suitable for industrial electronics and power connector applications.
This connector is ideal for industrial, electronic manufacturing, telecommunications, automation, power distribution, and laboratory equipment applications. Its precise engineering and material selection ensure long service life and dependable electrical performance.
Explore more industrial-grade DIN connectors and electronic components at EnvMart to find the perfect fit for your application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates safely up to 250V AC, making it suitable for medium power applications.
This model has a current capacity of 2A, which is appropriate for various electronic applications.
The housing is made from polycarbonate, while the contacts are constructed from brass and plated with silver for improved conductivity.
It is rated for operating temperatures from -55°C to 125°C, accommodating a variety of environments.
This model features 21 contacts arranged in a 2-row configuration.
The contacts are spaced at a pitch of 5 mm, which is standard for many DIN connectors.
It utilizes solder-type terminations, ensuring secure electrical connections.
Yes, it complies with DIN 41617 series standards, ensuring compatibility with other connectors in this series.
The maximum contact resistance is limited to 15mΩ, which supports high efficiency in electrical performance.
It is suitable for industrial electronics, telecommunications, automation, and power distribution applications.
This model features a right angle orientation, which is beneficial for space-constrained applications.
The connector is manufactured in India, ensuring compliance with applicable standards.
