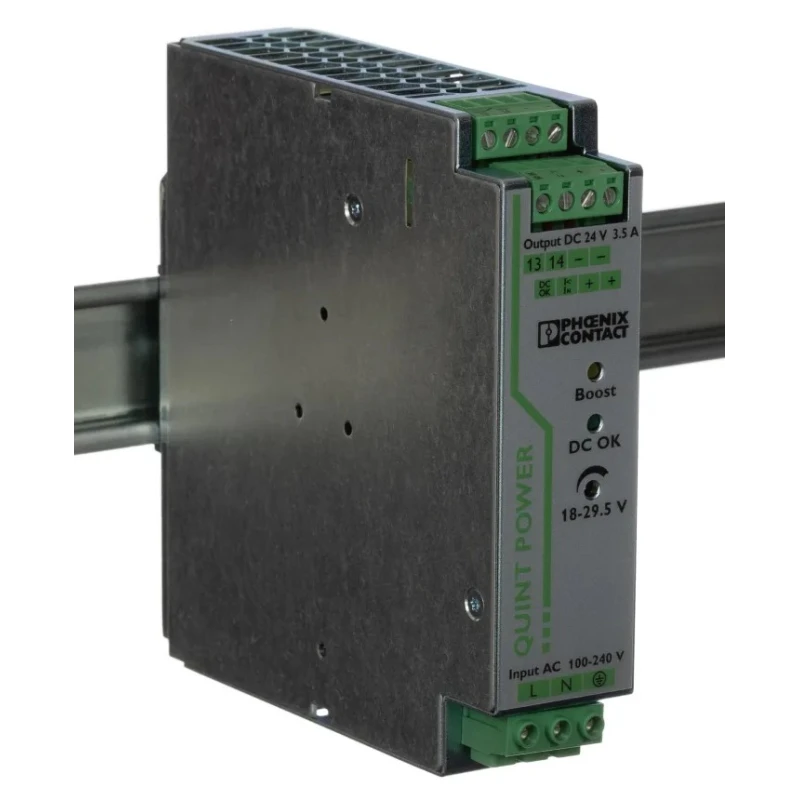

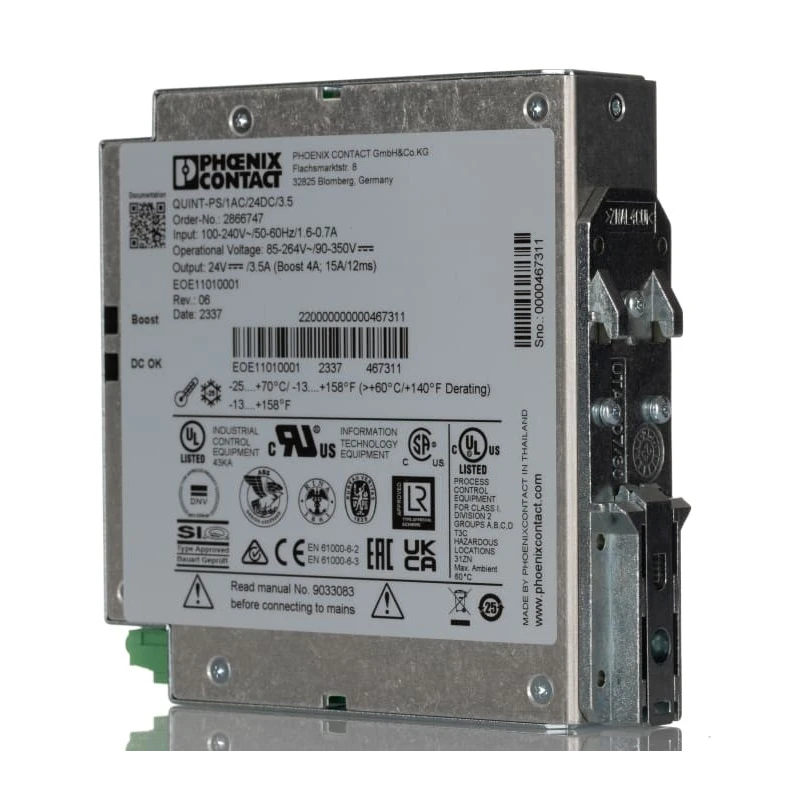

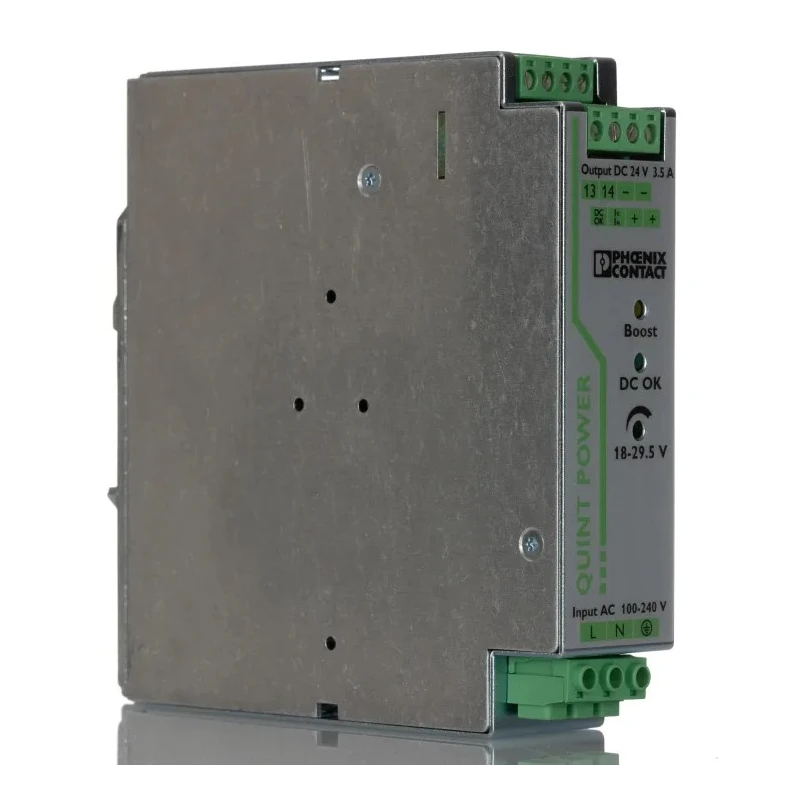

Phoenix Contact QUINT POWER Switched Mode DIN Rail Power Supply 264V AC Input 29.5V DC, 3.5A Output, 84W 2866747
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Phoenix Contact |
| Power | 84W |
| Efficiency | 88% |
| Height | 130mm |
| Model | 2866747 |
| Depth | 130mm |
| IP Rating | IP20 |
| Width | 32mm |
| Series | QUINT POWER |
| Output Current | 3.5A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 29.5V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Supports universal input voltage range of 85 to 264V AC and 90 to 250V DC.
- Stable output voltage of 24V DC with ±1% regulation ensures precise power delivery.
- Includes 1.5-times POWER BOOST static power reserve for handling startup loads.
- Equipped with LED indicators for clear visual status updates.
- Features pluggable screw terminals for robust and easy electrical connections.
- Conforms to EMC Directive 2014/30/EU with EMI-resistant design.
- Designed for shock and vibration resistance compliant with IEC 60068.
- Compact DIN rail mount design measuring 130mm height, 32mm width, and 130mm depth.
Product Description
Phoenix Contact 2866747 QUINT POWER switched mode DIN rail power supply provides a reliable and efficient power source for industrial control systems, automation, and machinery. It accommodates a wide input voltage range of 85 to 264V AC and 90 to 250V DC, making it suitable for global deployments and fluctuating power conditions.
The power supply delivers a stable 24V DC output at 3.5A, producing 84W of power with a precise ±1% voltage regulation. Its robust design includes a 1.5-times static power reserve (POWER BOOST) that effectively manages high surge start-up currents typical of loads like pumps and motors, reducing downtime and increasing system reliability.
Equipped with LED status indicators and pluggable screw terminals, it ensures both operational clarity and ease of installation. The power supply meets stringent EMC and IEC standards, including EN 61000-6-3 and shock and vibration resistance per IEC 60068, allowing safe usage in demanding industrial environments, even near moving mechanical components.
Compact and designed for DIN rail mounting, it measures 130mm in height, 32mm in width, and 130mm in depth, making installation efficient in confined control panels. The operating temperature range from -25°C to 70°C supports use in diverse environments. Its IP20 rating provides protection against solid objects and safe operation indoors.
Supports universal input voltage range of 85 to 264V AC and 90 to 250V DC. Offers reliable 24V DC output at 3.5A with ±1% voltage regulation. Includes POWER BOOST function for handling startup loads. LED indicators provide operational status feedback.
Pluggable screw terminals ensure easy and secure connections. Conforms to EMC Directive 2014/30/EU and IEC standards for industrial resilience. Shock and vibration resistant design per IEC 60068 for harsh conditions. Compact DIN rail housing fits standard industrial cabinets.
Operating temperature range from -25°C to 70°C. IP20 rated enclosure suitable for indoor industrial use.
This power supply is ideally suited for industrial automation, manufacturing, process control, and other commercial electrical systems that demand consistent and secure DC power distribution. Its advanced features increase system reliability while simplifying installation and maintenance.
Browse similar DIN Rail Power Supplies and Phoenix Contact products at EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The efficiency of this unit is rated at 88%.
It has a compact design with dimensions of 130mm in height, 32mm in width, and 130mm in depth.
The POWER BOOST function provides a static power reserve of 1.5 times, allowing it to handle high surge start-up currents effectively.
It is equipped with pluggable screw terminals for robust and easy electrical connections.
It conforms to the EMC Directive 2014/30/EU and is designed to meet IEC standards for shock and vibration resistance.
It is ideally suited for industrial automation, manufacturing, process control, and other commercial electrical systems that require consistent DC power distribution.
The maximum input voltage it can handle is 264V AC.
The minimum input voltage is 85V AC.
