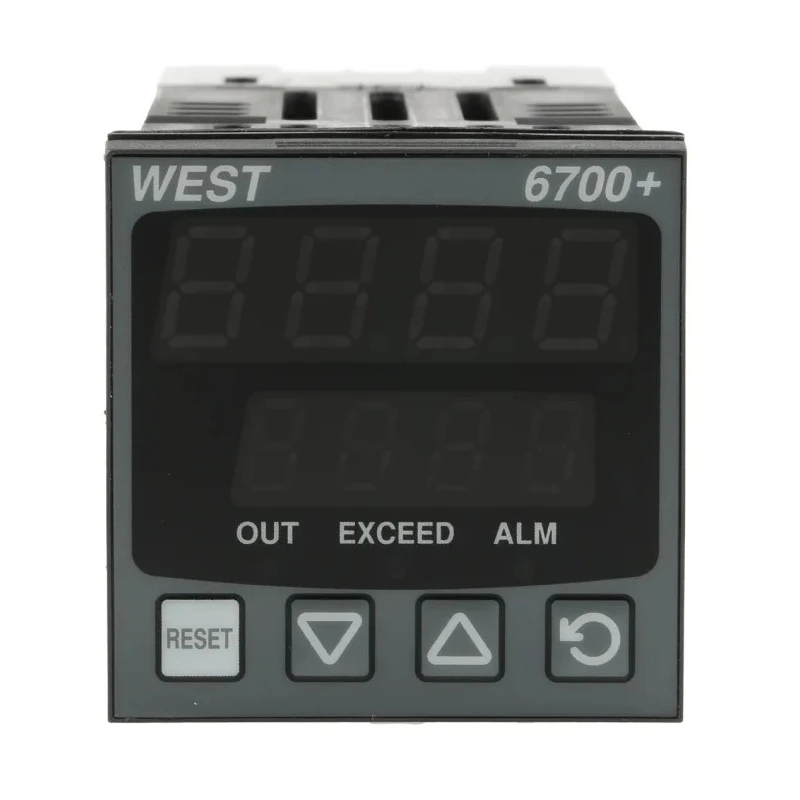

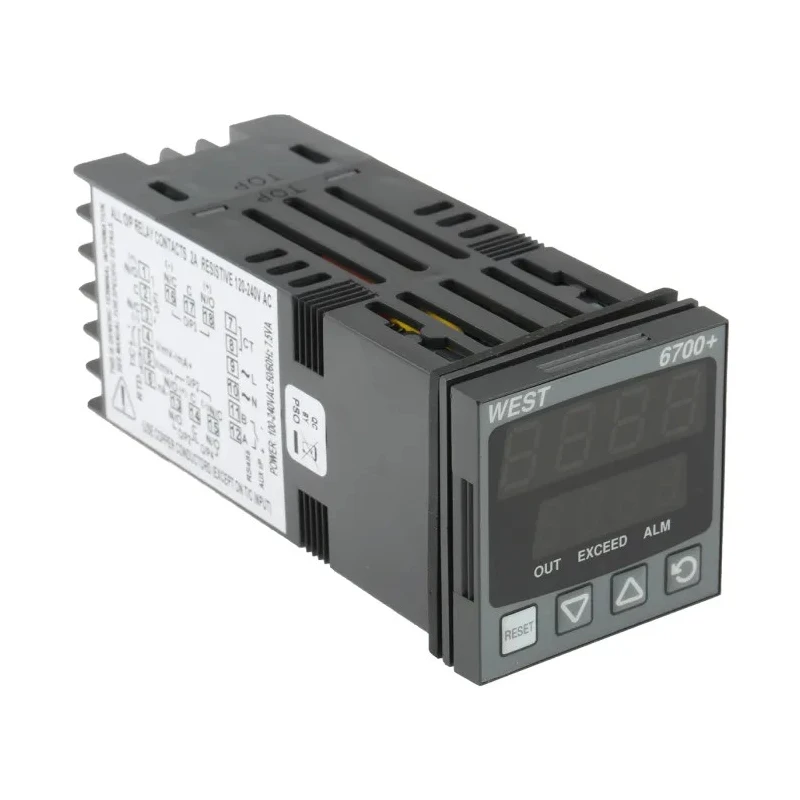

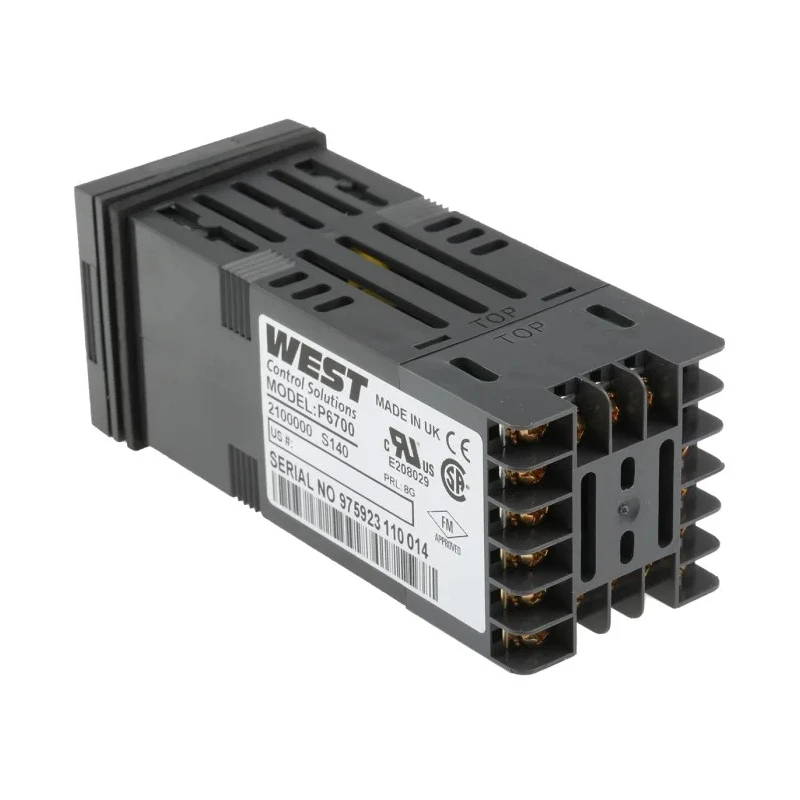

RS PRO PID Temperature Controller 1 Input 3 Output Relay 240V ac P6700-2100-000

West Instruments P6700-2100-000 PID Temperature Controller is designed for advanced temperature process control applications in industrial, laboratory, and manufacturing environments. It features a single thermocouple input and three relay output channels that provide reliable control signals. The device operates on a supply voltage of 240V AC and auxiliary power of 24W, making it suitable for a broad range of applications requiring precise thermal management.

The compact 48mm width and 110mm length (1/16 DIN size) along with an IP66 protection rating ensure that the controller can endure harsh industrial conditions including dust and water ingress. It has robust construction from the United Kingdom and complies with international standards including FM, CE, UL, and ULC certifications.

The latching limit relay provides a fail-safe cut-off, requiring manual reset if temperature limits are exceeded, enhancing safety in critical processes. An LED display provides clear indication of process status and limit breaches, optimizing operator awareness. Communication via RS485 Modbus allows integration into automated control systems.

Additional features include auto-hardware detect setup, jumper-less configuration, and a customizable operator interface, simplifying installation and operation. Optional 10V SSR driver output and digital input for remote reset provide extended functionality to meet complex control requirements.

Ideal for industrial automation, HVAC systems, process control, and manufacturing plants, the P6700 series controller ensures accurate temperature monitoring and control to maintain process quality and safety.

Features a thermocouple input type for precise temperature measurement. Equipped with 5A latching limit relay outputs for fail-safe operation. Compact 48mm width and 110mm length with IP66 rating for robust protection. Supports RS485 digital communication and LED display for easy monitoring.

Operates within 0 to 55°C temperature range suitable for various industrial environments. Configuration is user-friendly via PC or customizable operator menu. Backward compatible with existing panel cut-outs and terminal wiring.

Includes optional features like a 10V SSR driver output and remote reset input. Explore West Instruments Temperature Controllers and related process control equipment for reliable industrial automation solutions on EnvMart.
