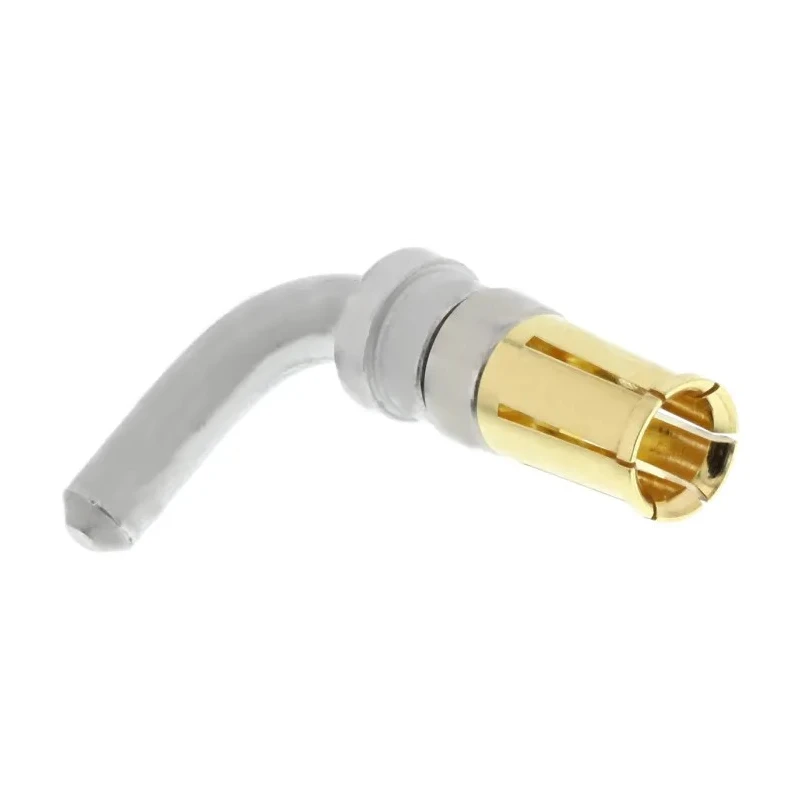

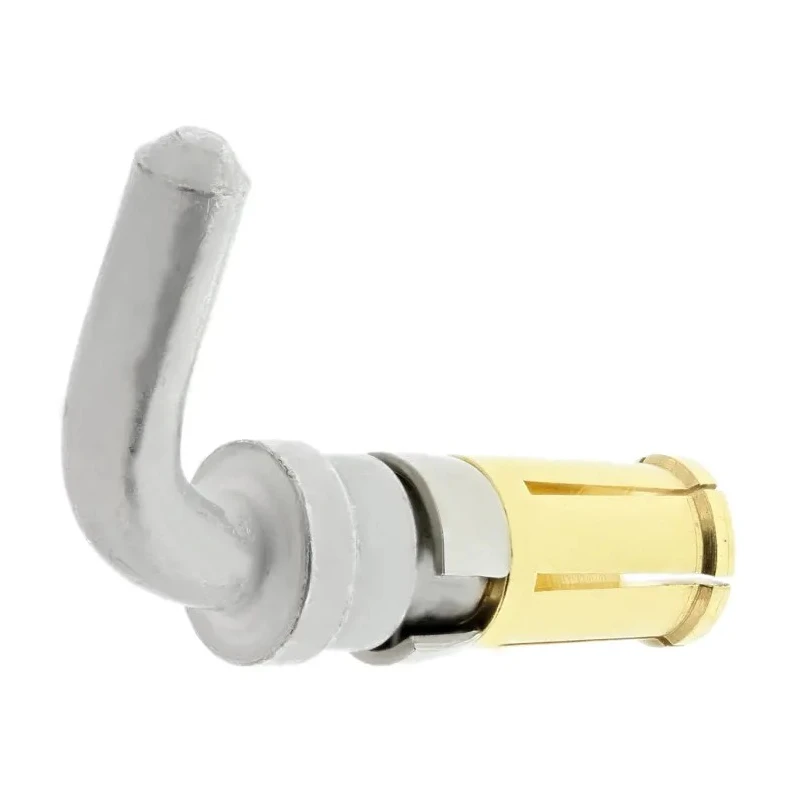

RS PRO Female Solder D-Sub Connector Power Contact, Gold over Nickel Plating, 20A Current, 8 AWG 301-6834
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | RS PRO |
| Current | 20A |
| Length | 18.1mm |
| Model | 301-6834 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Termination Type | Solder |
| Contact Type | Power |
| Standards/Approvals | DIN IEC 68 part 1 |
| Contact Plating | Gold over Nickel |
| Minimum Wire Size mm² | 0.64mm² |
| Maximum Wire Size mm² | 18.10mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 8AWG |
| Maximum Contact Resistance | 1mΩ |
| PCB holes for coax plug and socket | 4 holes 1.3mm dia. on 5.08mm ctrs, plus centre hole 1.3mm dia |
| RS PRO Female Solder D-Sub Connector Coaxial Contact, Gold over NickelBrand | RS PRO |
Key Features
- Constructed with copper alloy for excellent conductivity.
- Gold over nickel plating ensures corrosion resistance and optimal electrical contact.
- Rated for a maximum current of 20 amperes.
- Solder termination type for strong and secure wire connection.
- Supports wire sizes from 20 AWG to 8 AWG.
- Designed to meet DIN IEC 68 part 1 standards for durability and safety.
- Compact length of 18.1 mm suitable for mixed layout connector shells.
- Conforms to PCB mounting hole specifications to fit various configurations.
Product Description
RS PRO 301-6834 Female Solder D-Sub Connector Power Contact is engineered for reliable power transmission applications, offering robust performance with gold over nickel plating on a durable copper alloy base. This power contact is rated for 20A current and supports wire sizes between 20 AWG and 8 AWG, making it suitable for heavy-duty industrial, military, or commercial connector assemblies.
The contact measures 18.1 mm in length and utilizes solder-type termination for a secure wire connection. It complies with DIN IEC 68 part 1 standards, ensuring mechanical and environmental durability for harsh conditions.
This contact is specifically designed for mixed layout D-sub connectors that accommodate combined signal and power contacts. Its compact form factor fits within a 17W2 shell configuration which allows up to 17 total mixed contacts, with 15 signal contacts and 2 cavities designated for power or coaxial types.
The gold over nickel plating enhances corrosion resistance, optimizing long-term electrical conductivity and minimizing contact resistance to a maximum of 1 milliohm. PCB hole configurations accommodate coaxial plugs and sockets with precise hole diameters and spacing to ensure compatible mounting.
This connector is highly versatile for assembling combined signal and power connections in various electronics and power distribution contexts including industrial equipment, computer interfacing, and commercial applications.
Constructed from high-conductivity copper alloy with corrosion resistant gold over nickel plating. Rated for a maximum operating current of 20 amperes suitable for demanding power applications. Solder termination type provides a robust wire attachment method for reliability.
Meets DIN IEC 68 part 1 standards covering environmental and mechanical resilience. Designed for use in mixed layout D-Sub Connector shells combining power and signal contacts. Compact dimensions enable flexible installation in constrained connector assemblies.
Compatible with multiple wire gauge sizes supporting 20 AWG up to 8 AWG wiring. Low contact resistance to support efficient power delivery and signal integrity. Manufactured origin: Germany assuring quality and compliance with industrial standards.
Explore more connectors and components in the Electronics & Electricals category at EnvMart for your electronics manufacturing and industrial integration projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power contact is rated for a maximum current of 20 amperes.
It supports wire sizes from 20 AWG to 8 AWG, accommodating various applications.
The connector measures 18.1 mm in length, making it compact for installation.
It utilizes a solder termination type for a secure and reliable wire connection.
The contact is constructed from a copper alloy, which provides excellent conductivity.
It has gold over nickel plating, which enhances corrosion resistance and optimizes electrical contact.
It is designed to meet DIN IEC 68 part 1 standards for durability and safety.
The maximum contact resistance is 1 milliohm, ensuring efficient power delivery.
It accommodates 4 holes with a diameter of 1.3 mm on 5.08 mm centers, plus a center hole of 1.3 mm diameter.
It is suitable for heavy-duty industrial, military, or commercial connector assemblies.
The connector is manufactured in Germany, assuring quality and compliance with industrial standards.
It is specifically designed for mixed layout D-sub connectors that accommodate combined signal and power contacts.
