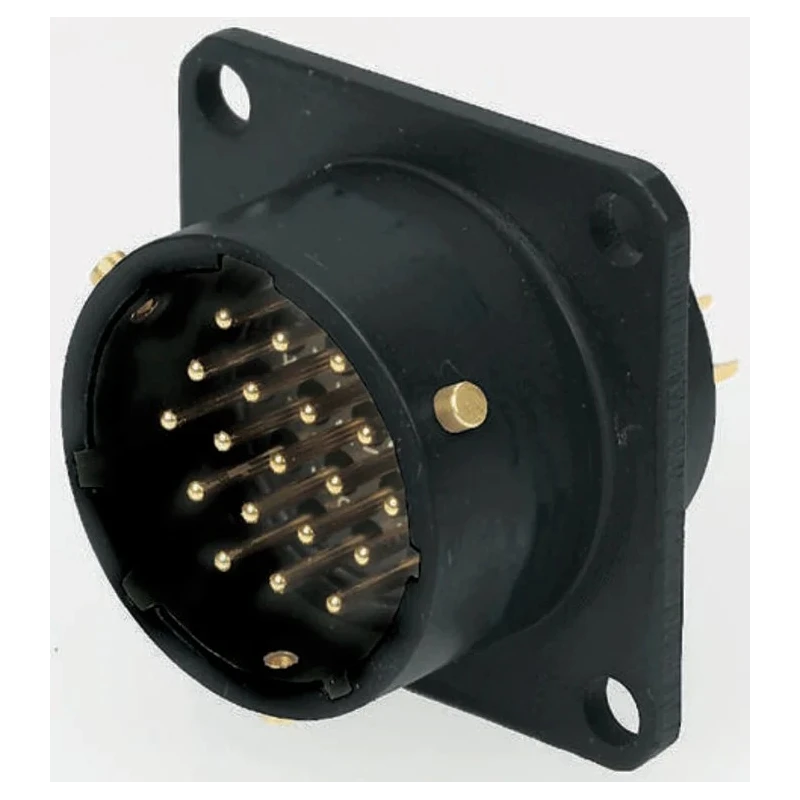

Amphenol Limited MIL Spec Circular Connector Copper Straight 12 Way Panel Mount 700V 13A 62LC-12E14-12PN(771)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 700V |
| Brand | Amphenol Limited |
| Orientation | Straight |
| Current | 13A |
| Model | 62LC-12E14-12PN(771) |
| Mount Type | Panel Mount |
| Housing Material | Aluminium |
| Contact Material | Copper |
| Series | 62LC |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | 14 |
| Mating Type | Bayonet |
| Connector Size | 22.2 mm |
Key Features
- This mil-spec connector features 12 male contacts for robust electrical connection.
- Constructed with aluminum housing and gold plated copper contacts for durability.
- Designed for operating temperature range from -55°C up to 125°C.
- Panel mount type with straight orientation ensures secure fitting and easy assembly.
- The bayonet mating type provides quick, reliable coupling and decoupling.
- Connector size is 22.2 mm in shell size 14, suitable for high-performance industrial applications.
- Termination is by solder method ensuring lasting electrical continuity.
- Ideal for industrial, electrical, and electronic equipment requiring rugged connector performance.
Product Description
Amphenol Limited 62LC-12E14-12PN(771) is a premium MIL Spec Circular Connector designed for panel mount applications requiring high reliability and durability. It features a copper straight configuration with 12 male contacts and a female connector gender, offering a 700V voltage rating and current capacity of 13A. The shell size is 14 and the connector has a 22.2 mm diameter.
This connector uses gold plating on copper contacts and an aluminum alloy housing for excellent corrosion resistance and conductive performance. Its solder termination type enhances secure and stable electrical connections. The bayonet mating system allows quick and secure connection, suitable for environments where fast maintenance and assembly are essential.
The operating temperature range spans from -55°C to 125°C, enabling use in a wide variety of industrial, aerospace, manufacturing, and electronic equipment. While it does not conform to specific military standards, it aligns with MIL-C-26482 commercial grade requirements ensuring dependable operation in demanding settings.
This 62LC Series connector supports panel mount installation, beneficial for chassis socket or plug mounting with excellent mechanical retention. The straight orientation facilitates versatility in cable routing with minimal stress on connections.
Applications include electronic instrumentation, power distribution assemblies, communication devices, and control panels where durable and reliable connector solutions are vital to system integrity.
This MIL Spec Circular Connector offers a rugged 12 contact copper design for industrial use. Bayonet locking mechanism provides fast, secure mating and demating. Gold plated contacts and aluminum housing ensure long-term durability.
Rated for 13A current at up to 700V, suitable for demanding electrical tasks. Wide temperature range from -55°C to 125°C for versatile application environments. Solder termination for lasting and stable electrical connections.
Panel mount design enables robust integration into equipment chassis. Shell size 14 and connector size 22.2 mm for compatibility with various setups.
This connector is part of the trusted Amphenol 62LC Series, designed for demanding industrial and electronic applications. For browsing more Mil Spec Circular Connectors and related high-performance components, explore EnvMart's dedicated category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a voltage of 700V.
It has a current capacity of 13A.
The operating temperature range spans from -55°C to 125°C.
This model uses a solder termination type for secure electrical connections.
It features 12 male contacts.
The housing is made of aluminum, and the contacts are made of copper with gold plating.
The shell size is 14, with a connector diameter of 22.2 mm.
It employs a bayonet mating type for quick and reliable coupling.
Yes, it is designed for panel mount installation, ensuring secure fitting.
It is suitable for industrial, aerospace, manufacturing, and electronic equipment requiring rugged connector performance.
The connector has a female gender, while the contacts are male.
Gold plating enhances corrosion resistance and conductive performance of the contacts.
