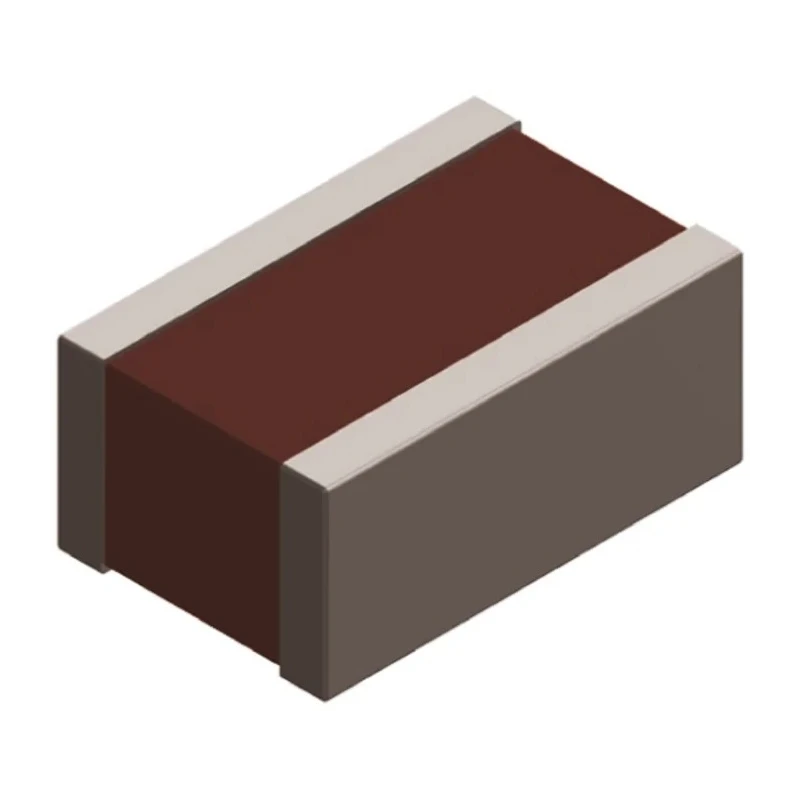

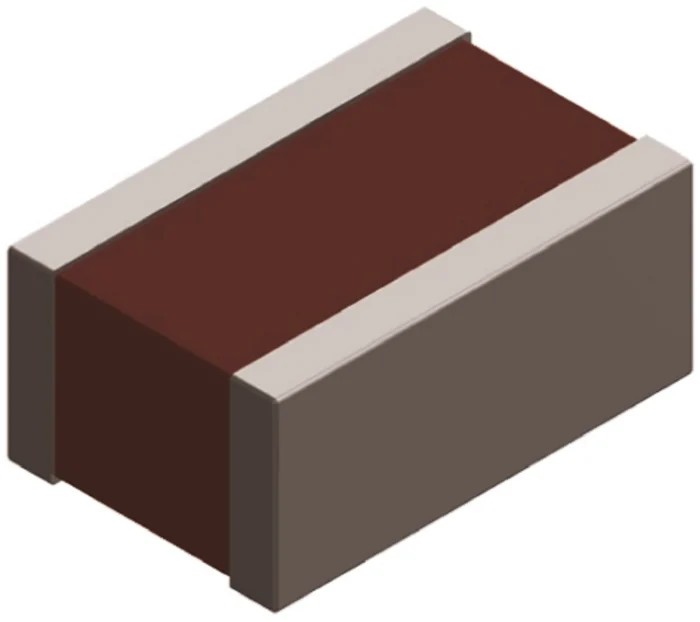

Murata 47 nF 25V DC Multilayer Ceramic Capacitor, ±20 % Tolerance, Surface Mount 0805 Package LLL216R71E473MA01L

Murata LLL216R71E473MA01L is a high-quality multilayer ceramic capacitor featuring a capacitance of 47 nF and a maximum voltage rating of 25V DC. Its surface mount 0805 package facilitates easy integration into printed circuit boards for compact and reliable design solutions. The capacitor employs an X7R dielectric, which offers a stable capacitance value over temperature changes, making it suitable for a wide array of electronic equipment including high-speed microprocessors and digital devices.

This component is constructed using stacked layers to minimize equivalent series inductance (ESL), enhancing its performance in high-frequency applications. It has a tolerance of ±20 %, ensuring close adherence to specified capacitance values within manufacturing variations. The termination design features nickel barriers covered with a layer of plated tin (NiSn), which provides good solderability and reliability for surface mounting.

The capacitor dimensions are compact at 1.25 mm length, 2 mm width, and 0.6 mm height, enabling optimized PCB space utilization. Its operating temperature range from -55°C to +125°C ensures dependable performance across harsh environmental conditions. Compliance with industry standards such as Y2, UL, RoHS, and IEC 60384-14 Class X1, X2, Y2, and Y3 further guarantees quality and safety in demanding applications.

This capacitor features ±20 % tolerance for precise capacitance control. Constructed with X7R dielectric suitable for temperature stable applications. Stacked construction provides low equivalent series inductance. Compact dimensions of 1.25mm length, 2mm width, and 0.6mm height support high-density PCB layouts.

Operating temperature ranges from -55°C to 125°C ensuring robust performance. Termination employs nickel barrier with plated tin (NiSn) surface mount style. Complies with standards including Y2, UL, RoHS, and IEC 60384-14 classes X1, X2, Y2, Y3.

Perfect for use in high-frequency digital equipment and microprocessor decoupling applications.

This multilayer ceramic capacitor is ideal for electronic manufacturing, industrial electronics, telecommunications, and automotive electronics where reliability and performance are critical. Its temperature stable ceramic formulation addresses modern electronic design requirements where tight capacitance characteristics and small form factor are mandatory.
