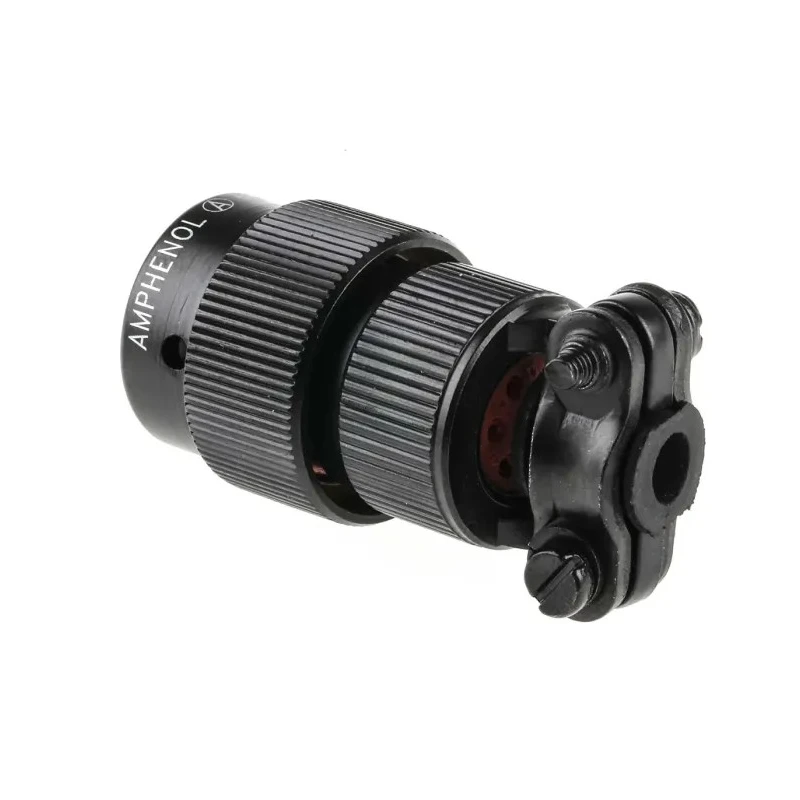

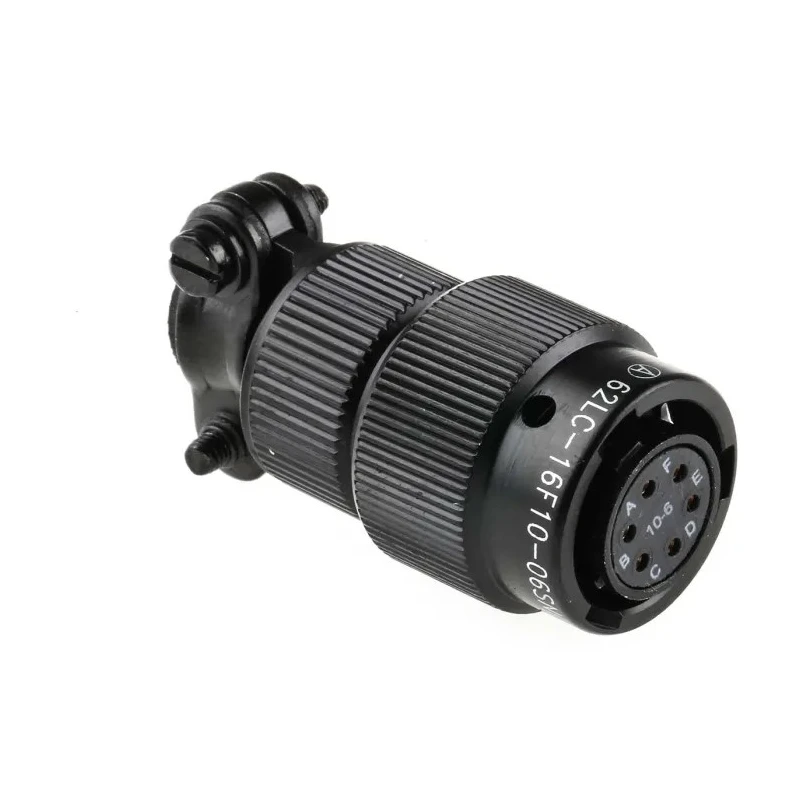

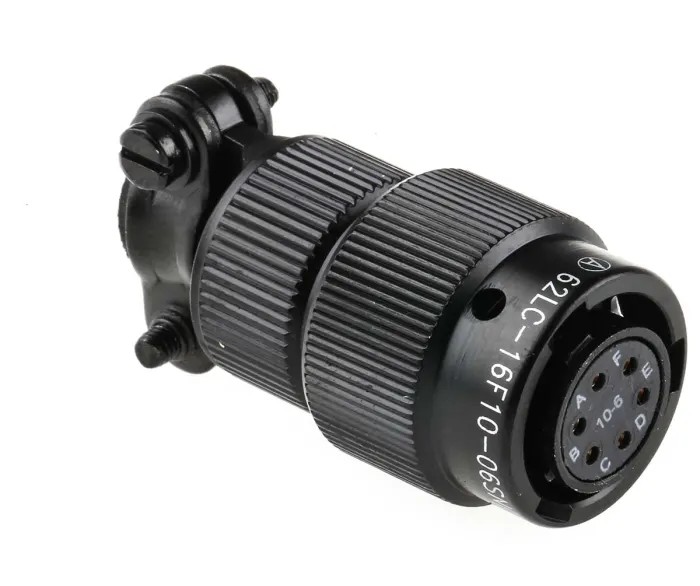

Amphenol Limited Copper Straight 6 Way Cable MIL Spec Circular Connector Male, Female Contacts, Shell 62LC-16F10-06SN(771)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 700V |
| Brand | Amphenol Limited |
| Orientation | Straight |
| Current | 7.5A |
| Model | 62LC-16F10-06SN(771) |
| Mount Type | Cable |
| Housing Material | Aluminium |
| Contact Material | Copper |
| Series | 62LC |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector Gender | Male |
| Shell Size | 10 |
| Mating Type | Bayonet |
| Connector Size | 7.7 mm |
Key Features
- Supports 6 female contacts designed for a cable mount.
- Operates at a voltage of 700V with a current rating of 7.5A.
- Bayonet mating type ensures secure connection.
- Constructed with aluminium housing and copper contacts plated with gold for durability.
- Suitable for operation from -55°C to 125°C temperature range.
- Connector size is 7.7 mm with strain relief for cable protection.
- Termination is by solder type ensuring solid electrical connection.
- Offers straight orientation for connector design and industrial applications.
Product Description
Amphenol Limited 62LC-16F10-06SN(771) Copper Straight 6 Way Cable MIL Spec Circular Connector is a military-grade, high-performance connector designed for demanding industrial and electronic applications. This connector features a straight orientation and is cable-mounted, making it ideal for robust wiring interconnections requiring durability and reliability.
It incorporates six female copper contacts plated with gold to ensure excellent conductivity and corrosion resistance. The aluminium housing offers a lightweight yet sturdy shell size 10 design, providing mechanical protection and strain relief for secure cable installation.
Operating safely at voltages up to 700V and current of 7.5A, it supports industrial, military, and aerospace environments requiring dependable electrical connections across a wide temperature range of -55°C to 125°C. The bayonet mating type guarantees a secure and quick coupling, aligned with MIL-C-26482 and BS9522 F0017 standards.
The connector integrates solder termination buckets facilitating dependable soldering of cables. These cable plugs are fully compatible with backshell accessories, including spin coupling backshells, offering assembly flexibility.
This MIL Spec circular connector finds applications in military-grade cable assemblies, industrial control panels, aerospace wiring harnesses, and other commercial electronics requiring robust circular connector solutions.
Supports 6 female contacts designed for a cable mount. Operates at a voltage of 700V with a current rating of 7.5A. Bayonet mating type ensures secure connection. Constructed with aluminium housing and copper contacts plated with gold for durability.
Suitable for operation from -55°C to 125°C temperature range. Connector size is 7.7 mm with strain relief for cable protection. Termination is by solder type ensuring solid electrical connection. Offers straight orientation for connector design and industrial applications.
Complies with BS9522 F0017 and MIL-C-26482 military standards. Discover the extensive range of Mil Spec Circular Connectors and other industrial-grade connectors on EnvMart for your electronic and electrical component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage of 700V.
The current rating is 7.5A.
This connector features six female contacts.
It uses solder termination for secure electrical connections.
The housing is made of aluminium, and the contacts are copper plated with gold.
It can operate within a temperature range of -55°C to 125°C.
The connector size is 7.7 mm with a shell size of 10.
It features a bayonet mating type for secure connections.
Yes, it complies with MIL-C-26482 and BS9522 F0017 military standards, making it suitable for military applications.
The connector has a straight orientation.
Yes, it is fully compatible with backshell accessories, including spin coupling backshells.
The country of origin for this connector is India.
