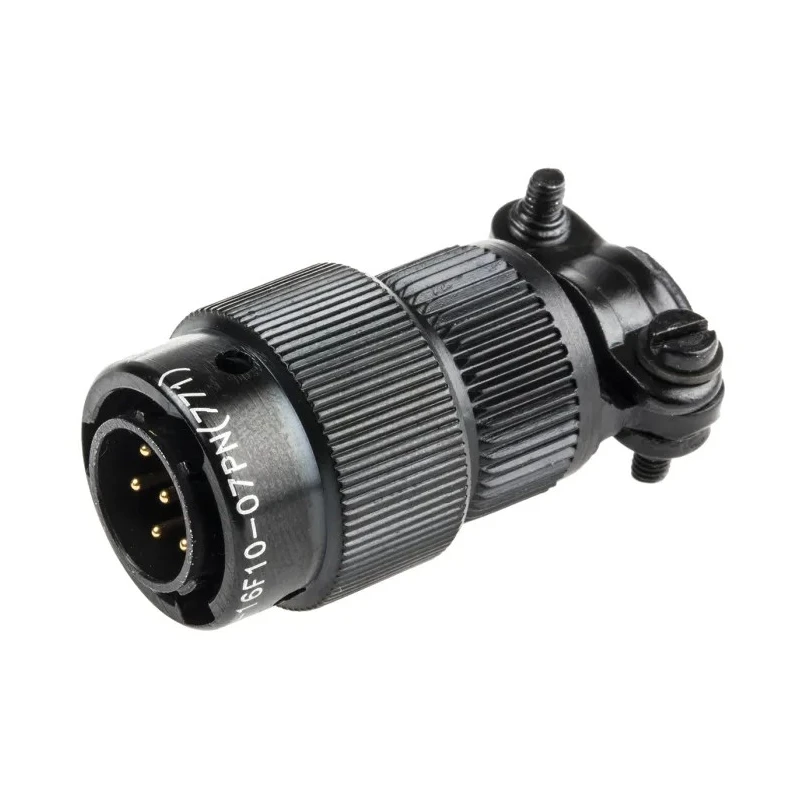

Amphenol Limited MIL Spec Circular Connector Copper Straight 7 Way Cable, Male Contacts, Shell Size 10 62LC-16F10-07PN(771)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 700V |
| Brand | Amphenol Limited |
| Orientation | Straight |
| Current | 7.5A |
| Model | 62LC-16F10-07PN(771) |
| Mount Type | Cable |
| Housing Material | Aluminium |
| Contact Material | Copper |
| Series | 62LC |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shell Size | 10 |
| Mating Type | Bayonet |
| Connector Size | 7.7 mm |
Key Features
- This MIL Spec circular connector features 7 male contacts rated for 7.5A current capacity.
- The connector operates up to 700V with a bayonet mating type for secure attachment.
- Constructed with a durable aluminium housing and copper contacts plated with gold for corrosion resistance.
- Designed for cable mounting with strain relief and straight orientation for ease of use.
- Operates reliably in temperature ranges from -55°C to 125°C.
- Termination is via solder bucket contacts for solid electrical connections.
- Complies with MIL-C-26482 industry standards though no specific approvals are listed.
Product Description
Amphenol Limited 62LC-16F10-07PN(771) Mil Spec Circular Connector is a robust 7 way cable connector designed for demanding industrial and military applications that require reliable power and signal transmission up to 700 volts and 7.5 amps current.
The connector features male contacts with gold plating over copper material to ensure excellent conductivity and corrosion resistance. Housed in an aluminium shell sized at 10, this cable mount connector uses a bayonet mating type for a secure fit and includes strain relief to protect wiring from mechanical stress.
Designed with a straight orientation and a connector size of 7.7 mm, it supports operating temperatures from minus 55 degrees Celsius to 125 degrees Celsius, making it suitable for harsh environments in industrial, manufacturing, aerospace, and defense sectors.
The contacts terminate via solder bucket style, providing strong mechanical and electrical bonds. Although it does not carry a military standard marking, it aligns with MIL-C-26482 and BS9522 F0017 specifications. This connector is part of Amphenol Limited's 62LC series, well-regarded for durability and performance.
Manufactured in India, this product provides a high-quality solution for circular cable connector needs where 7 contact points and high voltage/current ratings are critical. 7 male copper contacts with gold plating. Aluminium shell size 10 housing.
Bayonet mating type ensuring secure locking. Solder bucket termination for reliable connections. Strain relief included for cable protection. Operating temperature range from -55°C to 125°C. Designed for industrial, military, aerospace, and manufacturing applications.
Browse the extensive catalog of Amphenol Limited connectors and related products at EnvMart for trusted industrial electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a current capacity of 7.5A.
It operates up to 700V.
The operating temperature range is from -55°C to 125°C.
It features solder bucket termination for reliable electrical connections.
The housing is made of aluminium, and the contacts are copper with gold plating.
This model features 7 male contacts.
It uses a bayonet mating type for a secure connection.
The shell size is 10.
Yes, strain relief is included to protect the wiring from mechanical stress.
It is manufactured in India.
This connector is part of the 62LC series.
The orientation is straight, facilitating ease of use.
