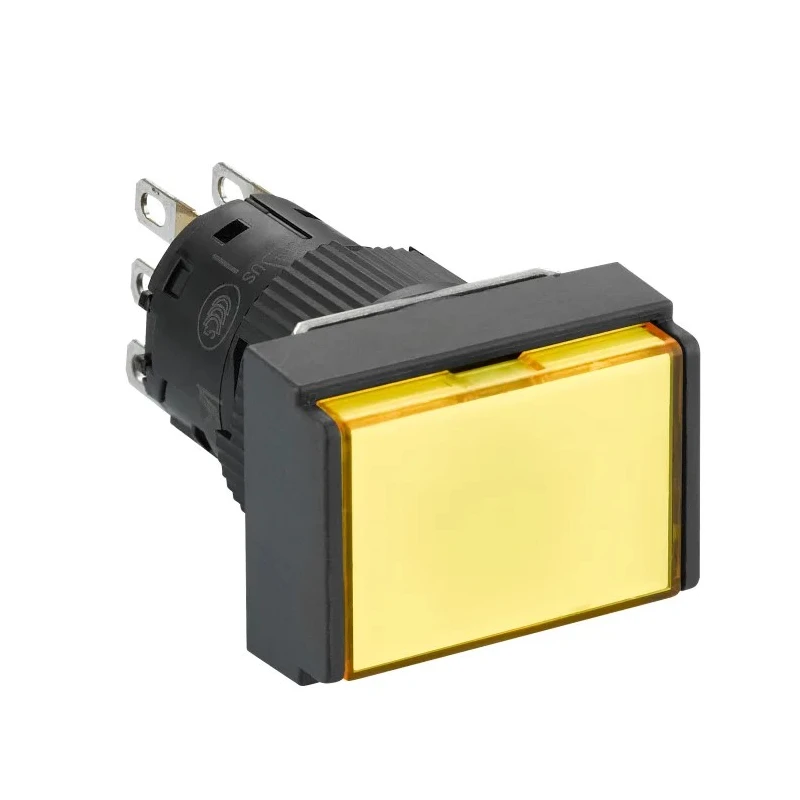

Schneider Electric Harmony XB6E Series Illuminated Push Button Switch, Spring Return, Panel Mount, 16 mm Cutout XB6EDW5B1P

Schneider Electric XB6EDW5B1P Harmony XB6E Series illuminated push button switch is designed for reliable, long-lasting use in electrical control panels and safety stations. It features a spring return actuator with an integrated yellow LED light, mounted through a 16 mm panel cutout, making it ideal for industrial and commercial control applications.

The rectangular yellow actuator is made from durable plastic resistant to liquids and easy to clean, ensuring maintenance simplicity. The switch operates with a Single Pole Double Throw (SPDT) contact configuration rated for 1A current at up to 250V AC or 110V DC, providing flexible control options.

This push button is IP65 rated according to IEC 60529, offering robust protection against dust ingress and water jets from low-pressure washers, suitable for wash-down environments frequently found in food processing and commercial units.

Operating temperature ranges from -25°C to 55°C, making it suitable for varied industrial settings including automotive factories, automation lines, and warehouses. It complies with safety and performance standards like IEC 60947-5-1, UL 508, CSA C22.2 No. 14, and JIS C 852, assuring regulatory conformance.

The switch supports connection via quick connect or solder tag terminals and has a shock resistance of up to 10 gn for 11 ms, ensuring durability under mechanical stress. Its rated mechanical life exceeds 1,000,000 cycles, guaranteeing longevity for demanding applications.

This component is ideal for emergency stop functions, control stations, and automation systems requiring illuminated indicators for enhanced operator interface feedback. Features a yellow rectangular actuator with built-in LED illumination.

Panel cutout size is 16 mm for standardized mounting. SPDT contact configuration with a switch contact current rating of 1A. Provides IP65 rated protection for dust and water resistance. Operates reliably within temperature range of -25°C to 55°C.

Compatible with quick connect and solder tag terminal types. Meets international standards including IEC 60947-5-1 and UL 508. Durable construction designed for 1,000,000 mechanical cycles. Suitable for control panels, automation, and safety station applications.

Yellow LED illumination enhances visibility in control environments. Explore the full range of Schneider Electric push buttons and components available at EnvMart, suitable for industrial, manufacturing, HVAC, and commercial control applications.
