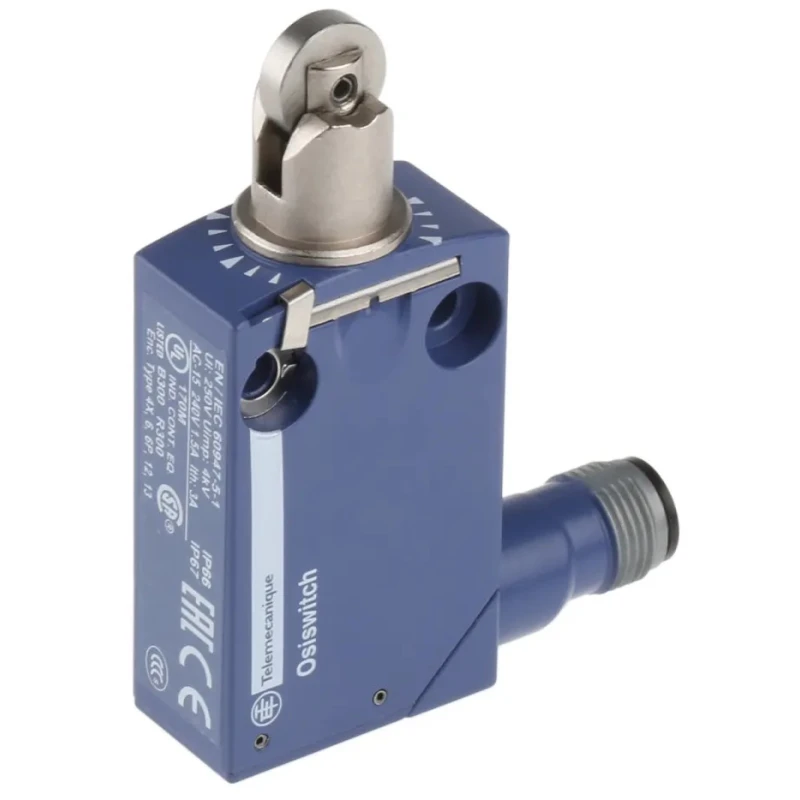

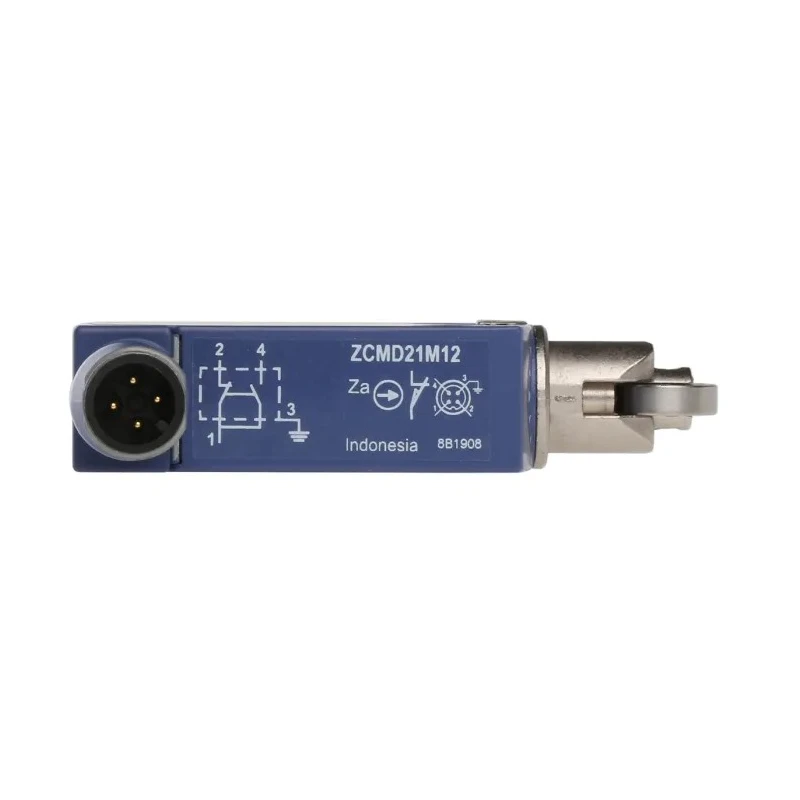

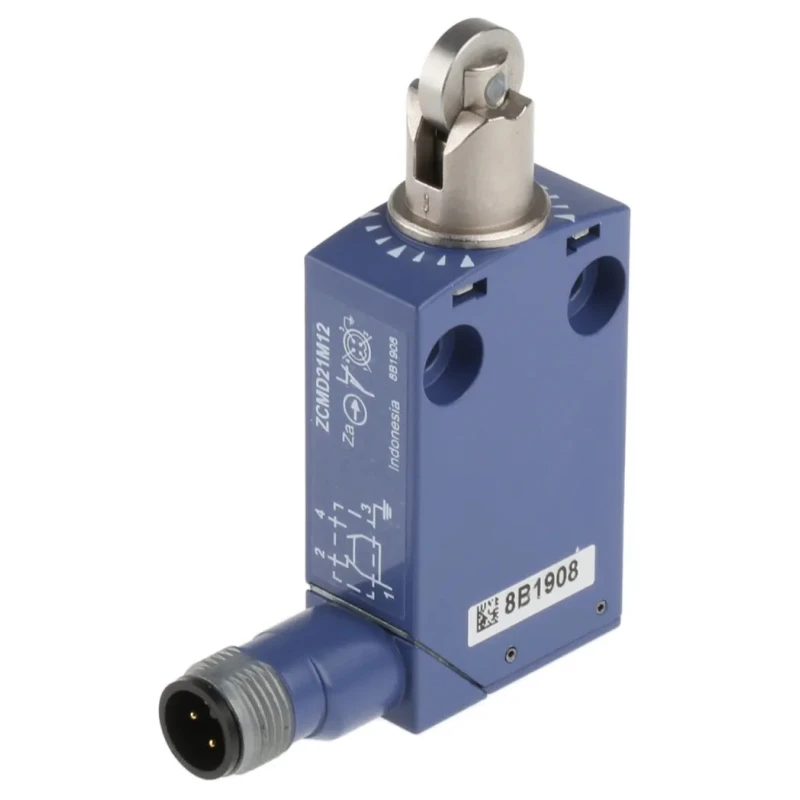

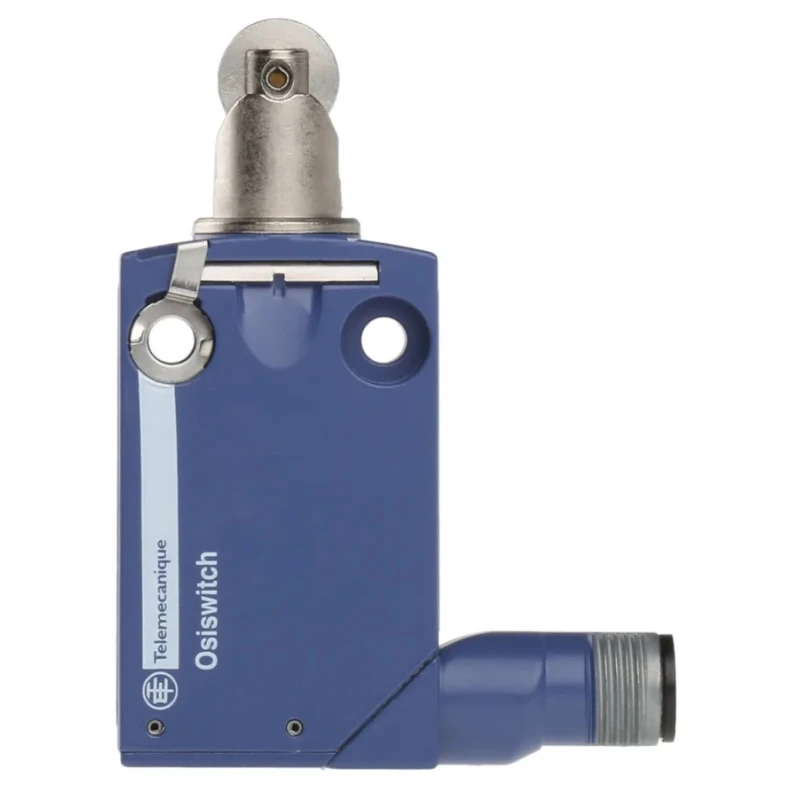

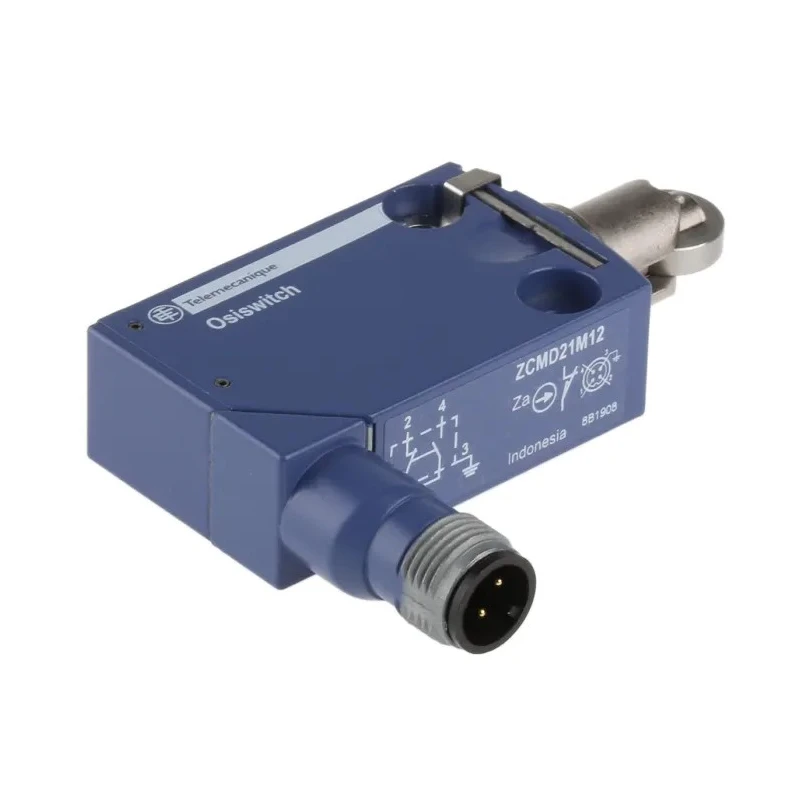

Telemecanique Sensors OsiSense XC Series Roller Plunger Limit Switch, 1 NO/1 NC, IP66, IP69, Zamak Housing, 250V XCMD2102M12
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 50mm |
| Model | XCMD2102M12 |
| Depth | 16mm |
| IP Rating | IP66, IP69 |
| Width | 30mm |
| Housing Material | Zamak |
| Series | OsiSense XC |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Multi Directional |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Roller Plunger |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 1A |
| Terminal type | M12 |
| Standards/Approvals | UL, IEC 60204-1, CCC, CSA, EN 60204-1 |
| Operating Force | 7N |
| Mechanical Life | 10000000Cycles |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Conduit Entry | M12 |
| Metal limitswitch w/steel roller plungerBrand | Telemecanique |
Key Features
- The roller plunger actuator supports fast, repeatable snap-action switching.
- Rated for 250V AC and 1A switching current in low-voltage control circuits.
- Features IP66 and IP69 ingress protection for reliable use in dusty or washdown environments.
- Compact zinc alloy (Zamak) housing ensures durability against mechanical impacts.
- Supports multi-directional mounting to suit various installation requirements.
- Designed for operation from -25°C up to 70°C in industrial ambient conditions.
- Mechanical life expectancy extends to 10 million cycles, minimizing maintenance.
- Includes M12 terminal interface that doubles as conduit entry for streamlined wiring.
Product Description
Telemecanique Sensors XCMD2102M12 OsiSense XC Series Roller Plunger Limit Switch is a compact, industrial-grade limit switch designed for precise control and safety functions in automated systems. This switch features robust snap-action contacts with 1 normally open (NO) and 1 normally closed (NC) contact configuration, capable of handling switching currents up to 1 ampere at 250 volts AC, making it ideal for low-voltage control circuits.
The durable Zamak housing provides strong mechanical protection, suitable for harsh industrial environments. The device is rated IP66 and IP69, ensuring reliable sealing against dust ingress and high-pressure washdowns, which makes it well-suited for washdown or dusty industrial areas.
Equipped with a roller plunger actuator and an M12 terminal interface for both electrical connection and conduit entry, this limit switch enables streamlined installation and wiring. It supports multi-directional mounting, providing installation flexibility for varied applications.
The switch operates reliably within a wide temperature range from -25°C to 70°C and is built to withstand up to 10 million mechanical cycles, significantly reducing maintenance needs in continuous operation.
Certified under multiple international standards including UL, IEC 60204-1, CCC, CSA, and EN 60204-1, it ensures compliance with recognized safety and operational guidelines for machinery integration.
The roller plunger actuator facilitates precise position sensing and repeatable switching performance. Dual contact configuration 1 NO and 1 NC allows flexible control logic setups. Robust zinc alloy (Zamak) housing offers mechanical impact resistance.
IP66 and IP69 ingress protection safeguard against dust and water ingress. M12 terminal provides efficient electrical connectivity and conduit entry. High mechanical life of 10 million cycles ensures longevity in industrial use.
Operates effectively in temperature ranges from -25°C to 70°C. Multi-directional mounting enhances installation versatility. Applications include conveyor sorter end-of-travel detection, gate position monitoring, and packaging machinery.
Meets stringent industrial safety and performance standards.
Ideal for industrial automation tasks involving position detection and control, the Telemecanique Sensors OsiSense XC Series Roller Plunger Limit Switch XCMD2102M12 is a reliable choice in manufacturing, material handling, and safety applications. Explore EnvMart’s comprehensive selection of Limit Switches and industrial sensors for optimized automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a switching current rating of 1A, suitable for low-voltage control circuits.
This model is rated IP66 and IP69, providing protection against dust ingress and high-pressure washdowns.
The dimensions are 50mm in length, 30mm in width, and 16mm in depth.
It operates effectively in a temperature range from -25°C to 70°C.
It features a roller plunger actuator, which supports precise position sensing and repeatable switching performance.
It has a mechanical life expectancy of up to 10 million cycles, minimizing maintenance needs.
This limit switch has a contact configuration of 1 normally open (NO) and 1 normally closed (NC) contact.
It includes an M12 terminal interface that also serves as conduit entry for streamlined wiring.
The housing is made of Zamak, providing strong mechanical protection suitable for harsh environments.
It is certified under multiple international standards, including UL, IEC 60204-1, CCC, CSA, and EN 60204-1.
Yes, it supports multi-directional mounting, offering installation flexibility for various applications.
It is suitable for applications such as conveyor sorter end-of-travel detection, gate position monitoring, and packaging machinery.
