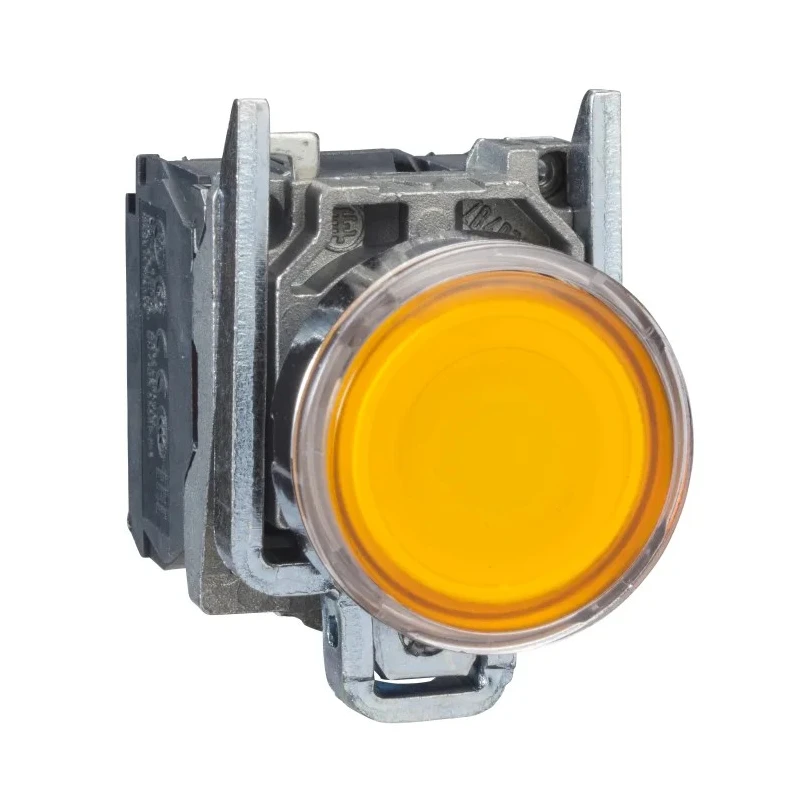

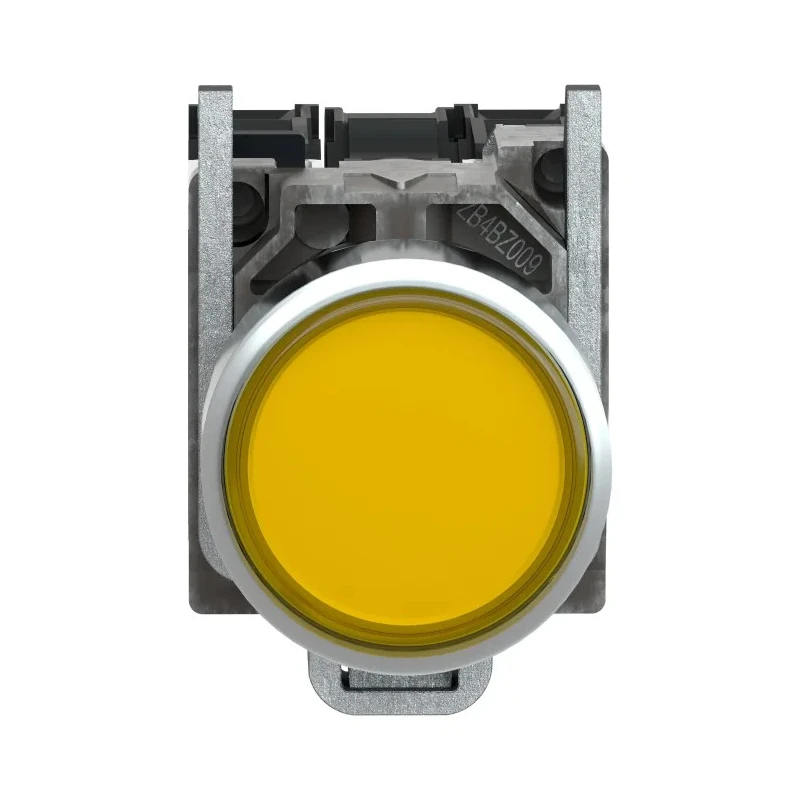

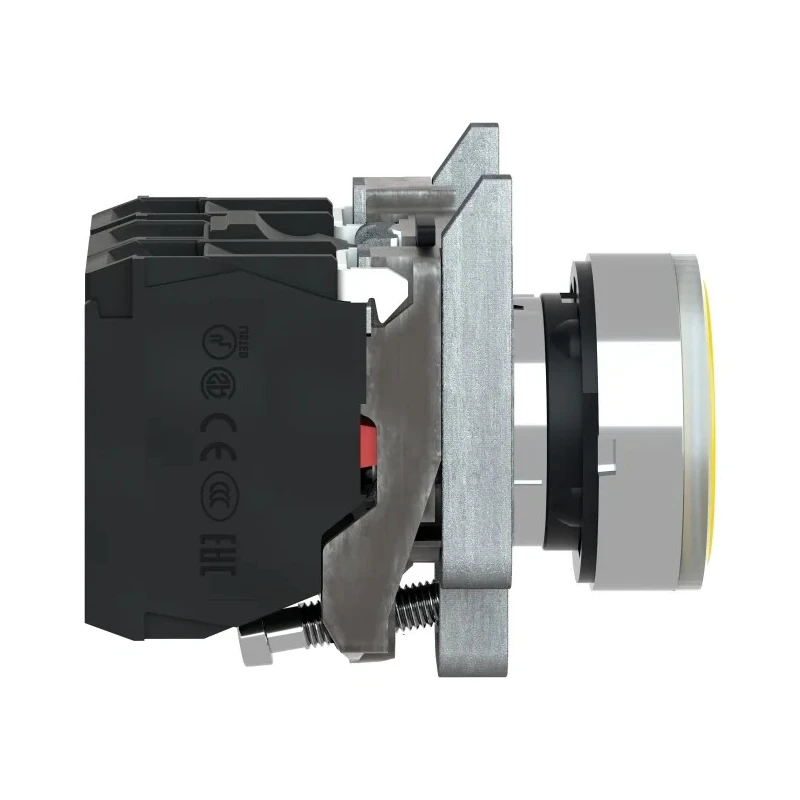

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout XB4BW3565
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Schneider Electric |
| Height | 47mm |
| Length | 101mm |
| Model | XB4BW3565 |
| Width | 30mm |
| Mount Type | Panel |
| Series | Harmony XB4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Switch Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Screw |
| LED Colour | Orange |
| Switch Operation | Spring Return |
| Actuator Colour | Orange |
| Contact DC Voltage | 600V |
| Actuator Style | Round |
| Better World Claim | Repairable by the End User |
| Legend | Blank |
Key Features
- Features an orange illuminated round actuator for easy identification.
- Single Pole Double Throw (SPDT) contact configuration ensures versatile switching capability.
- Complies with multiple international standards including EN/IEC 60947 and UL 508.
- Durable chromium plated metal finish with a Zamak fixing collar for robust installation.
- Operates reliably in temperatures from -25°C to 70°C for various industrial environments.
- Protection ratings include IP67, IP69, and IP69K resisting dust and water ingress.
- Designed for 600V AC/DC contact voltage with screw clamp terminal connections.
- Compact design with a 47mm height, 101mm length, and 30mm width fits restricted spaces.
Product Description
Schneider Electric XB4BW3565 Harmony XB4 Series Illuminated Push Button Switch is engineered for industrial control stations requiring precise and reliable manual operation. It is designed for panel mounting using a 22 mm cutout and features a spring return switch operation with an orange illuminated round actuator that enhances visibility and safety.

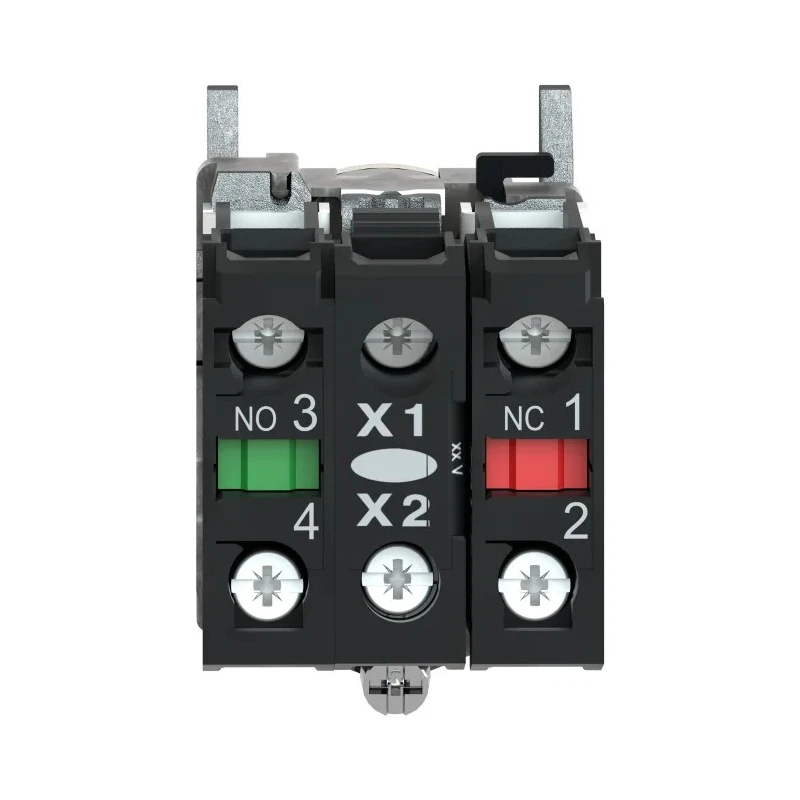

This push button switch utilizes a Single Pole Double Throw (SPDT) contact configuration with 1 Normally Open and 1 Normally Closed switch contacts, providing flexible and dependable control states. The screw clamp terminal type ensures secure wiring connections suitable for industrial automation and control panels.
The product's robust construction includes a chromium plated metal finish with a durable Zamak-based fixing collar, enhancing longevity and ease of maintenance. Its compact dimensions of 47 mm height, 101 mm length, and 30 mm width make it ideal for installations where panel space is limited.
Designed to withstand harsh industrial environments, the switch complies with stringent safety and performance standards including EN/IEC 60947-1, UL 508, CSA C22.2 No 14, and relevant JIS certifications. It offers excellent protection with IP67, IP69, and IP69K ratings, making it resistant to dust, water jets, and steam cleaning, suitable for applications in automotive, manufacturing, warehouse, and automation industries.
It is rated for a contact voltage of 600 V AC/DC and can operate reliably in temperature ranges from -25°C to 70°C, ensuring performance under wide environmental conditions. The switch can withstand vibration up to 5 gn as per IEC 60068-2-6 and offers short circuit protection via a 10 A cartridge fuse conforming to EN/IEC standards.
Better World certified, this product is repairable by the end user, promoting sustainability and reducing environmental impact. Its flush design reduces protrusion from control panels for safety and ergonomic operation.
Orange illuminated round actuator with spring return operation. SPDT switch configuration with 1 NO and 1 NC contact. Chromium plated metal finish and Zamak fixing collar. IP67, IP69, and IP69K protection for harsh environments.
Compliance with EN/IEC 60947, UL 508, CSA C22.2 No 14, and JIS standards. 600 V AC/DC contact voltage with screw clamp terminal. Operating temperature range from -25°C to 70°C. Compact size: 47 mm x 101 mm x 30 mm (H x L x W).
Vibration resistance and short circuit protection. Better World certified and repairable by the end user.
This push button switch is widely used in industrial automation, machinery controls, automotive manufacturing, and commercial warehouses for reliable control panel integration. Discover more Schneider Electric Harmony XB4 Series products and related industrial electrical components at EnvMart for high-quality, durable control solutions.
Explore more products in our Push Button Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration with 1 Normally Open and 1 Normally Closed switch contact, providing versatile switching capabilities.
The maximum operating temperature for this push button switch is 70°C, allowing it to function effectively in various industrial environments.
The dimensions of this unit are 47 mm in height, 101 mm in length, and 30 mm in width, making it suitable for installations in restricted spaces.
This push button switch requires a panel cutout size of 22 mm for proper installation.
It uses screw clamp terminals, ensuring secure wiring connections suitable for industrial applications.
The contact voltage rating for this model is 600V AC/DC, making it compatible with a variety of electrical systems.
This unit has IP67, IP69, and IP69K protection ratings, making it resistant to dust and water ingress, suitable for harsh environments.
The minimum operating temperature for the XB4BW3565 is -25°C, allowing it to operate in colder conditions.
The actuator style is round, and it is colored orange, which enhances visibility and identification in control panels.
This push button switch complies with multiple international standards, including EN/IEC 60947, UL 508, and CSA C22.2 No 14, ensuring safety and performance.
The switch operation type is spring return, which allows for a reliable manual operation in control applications.
Yes, this model is repairable by the end user, promoting sustainability and reducing environmental impact.
