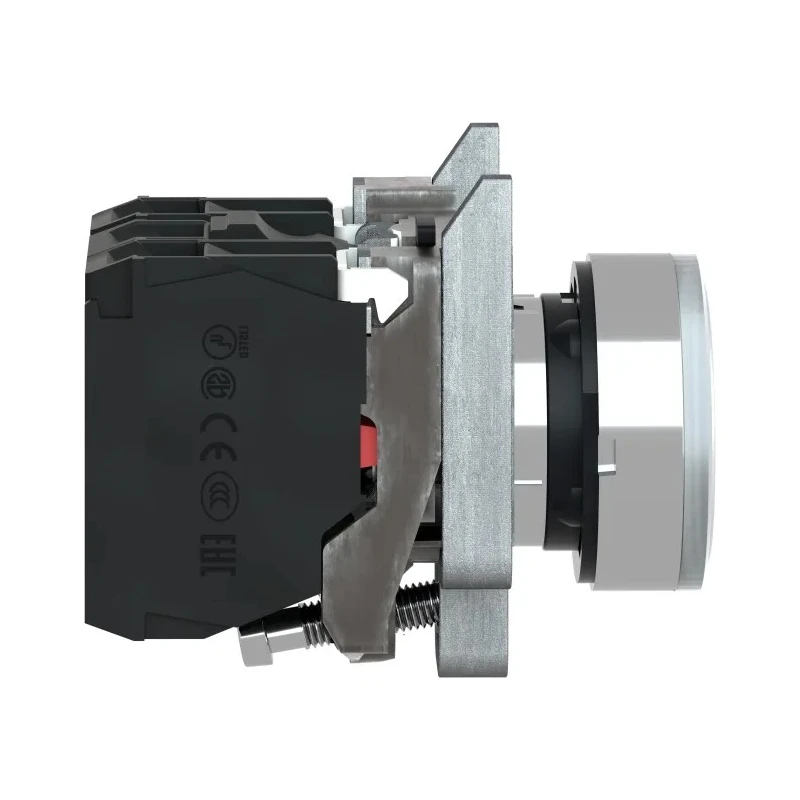

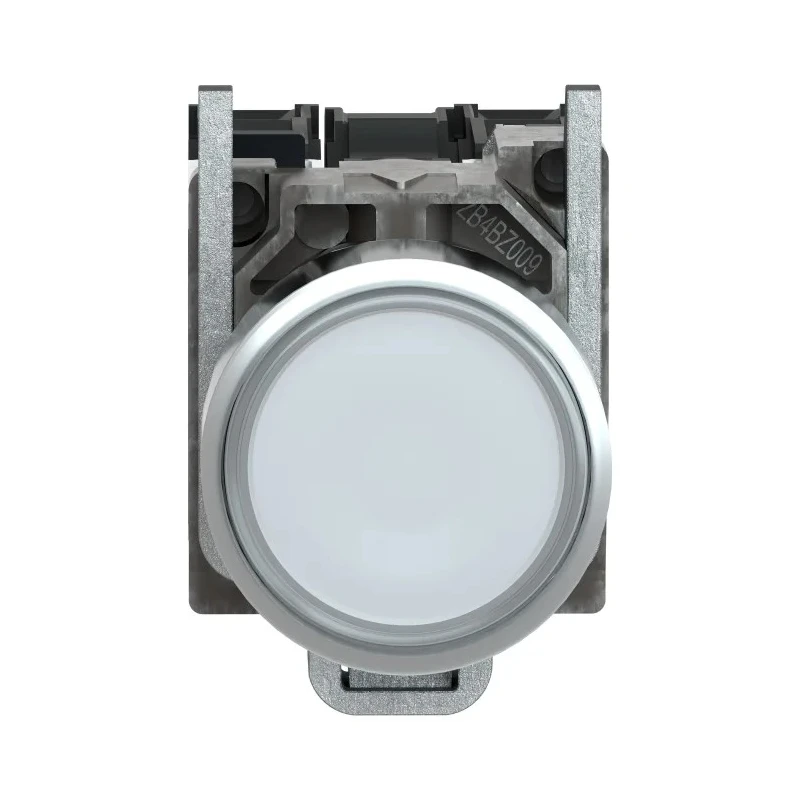

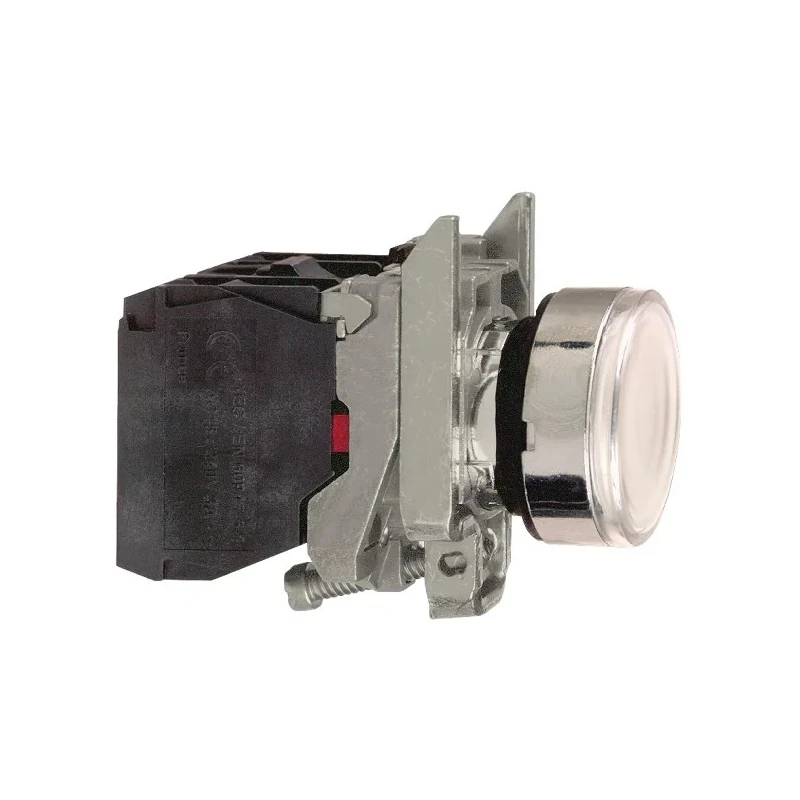

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout XB4BW3165

Schneider Electric XB4BW3165 Harmony XB4 Series Illuminated Push Button Switch is engineered for panel mounting in electrical control and automation systems. The switch is designed for a 22 mm cutout and operates at contact voltages up to 600 V, supporting both AC and DC applications with a SPDT contact configuration.

The white illuminated actuator with a round style provides clear visibility and user-friendly operation. This push button features spring return operation for instant reset after actuation, making it ideal for control stations and emergency stop scenarios in industrial, automotive, commercial, and manufacturing environments.

Built with a chromium plated metal finish and zamak-based fixing collar, the push button offers excellent durability and ease of maintenance. It is rated for operation in harsh environments with temperature tolerance from -25°C to 70°C, and its protection ratings include IP67, IP69, and IP69K, making it resistant to dust, water ingress, high-pressure water jets, steam cleaning, oils, and greases.

The device supports up to 10 A switch contact current and includes short circuit protection via a 10 A cartridge fuse compliant with EN/IEC 60947-5-1, ensuring safety and longevity in demanding applications. Vibration resistance up to 5 gn further improves reliability in factory and automation line settings.

Compliance with multiple international standards - such as CSA C22.2 No 14, UL 508, EN/IEC 60947 series, and JIS standards - assures quality and interoperability across global industrial systems.

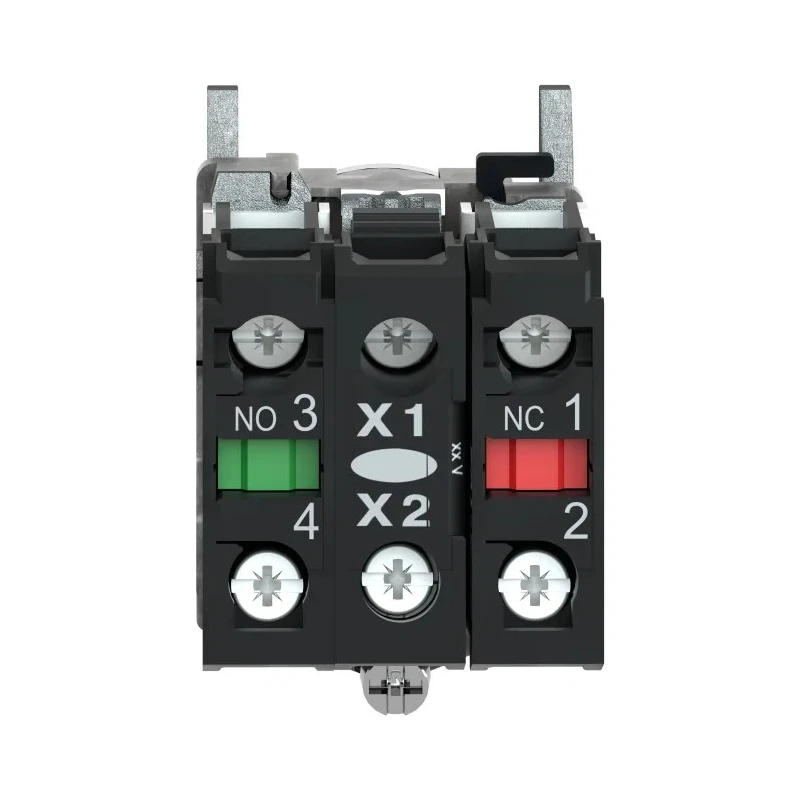

Features a white actuator with round style for clear and easy operation. Single Pole Double Throw (SPDT) contact configuration with screw terminal connections ensures reliable switching. Designed for durability with 1,000,000 mechanical cycles and temperature range from -25°C to 70°C.

Offers IP67, IP69, and IP69K ratings for resistance against dust, water, and high-pressure steam cleaning. Protection against short circuits with a 10 A cartridge fuse complying with EN/IEC standards. Compact 22 mm panel cutout size ideal for space-restricted control panels.

Chromium plated metal finish with a Zamak fixing collar for long-lasting corrosion resistance. Suitable for industrial control stations, emergency stop functions, automation lines, and commercial warehouses. Complies with international standards including EN/IEC 60947 series, UL 508, CSA C22.2 No 14, and JIS C standards.

Choose the Schneider Electric Harmony XB4 Series for reliable, durable, and safe push button switching solutions in electrical control and automation systems. Explore the full range of Push Button Switches and related components within the EnvMart platform.
