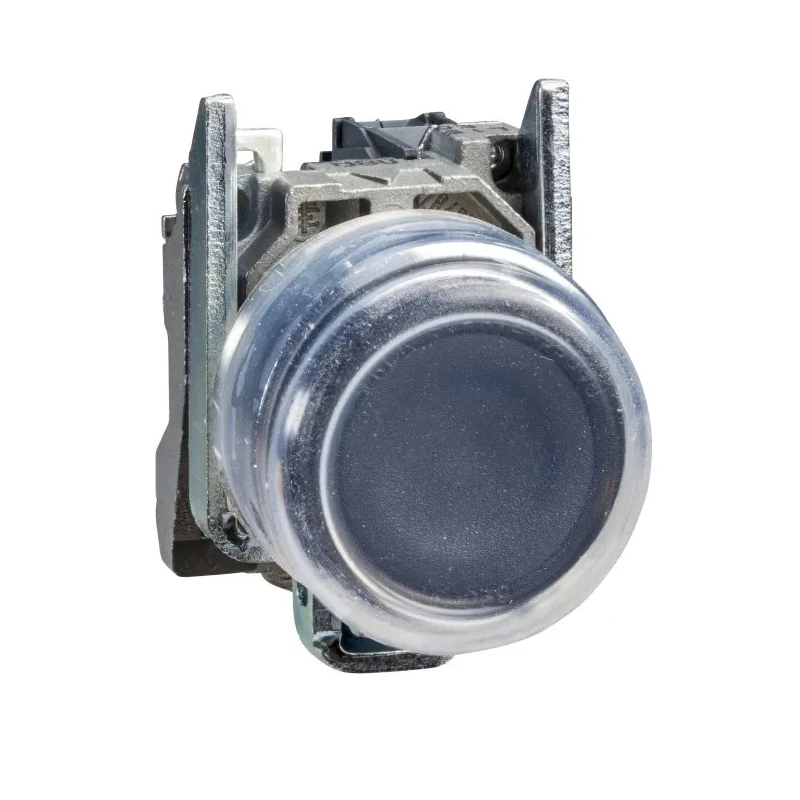

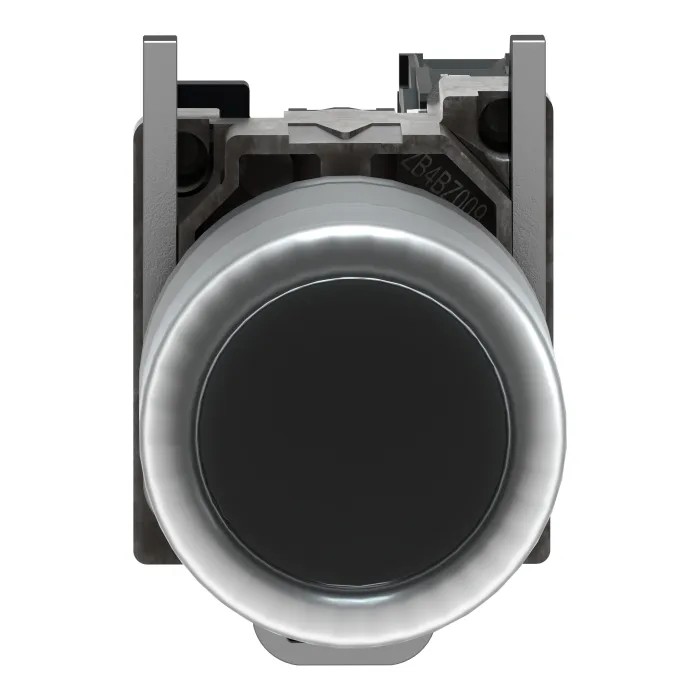

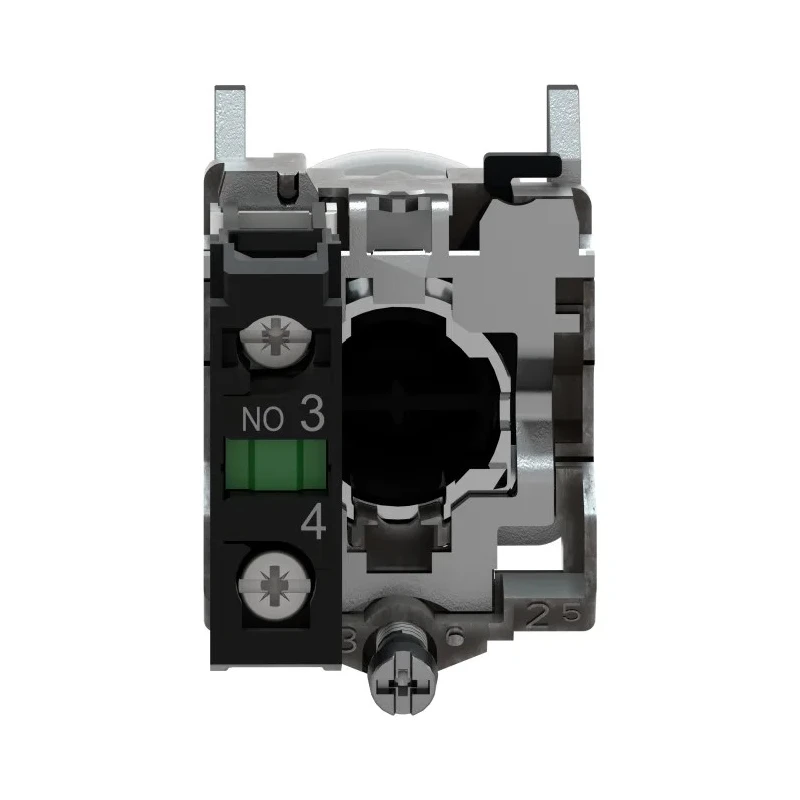

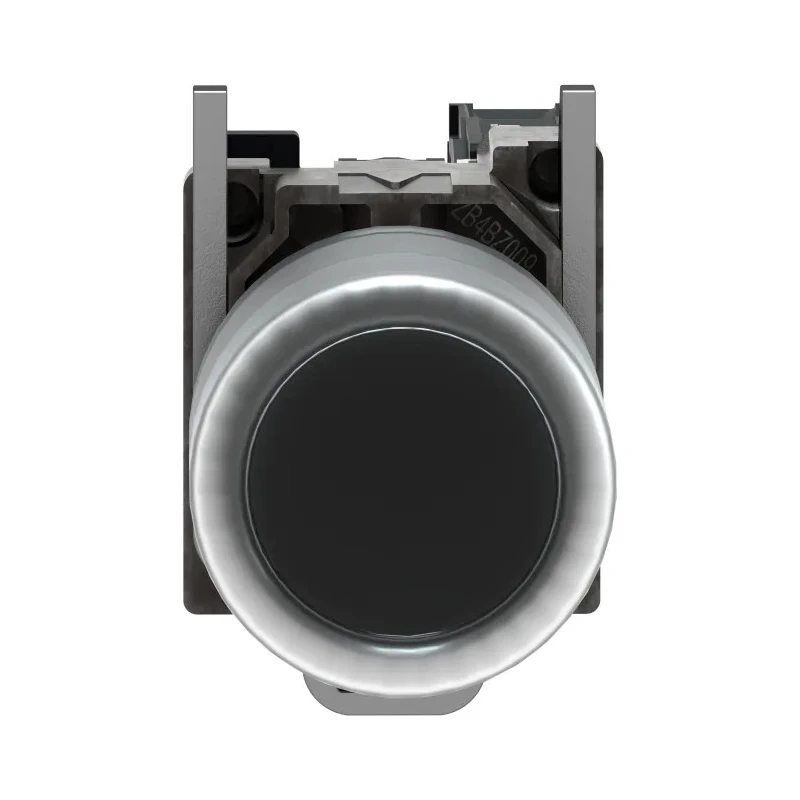

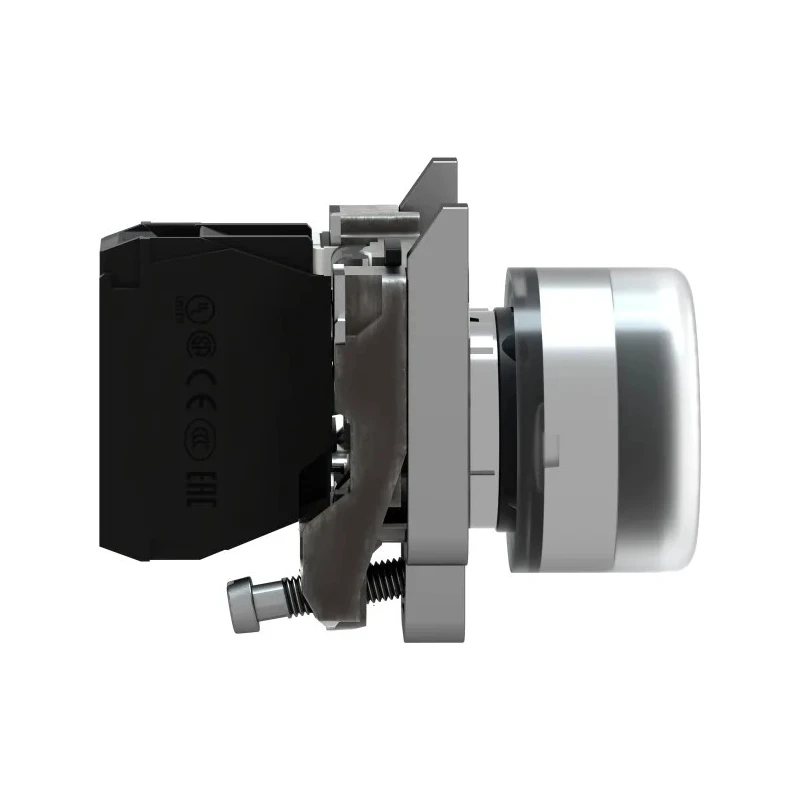

Schneider Electric Harmony XB4 Series Push Button Switch Spring Return Panel Mount 22 mm Cutout SPST Black LED IP66 XB4BP21EX

Schneider Electric XB4BP21EX Harmony XB4 Series push button switch features a spring return mechanism and panel mount design with a 22 mm cutout diameter. It provides a reliable single pole, single throw (SPST) contact configuration with black LED indication and robust IP66 and IP67 ingress protection status for water and dust resistance. The switch is built to withstand tough industrial conditions, offering a compact size suitable for control stations and safety panels where space is limited.

This switch includes a chromium plated metal bezel coupled with a Zamak fixing collar ensuring ease of maintenance and resistance to surface wear. Its high-performance mechanical durability rated at 1,000,000 cycles delivers consistent operational reliability in demanding environments. With a maximum contact current rating of 10A, and capable of handling contact voltages up to 600V for both AC and DC applications, it meets stringent safety and operational requirements.

Operating across a temperature range of -25°C to 70°C, this push button is suited for industrial automation, manufacturing lines, and automotive industry control panels. Protection ratings including IP67 and IP66 ensure robustness against water immersion and high-pressure cleaning processes, alongside resistance to oils and greases as required in harsh operational settings.

The product complies with multiple global standards such as EN/IEC 60947 series and CSA C22.2 No 213, underscoring its quality and safety credentials. Additional features include vibration resistance and short circuit protection via a 10A cartridge fuse, making it an excellent choice for reliable industrial control system applications.

Durable chromium plated bezel with Zamak collar for robust panel mounting. Compact 22 mm diameter for space-saving industrial panel integration. Spring return operation ensures fail-safe momentary control. IP66 and IP67 ingress protection for water and dust resistance.

10A contact current rating supporting industrial electrical loads. High mechanical durability rated for 1,000,000 cycles of operation. Wide operating temperature range from -25°C to 70°C for versatile use. Compliance with EN/IEC and CSA safety standards for assured reliability.

Black LED illumination and round actuator design for clear operator feedback. Ideal for emergency stop and control station applications in automation.

This push button switch is manufactured in France and presented as a new product, meeting the high-quality standards expected from Schneider Electric. It is suitable for use in industrial automation, manufacturing, automotive, and safety panel applications requiring dependable tactile and visual control interfaces. Browse more Schneider Electric Push Button Switches and control devices on EnvMart to find components suited to your technical and industrial needs.
